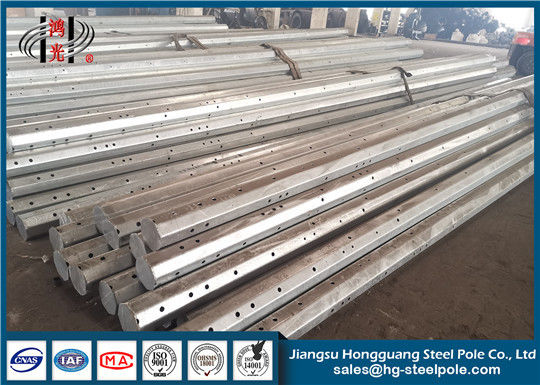

9m 300 Dan Power Transmission Poles , Steel Power Pole For Electrical Industry

9m 300 Dan Power Transmission Poles , Steel Power Pole For Electrical Industry

  • 9m 300 Dan Power Transmission Poles , Steel Power Pole For Electrical Industry
  • 9m 300 Dan Power Transmission Poles , Steel Power Pole For Electrical Industry
9m 300 Dan Power Transmission Poles , Steel Power Pole For Electrical Industry
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP-110KV
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Design Load: 300daN Length: 9m
Material: Q235, Q345 Shape: Octagonal
Appearance Treatment: Hot-dip Galvanized Welding: CO2 Welding Or Submerged Arc Auto Methods
High Light:

transmission line pole

,

electrical power poles



Bangladesh Market 9m 300 Dan Power Transmission Poles for Electrical Industry





Product Description:



Products

  • Bangladesh Market 9m 300 Dan Power Transmission Poles for Electrical Industry

Application

  • Electrical Power Transmission/Distribution Line Project

Voltage Grade

  • 10-110KV

Shape

  • Octagonal conical

Material

  • Hot Roll Steel Q355

Wall thickness

  • 4.0mm

Welding

  • Welding of substation structure complies with AWS D1.1 standard.

  • CO2 welding or submerged arc auto methods

Joint

  • Joint with flange mode.

Galvanization

  • Hot dip galvanization of substation structure is in accordance with American standard ASTM A123.

Painting

  • Bitumen Paint

Life Period

  • More than 25 years, it is according to installing environment

Export Country
  • Philippines , Malaysia , Pakistan , Russia , UK , Australia , Ghana , Angola , Tanzania , Slovakia , New Zealand , Sierra Leone , Bangladesh , Maxico , Nigeria , Republic of the Congo



9m 300 Dan Power Transmission Poles , Steel Power Pole For Electrical Industry 0



Production Process Flow Chat:



Raw material test→ Cutting →Bending →Forming Operation→Seam Welding → Fittings Welding → Welding Inspection(UT/RT) →Pre-assemble for Semi-finished Products →Galvanizing (Measure Zin-Coating) → Straightening→ Pre-assemble for Finished Products → Packing &Delivery



Product Description:



Transmission pole includes suspension pole, tensile pole, strain pole, angle pole which covers voltage 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others ). Generally steel power transmission poles are overlaped insert type and direct burried. In order to protect it from weather and corrosion, steel tubular poles are hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns which could protect steel tubular poles from corrosion as long as 25 years.In addition, our company have become a qualified supplier of SGCC and NGCP. Our company has more than 15 years' design & manufacture experence which enable us to handle volume orders with high quality and low cost.



Standard Accessory:


- Top plate
- Base plate
- Bottom strip
- Standard hole
- Climbing rung
- Anchor bolt
- Bitumen protection
- Painted marking
- Removable ladder
