9m 300 Dan Power Transmission Poles , Steel Power Pole For Electrical Industry

Product Details:

Place of Origin:	China
Brand Name:	JSHG
Certification:	ISO/CNAS/IAF/CA
Model Number:	HG-SP-110KV

Payment & Shipping Terms:

Minimum Order Quantity:	One 40 HQ Container
Price:	negotiation
Packaging Details:	* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time:	2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms:	L/C, T/T or Western Union
Supply Ability:	3,000 Metric Tons per Month

Contact Now

Detailed Product Description

Design Load:	300daN	Length:	9m
Material:	Q235, Q345	Shape:	Octagonal
Appearance Treatment:	Hot-dip Galvanized	Welding:	CO2 Welding Or Submerged Arc Auto Methods
High Light:	transmission line pole , electrical power poles

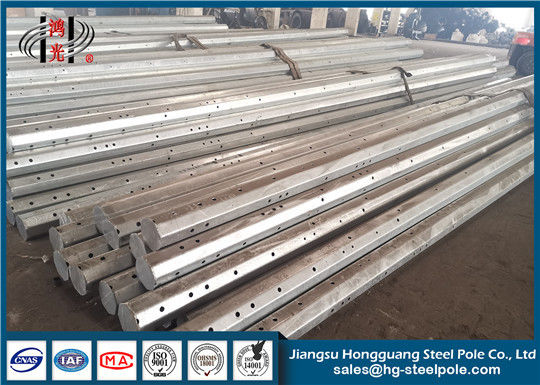

Bangladesh Market 9m 300 Dan Power Transmission Poles for Electrical Industry

Product Description:

Products	Bangladesh Market 9m 300 Dan Power Transmission Poles for Electrical Industry
Application	Electrical Power Transmission/Distribution Line Project
Voltage Grade	10-110KV
Shape	Octagonal conical
Material	Hot Roll Steel Q355
Wall thickness	4.0mm
Welding	Welding of substation structure complies with AWS D1.1 standard. CO2 welding or submerged arc auto methods
Joint	Joint with flange mode.
Galvanization	Hot dip galvanization of substation structure is in accordance with American standard ASTM A123.
Painting	Bitumen Paint
Life Period	More than 25 years, it is according to installing environment
Export Country	Philippines , Malaysia , Pakistan , Russia , UK , Australia , Ghana , Angola , Tanzania , Slovakia , New Zealand , Sierra Leone , Bangladesh , Maxico , Nigeria , Republic of the Congo

Production Process Flow Chat:

Raw material test→ Cutting →Bending →Forming Operation→Seam Welding → Fittings Welding → Welding Inspection(UT/RT) →Pre-assemble for Semi-finished Products →Galvanizing (Measure Zin-Coating) → Straightening→ Pre-assemble for Finished Products → Packing &Delivery

Product Description:

Transmission pole includes suspension pole, tensile pole, strain pole, angle pole which covers voltage 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others ). Generally steel power transmission poles are overlaped insert type and direct burried. In order to protect it from weather and corrosion, steel tubular poles are hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns which could protect steel tubular poles from corrosion as long as 25 years.In addition, our company have become a qualified supplier of SGCC and NGCP. Our company has more than 15 years' design & manufacture experence which enable us to handle volume orders with high quality and low cost.
