Electric Power Transmission Steel Utility Poles Custom Color For 3mm Thickness
  • Electric Power Transmission Steel Utility Poles Custom Color For 3mm Thickness
  • Electric Power Transmission Steel Utility Poles Custom Color For 3mm Thickness

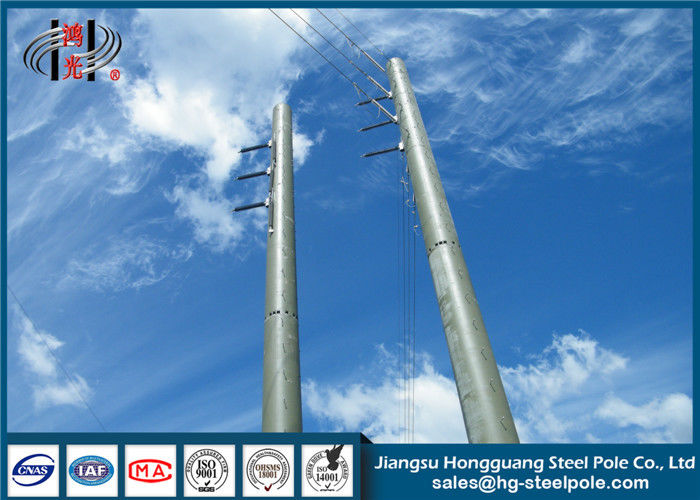

Electric Power Transmission Steel Utility Poles Custom Color For 3mm Thickness

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Voltage Grade:
10~500KV Steel Pole (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV Or Others )
Application:
Distribution Line Project
Shape:
Round / Polygonal / Conical / Tubular
Name:
Steel Utility Poles
Painting:
According To Clients' Request
Connection Structure:
Overlap / Flange Connection
Joint Of Poles:
Insert Mode,innerflange Mode,face To Face Joint Mode
Wall Thickness:
2.3-18mm
High Light:

transmission line pole

,

electrical transmission poles

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Electric Power Transmission Poles Steel Utility Poles Custom Color For 3mm Thickness

Product Description:

Our steel pole, steel poles , steel power poles , power distribution equipment , electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,street lamp poles ,solar street lamps steel poles ,high mast lamp poles,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product , street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm . Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating , final quality check according by client required.



Product Specification:

Products
  • Electric Power Transmission Poles Steel Utility Poles Custom Color For 3mm Thickness
Application
  • Power transmission and distribution Line
Voltage Grade
  • 10~500KV
Once Forming
  • 16m Once forming without joint
Wall Thickness



  • 2.3-18mm
Shape
  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Joint
  • Joint with insert mode, flange mode.

Painting

  • According to clients' request

Connection structure

  • overlap / flange connection



Product Advantages:

1). Short Construction Cycle
Our factory has a professional technical and production team to ensure the completion time of the product.
2). Low Overall Cost
Our factory and raw material factory have long-term cooperation to ensure low cost of products.
3). Weather Resistance
The quality of our products is high quality and resistant to bad weather.
4). Provide Professional Design by Our Experienced R&D Engineers
5). Rich Exporting Experience
6). ODM, OEM Acceptable
7). Technical Support by E-mail



Application Scope:

Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

Packaging&Shipping:

* Covered by Plastic Wrap or Mat or according to client's requests.
* The Loading Pcs of Each Container could be calculated according to client's specification and data.

Electric Power Transmission Steel Utility Poles Custom Color For 3mm Thickness 0


Features:

1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 25mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 110KV to 220kv

9. Easy install and maintenance.
