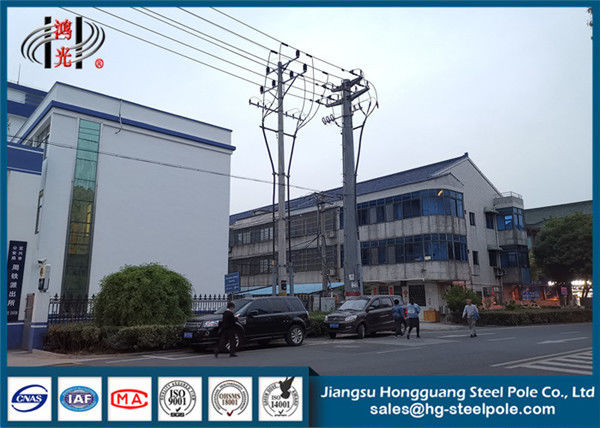

9m 30ft Power Transmission Poles Bitumen Painted 69kv Electric Steel Pole
  • 9m 30ft Power Transmission Poles Bitumen Painted 69kv Electric Steel Pole
  • 9m 30ft Power Transmission Poles Bitumen Painted 69kv Electric Steel Pole

9m 30ft Power Transmission Poles Bitumen Painted 69kv Electric Steel Pole

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Voltage Grade:
10~500KV Steel Pole (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV Or Others )
Application:
Distribution Line Project
Name:
9m 30ft Power Transmission Poles Bitumen Painted 69kv
Welding:
According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Painting:
According To Clients' Request
Connection Structure:
Overlap / Flange Connection
Joint Of Poles:
Insert Mode,innerflange Mode,face To Face Joint Mode
Wall Thickness:
2.3-18mm
High Light:

transmission line pole

,

electrical transmission poles

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

9m 30ft Power Transmission Poles Hot Dip Galvanized and Bitumen Painted 69kv Electric Steel Pole

Product Description:

The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :

- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.



Product Specification:

Products
  • 9m 30ft Power Transmission Poles Hot Dip Galvanized and Bitumen Painted 69kv Electric Steel Pole
Application
  • Power transmission and distribution Line
Voltage Grade
  • 10~500KV
Once Forming
  • 16m Once forming without joint
Wall Thickness



  • 2.3-18mm
Shape
  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Joint
  • Joint with insert mode, flange mode.

Painting

  • According to clients' request

Connection structure

  • overlap / flange connection



Product Advantages:

1. Short Construction Cycle
2. Low Overall Cost
3. Easy Installation and Maintenance
4. Weather Resistance
5. Anti-corrosion
6. More than 15 Years Design & Manufacture Experience
7. Capable to Handle Volume Orders
8. Provide Professional Design by Our Experienced R&D Engineers
9. Rich Exporting Experience
10. ODM, OEM Acceptable
11. Technical Support by E-mail

Application Scope:

Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

Packaging&Shipping:

* Covered by Plastic Wrap or Mat or according to client's requests.
* The Loading Pcs of Each Container could be calculated according to client's specification and data.

 9m 30ft Power Transmission Poles Bitumen Painted 69kv Electric Steel Pole 0

Manufacturing:

Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.



Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.

After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
