NEA Standard Conical Hot Dip Galvanized Steel Power Transmission Poles 10 KV to 220 KV

NEA Standard Conical Hot Dip Galvanized Steel Power Transmission Poles 10 KV to 220 KV

    • NEA Standard Conical Hot Dip Galvanized Steel Power Transmission Poles 10 KV to 220 KV
    • NEA Standard Conical Hot Dip Galvanized Steel Power Transmission Poles 10 KV to 220 KV
    • NEA Standard Conical Hot Dip Galvanized Steel Power Transmission Poles 10 KV to 220 KV
    • NEA Standard Conical Hot Dip Galvanized Steel Power Transmission Poles 10 KV to 220 KV
  • NEA Standard Conical Hot Dip Galvanized Steel Power Transmission Poles 10 KV to 220 KV

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Application: Electrical Power Transmission And Distribution Line Once Forming: 16m Once Forming Without Joint
    Material: Q235, Q345, Gr50, Gr65,SS400,S355 Shape: Round / Polygonal / Conical / Tubular / Tapered
    Appearance Treatment: Hot-dip Galvanized Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods

    Conical Hot Dip Galvanized Steel Power Transmission Poles 10 KV to 220 KV



     Poles Description:





    NEA STANDARD FOR STEEL POWER TRANSMISSION POLES
    Height (ft) 25 30 35 40
    Top Diameter (mm) 120 127 127 127
    Butt Diameter (mm) 152 226 248 317
    Thickness (mm) 2.5 3 3 3
    Design Load (kg.) 300 500 500 500
    Yield Stress (MPA) 345 345 345 345
    Zinc Coating (microns) 86 86 86 86

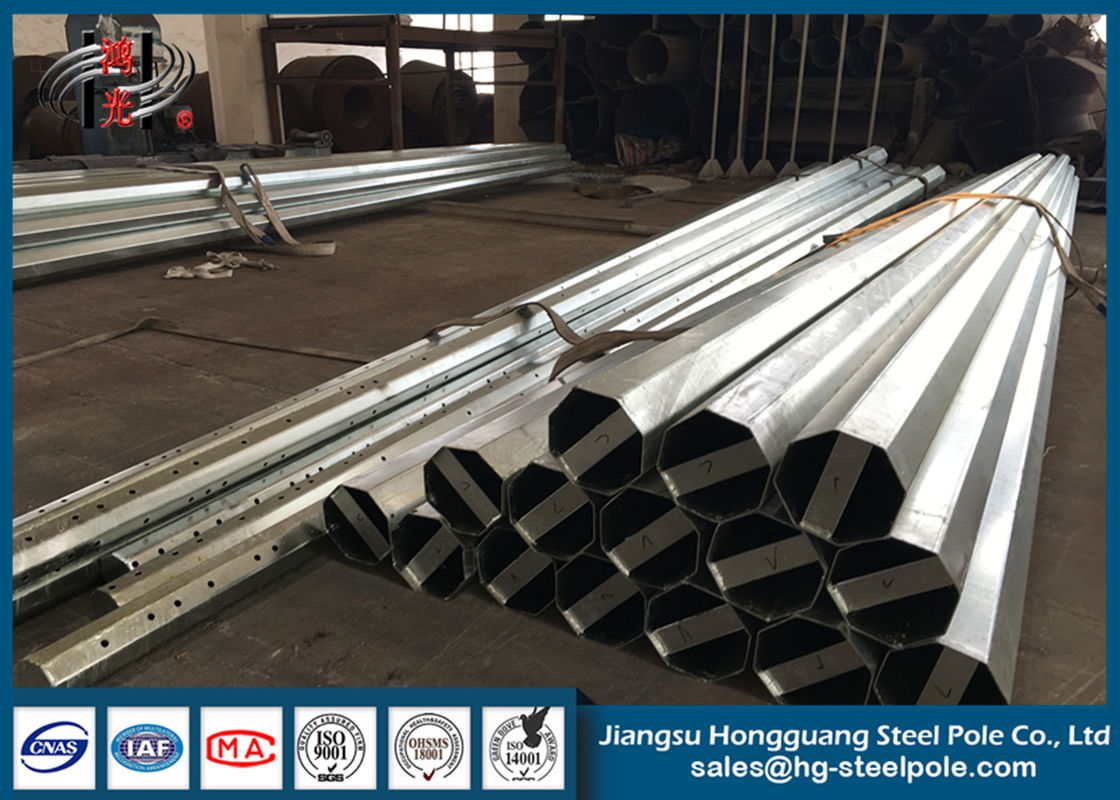

    Our steel poles, being manufactured from steel sheet that has been subjected to hydraulic pression and longitudinal welding, has a tapered tubular structure with a multilateral cross section. To achieve a proper height, steel poles can be assembled by insert mode or flange mode at the installation site.



    NEA Standard Conical Hot Dip Galvanized Steel Power Transmission Poles 10 KV to 220 KV



    Raw Material :



    All our raw material are purchased from famous STEEL MILL in China to ensure the quality which provide MILL INSPECTION CERTIFICATE with official stamp and signiture. In addition, our QC staff make material test and metal identification test before manufacturing.



    NEA Standard Conical Hot Dip Galvanized Steel Power Transmission Poles 10 KV to 220 KV

    TEST



    To make sure the steel pole quality, we have professional to inspect the poles before delivery. We have Lab Test, Load Test, Steel Test, Galvanization Test, etc.



    Our Customers:



    NEA Standard Conical Hot Dip Galvanized Steel Power Transmission Poles 10 KV to 220 KV



    Company Profile



    Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various steel poles. We manufacture a variety of products like transmission poles and substation structures for the power transmission industry; high masts and street lamp poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; microwave communication poles for the telecommunication industry; aero-generator supporting poles and street lamp poles.



    NEA Standard Conical Hot Dip Galvanized Steel Power Transmission Poles 10 KV to 220 KV
