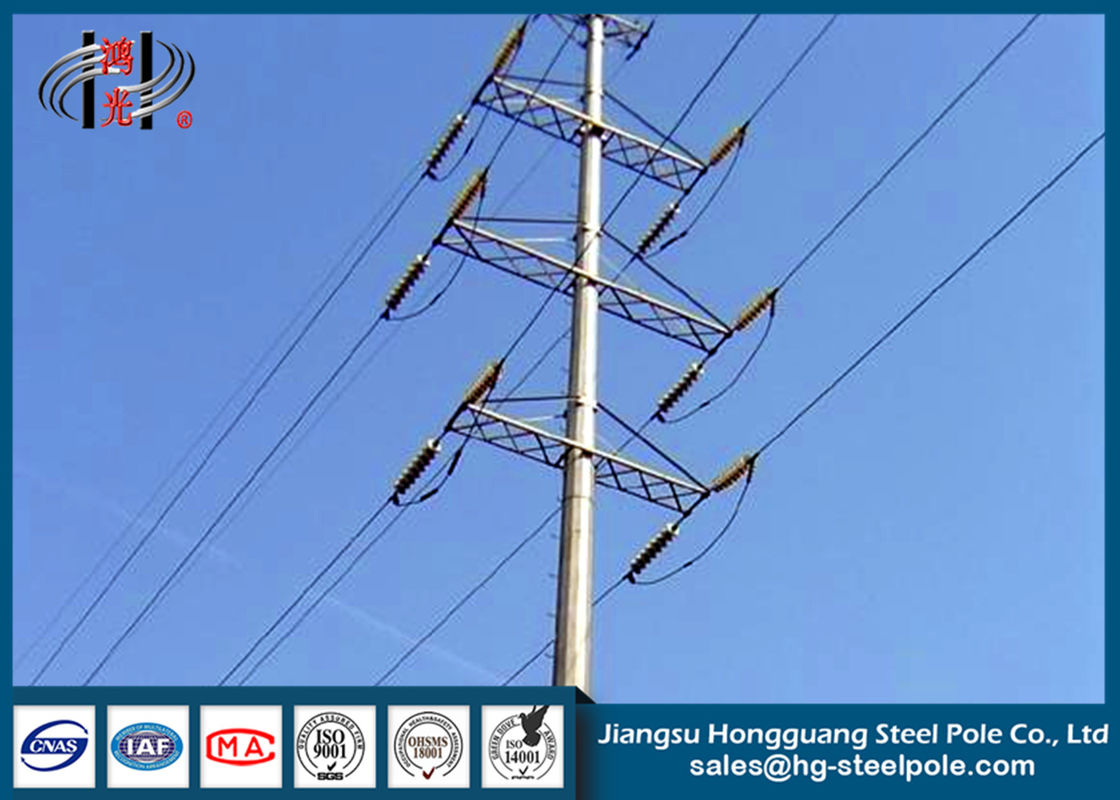

110 KV Octagonal Power Transmission Poles with Hot dip Galvanization

110 KV Octagonal Power Transmission Poles with Hot dip Galvanization

    • 110 KV Octagonal Power Transmission Poles with Hot dip Galvanization
    • 110 KV Octagonal Power Transmission Poles with Hot dip Galvanization
  • 110 KV Octagonal Power Transmission Poles with Hot dip Galvanization

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP-110KV

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Product Name: Galvanized Electrical Power / Steel Tubular Pole Tower Application: Electrical Power Transmission And Distribution Line
    Voltage Grade: 110KV Material: Hot Roll Steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, Etc.
    Shape: Round / Polygonal / Conical / Tubular / Tapered Appearance Treatment: Hot-dip Galvanized / Painting
    Connection Structure: Overlap / Flange Connection Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods


    110 KV Octagonal Power Transmission Poles with Hot dip Galvanization


    Specifications:

    Application

    Electrical Power transmission and distribution line

    Type

    Suspension Pole, Tensile Pole, Strain Pole , Angle Pole, Dead-end Pole, etc.

    Voltage
    Grade

    10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV,
    230KV, 330KV, 500KV or Others )

    Shape

    Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular,
    Tapered

    Material

    Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37,
    ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel
     material

    Wall thickness

    2~30mm

    Once Forming

    16m Once forming without joint

    Welding

    Welding complies with AWS D1.1 standard.
    CO2 welding or submerged arc auto methods
    No fissure, scar, overlap, layer or other defects
    Internal and external welding makes the pole more beautiful in shape
    If customers need any other requirements of welding, we also can make
    adjustment ad your request

    Joint

    Joint with insert mode, flange mode.

    Base plate

    Base plate is square / round / Polygon with slotted holes for anchor bolt and dimension
     as per client’s requirement.

    Galvanization

    Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and
    American standard ASTM A123.

    Painting

    According to clients' request

    Life Period

    More than 25 years, it is according to installing environment

    Advantages

    Short Construction Cycle
    Less Land Occupation
    Low Overall Cost
    Easy Installation and Maintenance
    Weather Resistance
    Anti-corrosion
    ODM & OEM are available
    Capable to Handle Volume Orders
    Provide Professional Design by Our Experienced R&D Engineers





    Description:110 KV Octagonal Power Transmission Poles with Hot dip Galvanization
    Hot Dip Galvanized Electrical Power Steel Poles plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel poles, our company design and produce many kinds of steel poles for the power transmission and distribution system. Besides, our electrical steel poles have been tested and approved by the Transmission Pole Tower Testing Station,.

    Our steel poles, being manufactured from steel sheet that has been subjected to hydraulic pression and longitudinal welding, has a tapered tubular structure with a multilateral cross section. To achieve a proper height, steel poles can be assembled by insert mode or flange mode at the installation site.


    The hot dip galvanization technique could protect steel pole from corrosion for as long as 50 years
    As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.


    Installation Site


     110 KV Octagonal Power Transmission Poles with Hot dip Galvanization
    Engineering and Design Management

    110 KV Octagonal Power Transmission Poles with Hot dip Galvanization


    Disign Software
    “Design and technology,professional and common, software and hardware” is JSHG‘s design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
    In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.

    Since the establishment, JSHG have put forward thousands of conical pole design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.
    Production Process Flow Chart


    Quality Control Management
    JSHG has passed the ISO9001 quality management system. Besides, it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon
    and sulfur microcomputer analyzer etc.
    Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.


    Terms and Conditions
    1.  Price Term: EXW, FOB, CFR or CIF.

    • The price includes pole shaft, base plate, cross arm and anchor bolt.
    • Shipping seaport: Shanghai Seaport.
    • Please provide drawings if you have so that we can calculate the accurate price for you.
    • We also provide design according to your requests, if you don't have drawings.

     2.  MOQ: One 40FT Container.
     3.  Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
     4.  Delivery Time:  2 weeks per container after PO/drawing/prepayment confirmed.
     5.  Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients’ requirement.



    Our Services

    • Reply within 24 Working Hours
    • Factory Direct Sale
    • More than 15 Years Design & Manufacture Experience
    • Capable to Handle Volume Orders
    • High-Quality and Low-Price Products
    • Provide Professional Design by Our Experienced R&D Engineers
    • Rich Exporting Experience
    • ODM, OEM Acceptable
    • Technical Support by E-mail
    • Calling service


    Company Profile
    JIANGSU HONGGUANG STEEL POLE CO., LTD.
    With over 15 Years of Experience/ Capable to Handle Volume Orders
    Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
    Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various steel structures. We manufacture a variety of products like Electrical Poles and Substation Structures for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telecommunication Monopole Towers for the telecommunication industry; Traffic Poles & Camera Poles & Advertising Structures for transportation Industry and Advertising Industry.
