40Ft Power Transmission Poles Hot Dip Galvanised Steel Pole Q345 Octagonal Shape
  • 40Ft Power Transmission Poles Hot Dip Galvanised Steel Pole Q345 Octagonal Shape
  • 40Ft Power Transmission Poles Hot Dip Galvanised Steel Pole Q345 Octagonal Shape

40Ft Power Transmission Poles Hot Dip Galvanised Steel Pole Q345 Octagonal Shape

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-110KV
Product Details
Application:
69KV Electrical Power Transmission Line
Shape:
Octagonal
Material:
Q345
Design Load:
500kg
Appearance Treatment:
Hot-dip Galvanized
Welding:
According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
High Light:

transmission line pole

,

electrical transmission poles

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description


Philippines Market 40Ft Electrical Power Transmission Poles Hot Dip Galvanized Q345





Product Detial:





National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT



Height(ft) Thickness(mm) Butt Diameter(mm) Top Diameter(mm) Design Load(kg) Yield Stress(MPA) Zinc Coating(microns)
25 2.5 152 120 300 345 86
30 3.0 226 127 500 345 86
35 3.0 248 127 500 345 86
40 3.0 317 127 500 345 86



40FT Details



Type Direct Burial Type
Shape of pole Octagonal (8 sides)
Diameter 127mm / 317mm
Material Q345 equivalent to Grade 50
Thickness 3.0mm
Design Load 500KGS
Welding Welding complies with CSA and AWS, AWS D1.1 standard.
The welders have got corresponding certificate after testing and inspection.
Standard NEA
Galvanizing Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123.





Product Description:



Products

  • Philippines Market 40Ft Electrical Power Transmission Poles Hot Dip Galvanized Q345

Application

  • Electrical Power transmission and distribution line

Standrad

  • Philippines NEA Standard

Shape

  • Conical, Octagonal

Material

  • Applied to the material of general-purpose steel GB/T1591-2008, Q345 used in China.

    Q345 equipment to ASTM GR50. Min Yield Stress 345 Mpa.



Wall thickness

  • 2.5-3.0 mm

Type

  • Direct Buried

Welding

  • Welding of substation structure complies with AWS D1.1 standard. CO2 welding or submerged arc auto methods

  • No fissure, scar, overlap, layer or other defects. Internal and external welding makes structure more beautiful in shape

Life Period

  • More than 25 years, it is according to installing environment

Advantages

  • Less Land Occupation
  • Low Overall Cost
  • Easy Installation and Maintenance
  • Anti-corrosion
  • ODM & OEM are available
  • Provide Professional Design by Our Experienced R&D Engineers

  • Capable to Handle Volume Orders



Material Test:


1. All of our materials are purchased from famous mill factory to assure the quality with mill certificate issued by the mill factory before unloading the material in our factory;


2. Before putting into production, all the materials must pass the chemical and physical analysis to make sure that they have met the requested strength and components.





40Ft Power Transmission Poles Hot Dip Galvanised Steel Pole Q345 Octagonal Shape 0





Packaging&Shipping:

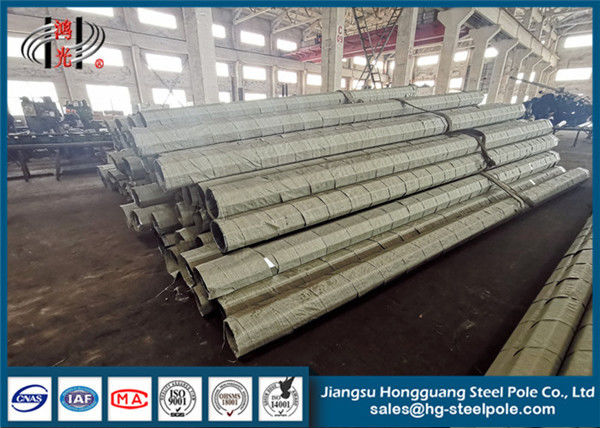

Our poles as normal are covered by Mat or straw bale at the top and bottom and woods between the poles can avoid the damage of the galvanization on the surface of steel poles, anyway also we can follow clients required.





40Ft Power Transmission Poles Hot Dip Galvanised Steel Pole Q345 Octagonal Shape 1







Our Service



  • Reply within 24 Working Hours
  • Factory Direct Sale
  • More than 15 Years Design & Manufacture Experience
  • Capable to Handle Volume Orders
  • High-Quality and Low-Price Product
  • Provide Professional Design by Our Experienced R&D Engineers
  • Rich Exporting Experience
  • ODM, OEM Acceptable
  • Technical Support by E-mail
  • Calling service
