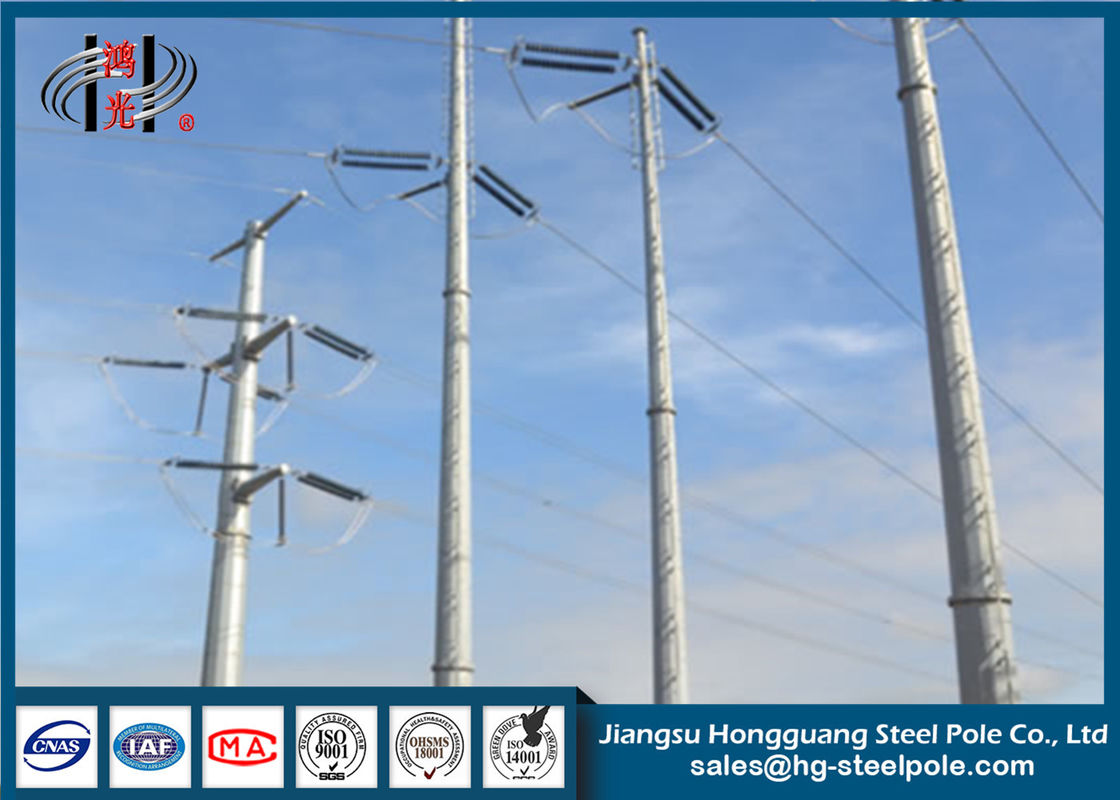

Hot Dip Galvanized Steel Power Pole , Electrical Transmission Poles 450 Dan Design Load

Hot Dip Galvanized Steel Power Pole , Electrical Transmission Poles 450 Dan Design Load

    • Hot Dip Galvanized Steel Power Pole , Electrical Transmission Poles 450 Dan Design Load
    • Hot Dip Galvanized Steel Power Pole , Electrical Transmission Poles 450 Dan Design Load
  • Hot Dip Galvanized Steel Power Pole , Electrical Transmission Poles 450 Dan Design Load

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP-110KV

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    MOQ: One 40HQ Container Safety Factor: 2.0
    Material: Q345 Height: 7-14m
    Appearance Treatment: Hot-dip Galvanized Welding: CO2 Welding Or Submerged Arc Auto Methods

    Hot Dip Galvanized Steel Power Pole , Electrical Transmission Poles 450 Dan Design Load





    Product Description:



    Products

    • Hot Dip Galvanized Steel Power Pole , Electrical Transmission Poles 450 Dan Design Load

    Design Load



    • 450daN

    Shape

    • Octagonal

    Material

    • Q345B/A572,minimum yield strength>=345n/mm2
      Q235B/A36,minimum yield strength>=235n/mm2

    • As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50

    Wall thickness

    • 2.75-4.0mm

    Identification

    • Name plate

    Welding

    • Welding of substation structure complies with AWS D1.1 standard.

    • CO2 welding or submerged arc auto methods

    • If customers need any other requirements of welding, we also can make adjustment ad your request

    Joint

    • Insert type, overlap.

    Galvanization

    • Hot dip galvanization of substation structure is in accordance with American standard ASTM A123.

    Production Process

    • Raw material test → Cutting→Bending →Weldng (longitudinal)→Galvanization or powder coating ,painting →Packages

    Life Period

    • More than 25 years, it is according to installing environment

    Package

    • Plastic Wrap or Mat or according to client's requests



    Product Description:

    The hot dip galvanized power transmission pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of power transmission pole for the power transmission and distribution system. Besides, our power transmission pole have been tested and approved by the Transmission Pole Tower Testing Station. In addition, our company have become a qualified supplier of SGCC and NGCP.



    In order to protect it from weather and corrosion, steel tubular poles are hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns which could protect steel tubular poles from corrosion as long as 25 years.





    Hot Dip Galvanized Steel Power Pole , Electrical Transmission Poles 450 Dan Design Load



    Product Process Flat Chat:



    Raw Material

    When purchasing the raw material (steel plate), on sheet of mill certificate from mill factory must be enclosed. When the raw material arrives at the warehouse, the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.

    Cutting

    Cutting the raw material that have meet all the standard required into different length and width. CNC laser cutting is used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC or G-code of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas, leaving an edge with a high-quality surface finish.

    Bending

    Forming the cut steel plate into the shape (circular or polygonal or other shape ) that as per specified in the drawing. This invention relates to forming devices and more particularly to devices or machines for bending longitudinally rolled sections or strips of metal stock to desired curvilinear shapes.

    Welding

    After molding, weld the steel plate together. Usually it is longitudinal welds. It adopts A.C.inverter control, with functions of stable running and fast traveling speed; The seam-tracking arc-guide mechanism is three-spindle system to guarantee the alignment without aberrancy; The main frame and welding machine are intergrated control, with flux auto-recovering system and it is easy to operate with high efficiency.

    Galvanization

    All poles internally and externally are to be hot-dip galvanized in accordance with requirement mentioned in the relevant drawing or specification
    Galvanization standard:IS2629-1985 ,BS729-1971





    Quality Control Management:



    JSHG has passed the ISO9001 quality management system. Besides,it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.





    Hot Dip Galvanized Steel Power Pole , Electrical Transmission Poles 450 Dan Design Load
