Stainless Steel Pole Steel Electric Pole Power Transmission Poles For Electrical Power Transformation

Stainless Steel Pole Steel Electric Pole Power Transmission Poles For Electrical Power Transformation

  • Stainless Steel Pole Steel Electric Pole Power Transmission Poles For Electrical Power Transformation
  • Stainless Steel Pole Steel Electric Pole Power Transmission Poles For Electrical Power Transformation
Stainless Steel Pole Steel Electric Pole Power Transmission Poles For Electrical Power Transformation
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Application: Electrical Power Transformation Shape: Customized
Material: GR65 Joint: Joint With Insert Mode, Flange Mode.
Thickness: 3.75mm Once Forming: 16m Once Forming Without Joint
Base Plate: Square/round/Polygon With Slotted Holes For Anchor Bolt And Dimension As Per Client’s Requirement.
High Light:

electrical power poles

,

electrical transmission poles

Stainless Steel Pole Steel Electric Pole Power Transmission Poles For Electrical Power Transformation

Product Description:

The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

Product Specification:

Products
  • Stainless Steel Pole Steel Electric Pole Power Transmission Poles For Electrical Power Transformation
Application
  • Electrical Power Transformer Substation
Voltage Grade
  • 110KV
Once Forming
  • 16m Once forming without joint
Thickness
  • 3.75mm
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Joint
  • Joint with insert mode, flange mode.

Advantages

  • Easy Installation and Maintenance

Product Advantages:

The hot-dip galvanization technique could protect steel poles from corrosion for as long as 50 years.As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilized to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.

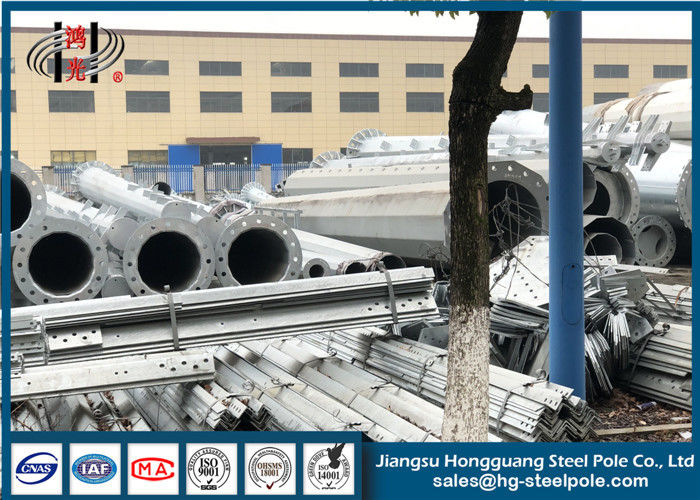

Stainless Steel Pole Steel Electric Pole Power Transmission Poles For Electrical Power Transformation 0

Application Scope:

Steel electric pole mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

Packaging&Shipping:

Our poles as normal are covered by Mat or straw bale at the top and bottom and woods between the poles can avoid the damage of the galvanization on the surface of steel poles, anyway also we can follow clients required , The loading capacity of 20GP 40HC or OT/FR will be calculated basing on the clients’ actual specification and data.

Engineering and Design Management:

“Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.



In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.



Since the establishment, JSHG have put forward thousands of design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.


Manufacturing:

Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.



Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.

After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
