Galvanized Steel GR65 500KV Power Transmission Poles

Galvanized Steel GR65 500KV Power Transmission Poles

  • Galvanized Steel GR65 500KV Power Transmission Poles
  • Galvanized Steel GR65 500KV Power Transmission Poles
Galvanized Steel GR65 500KV Power Transmission Poles
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP-110KV
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Material: Q235 Q345 Q355 GR65 Once Forming: 16m Once Forming Without Joint
Voltage Grade: 500KV Joint: Joint With Flange Mode
Shape: Polygonal(6-side,8side,12-side,16side) Round Tapered Wall Thickness: 3.8mm
Galvanization: Chinese Standard GB/T 13912-2002 And American Standard ASTM A123.
High Light:

500KV Power Transmission Poles

,

GR65 Power Transmission Poles

,

500KV Steel Transmission Poles

Galvanized Steel Power Pole Power Transmission Poles Steel Transmission Poles

Product Description:



Products
  • Galvanized Steel Power Pole Power Transmission Poles Steel Transmission Poles

Application
  • Electrical Power Transformer Substation

Standrad
  • NEA Standard

Painting
  • According to clients' request

Base plate
  • Square/round/polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization
  • Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Life Period
  • More than 25 years, it is according to installing environment



Product Brief:

Our steel pole, steel poles, steel power poles, power distribution equipment, electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,street lamp poles ,solar street lamps steel poles ,high mast lamp poles ,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product, street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm. Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating, final quality ch eck according by client required.



Our Services:

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM&UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.

7. We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.




Galvanized Steel GR65 500KV Power Transmission Poles 0



Product Process:

All of our material are purchased from famous factory to assure the high quality.

A factory certificate issued by the factory with stamp and signature must be provided before unloading the material in our factory , otherwise we have rights to refuse.
Before put into production , all the material must be passed the chemical and physical analysis to make sure that they have met the requested strength and component.
Inspection

To assure our products qualified , we take steps as follows :

1. Management team : We have employed the experienced senior experts to take charge of the whole management ,especially the technical management and quality management .

2.Introducing ISO management :We are aware of ISO 9001:2008 certificate .

3.QC Inspection :It is our company policy that all the finished products should be inspected by our specialized QC in every manufacture step and before each shipment

Design and Detail

Lofting and designing software :We have transmission power pole designing software which can help us design all kinds of steel poles ,at the same time ,the TMA and LMA are adopted by us to design the drawing accurately

Project
We have completed many big and important projects all over the world and win the trust from our clients.



Terms and Conditions:

1. Price Term: EXW, FOB, CFR or CIF.

The price includes pole shaft, base plate, crossarm and anchor bolt.
Shipping seaport: Shanghai Seaport.
Please provide drawings if you have so that we can calculate the accurate price for you.
We also provide design according to your requests, if you don't have drawings.
2. MOQ: One 40FT Container.

3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

4. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.

5. Package: Normally wraped by plastical bags or burlap cloth at the top and bottom,or according to clients requirement.

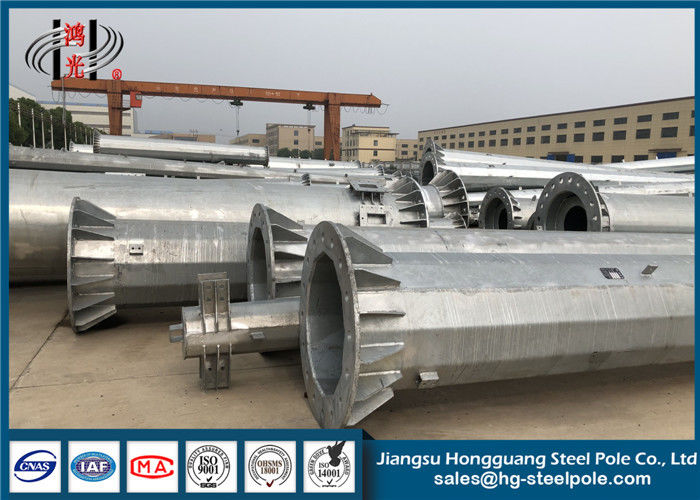

Product Show:

Steel Pole of National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT, 45FT
Height
(ft)
Thickness
(mm)
Top diameter
(mm)
Butt diameter
(mm)
Design Load
(kgf)
Yield Stress
(MPa)
Zinc Coating
(micron)
25
2.5
120
152
300
345
86
30
3.0
127
226
500
345
86
35
3.0
127
248
500
345
86
40
3.0
127
317
500
345
86
45
4.0
127
328
750
345
86
