220KV 25FT - 45FT Galvanized Polygonal Durable Electric Steel Pole with Overlap / Flange connection
  • 220KV 25FT - 45FT Galvanized Polygonal Durable Electric Steel Pole with Overlap / Flange connection

220KV 25FT - 45FT Galvanized Polygonal Durable Electric Steel Pole with Overlap / Flange connection

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-13.8KV
Product Details
Voltage Grade:
13.8KV
Welding:
According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Shape:
Round / Polygonal / Conical / Tubular / Tapered
Connection Structure:
Overlap / Flangeconnection
Application:
Electrical Power Transmission Line
Appearance Treatment:
Appearance Treatment
High Light:

galvanized steel poles

,

galvanised steel poles

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Delivery Time
1 week
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

220KV 25FT-45FT Galvanized Polygonal Durable Electric Steel Pole with Specification



Specifications:



Products

  • 110-500KV Galvanized Polygonal Durable Electric Steel Pole with Specification

Type

  • Suspension Pole , Tensile Pole , Strain Pole , Angle Pole , Dead-end Pole , etc

Voltage Grade

  • 110-500KV
  Height
  • 25FT , 30FT , 35FT , 40FT , 45FT , 50FT , 55FT , 60FT , etc.

Shape

  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

Material

  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65 and others equivalent steel material

Wall thickness

  • 2 ~ 6mm

Once Forming

  • 16m Once forming without joint

Welding

  • Welding complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, layer, scar, overlap or other defects
  • Internal and external welding makes the pole more beautiful in shape
  • If customers need any other requirements of welding, we also can make adjustment ad your request

Joint

  •  Joint with insert mode, flange mode.

Base plate

  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization

  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

Painting

  • According to clients' request

Life Period

  • More than 25 years, it is according to installing environment

Advantages



  • Low Overall Cost
  • Easy Installation and Maintenance
  • Weather Resistance
  • Anti-corrosion
  • Short Construction Cycle
  • Less Land Occupation
  • ODM & OEM are available
  • Capable to Handle Volume Orders
  • Provide Professional Design by Our Experienced R&D Engineers


Description:


The electric power market of the Phillipines is one of the most important market of our company.



As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.



The Hot Dip Galvanized Electrical Power Steel Tubular Poles plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel poles, our company design and produce many kinds of steel poles for the power transmission and distribution system. Besides, our electrical steel poles have been tested and approved by the Transmission Pole Tower Testing Station.



Product Details

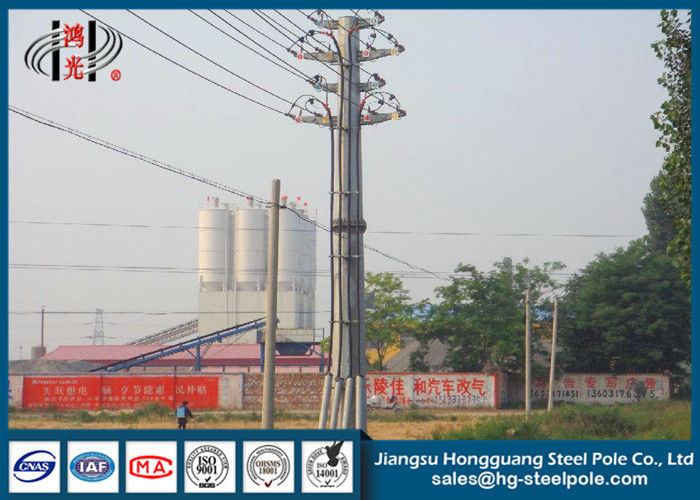

220KV 25FT - 45FT Galvanized Polygonal Durable Electric Steel Pole with Overlap / Flange connection 0



220KV 25FT - 45FT Galvanized Polygonal Durable Electric Steel Pole with Overlap / Flange connection 1


Engineering and Design Management



“Design and technology,professional and common, software and hardware” is JSHG‘s design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, attracting high-quality personnel, and introducing domestic and foreign first-class design software.



In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.

Quality Control Management

JSHG has passed the ISO9001quality management system. Besides,it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.

Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.



220KV 25FT - 45FT Galvanized Polygonal Durable Electric Steel Pole with Overlap / Flange connection 2



220KV 25FT - 45FT Galvanized Polygonal Durable Electric Steel Pole with Overlap / Flange connection 3


Our Services

  •   Reply within 24 Working Hours
  •   Factory Direct Sale
  •   High-Quality and Low-Price Products
  •   More than 15 Years Design & Manufacture Experience
  •   Capable to Handle Volume Orders
  •   Provide Professional Design by Our Experienced R&D Engineers
  •   Technical Support by E-mail
  •   Rich Exporting Experience
  •   ODM, OEM Acceptable
  •   Calling service


Please feel free to contact us!


Hot Dip Galvanized Steel Tubular Pole for Electrical Power Transmission and Distribution Line, Outdoor Lighting Project, Telecommunication Industry, Traffic System, Wind Power Project.pdf
