25ft 30ft 35ft 40ft Hot Dip Galvanized Octagonal Pole , Electrical Steel Pole
  • 25ft 30ft 35ft 40ft Hot Dip Galvanized Octagonal Pole , Electrical Steel Pole
  • 25ft 30ft 35ft 40ft Hot Dip Galvanized Octagonal Pole , Electrical Steel Pole

25ft 30ft 35ft 40ft Hot Dip Galvanized Octagonal Pole , Electrical Steel Pole

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Voltage Grade:
35KV
Application:
Power Transmission And Distribution Line
Shape:
According To Clients' Request
Welding:
According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Painting:
According To Clients' Request
Joint Of Poles:
Insert Mode,inner Flange Mode,face To Face Joint Mode
Wall Thickness:
2.3-10mm
Galvanization:
15m Steel Pole Is Hot Dip Galvanized In Accordance With Chinese Standard GB/T 13912-2002 And American Standard ASTM A123.
High Light:

galvanised steel poles

,

mono pole tower

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Delivery Time
1 week
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Quality Galvanized 25ft 30ft 35ft 40ft Octagonal Steel Tubular Pole Electrical Steel Pole

Product Description:

Steel Tubular Poles are non-standard, and normally designed according to its actually project, the affected factor including pole load, wind speed, wire type, etc

The Steel Tubular Poles price is based on its specification, like say different design with different price, normally depend on pole diameter, material, thickness, qty, etc

Product Specification:

Products
  • Quality Galvanized 25ft 30ft 35ft 40ft Octagonal Steel Tubular Pole Electrical Steel Pole
Application
  • Power transmission and distribution Line
Voltage Grade
  • 35KV
Once Forming
  • 16m Once forming without joint
Connection structure



  • Overlap / flange connection
Shape
  • Customizable
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Production Process
  • Raw material test → Cutting →Molding or bending →Welding
    (longitudinal )→Dimension verify →Flange welding →Hole drilling
    →Calibration→ Deburr →Galvanization or powder coating ,painting
    →Recalibration →Thread →Packages

Base plate

  • Base plate of substation structure is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Certificates

  • ISO9001-2008 , AAA credit rating, etc

Product Advantages:

1). Short Construction Cycle
2). Low Overall Cost
3). Easy Installation and Maintenance
4). Weather Resistance
5). Anti-corrosion
6). More than 15 Years Design & Manufacture Experience
7). Capable to Handle Volume Orders
8). Provide Professional Design by Our Experienced R&D Engineers
9). Rich Exporting Experience
10). ODM, OEM Acceptable
11). Technical Support by E-mail

Application Scope:

As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel tubular pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.

Packaging&Shipping:

*  Covered by Plastic Wrap or Mat or according to client's requests.
*  The Loading Pcs of Each Container could be calculated according to client's specification and data.

Manufacturing:

Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.



Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.



After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.

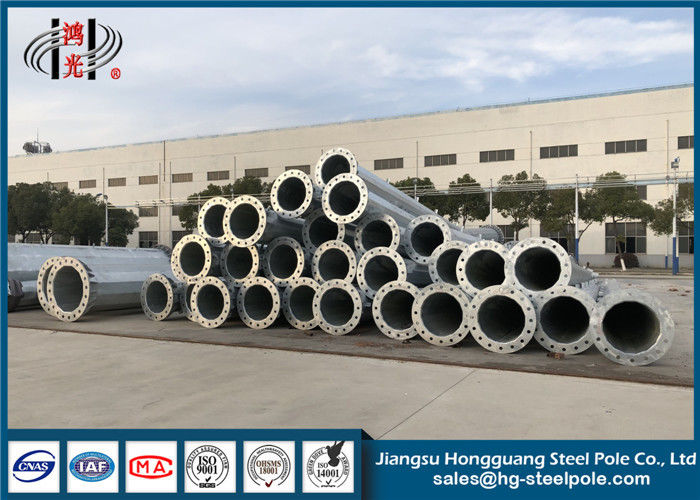

25ft 30ft 35ft 40ft Hot Dip Galvanized Octagonal Pole , Electrical Steel Pole 0
