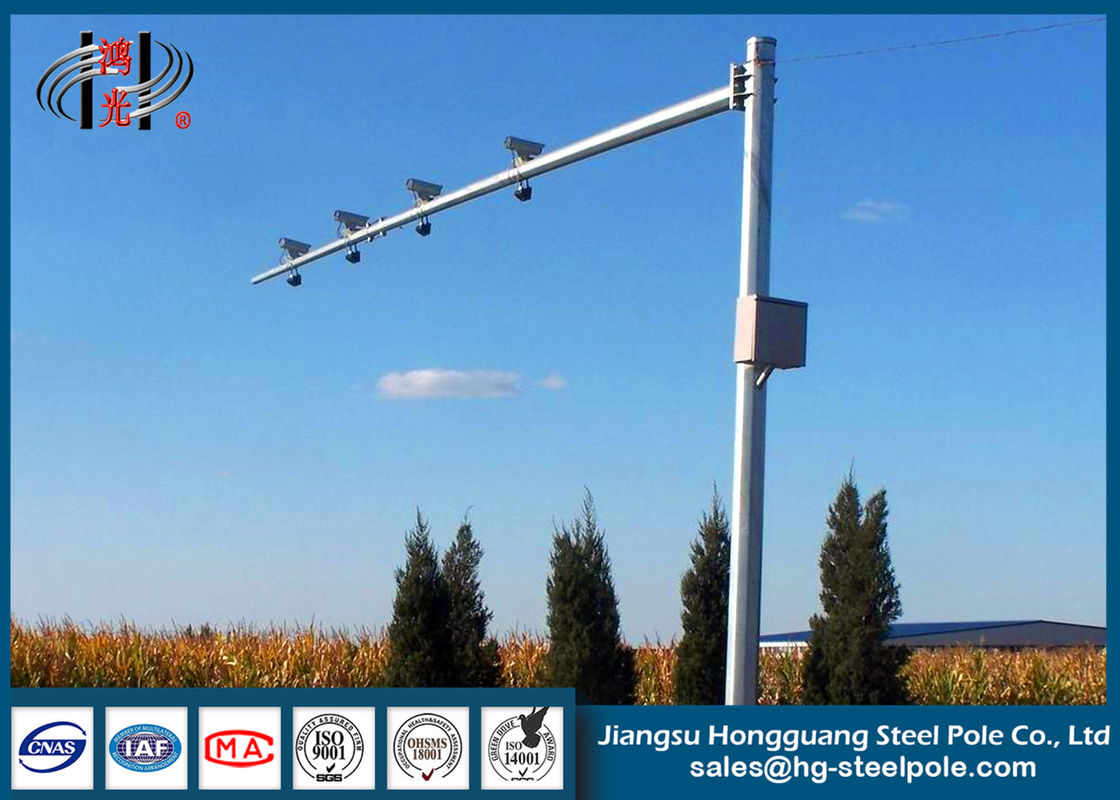

H6.8m Camera Steel Tubular Poles , Monitor Galvanised Poles
  • H6.8m Camera Steel Tubular Poles , Monitor Galvanised Poles

H6.8m Camera Steel Tubular Poles , Monitor Galvanised Poles

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-CP-H6.8
Product Details
Appearance Treatment:
Hot-dip Galvanized / Powder Coated / Painting
Height:
6.8m
Shape:
Round / Polygonal / Conical / Tubular / Tapered / Octagonal
Material:
Hot Roll Steel Q235 , Q345 , Q420 , Q460 , Gr.50 , Gr.65, SS400, Etc.
Application:
Street , Road , Highway , Garden , Business Areas , Air Port , Etc.
Colour:
White / Gray / According To Customer Requirements
High Light:

galvanized steel poles

,

galvanised steel poles

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Delivery Time
1 week
Payment Terms
Western Union, L/C, T/T
Supply Ability
3,000 Metric Tons per Month
Product Description



H6.8m Camera Steel Tubular Poles , Monitor Galvanised Poles





Specifications:

Application

  • Traffic monitoring
  • Parking lot surveillance
  • Facility perimeter security and lighting
  • Prison yard observations
  • Airports
  • Business Area

Outreach Arms Length

  • 1~10m

Height

  • 6.8m

Shape

  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc.),Tubular, Tapered

Material

  • Hot Roll Steel Q235 , Q345 , Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material

Wall thickness

  • 2~30mm

Once Forming

  • 16m Once forming without joint

Welding

  • Welding complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding makes the pole more beautiful in shape
  • If customers need any other requirements of welding, we also can make adjustment ad your request

Base plate

  • Base plate is square / round / Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Surface Treatment

  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006
  • Could be powder coated or painted according to clients' request

Life Period

  • More than 25 years, it is according to installing environment

Advantages

  • Short Construction Cycle
  • Low Overall Cost
  • Easy Installation and Maintenance
  • Fashionable and Professinal Design
  • Weather Resistance
  • Anti-corrosion
  • ODM & OEM are available
  • Capable to Handle Volume Orders



Description:



Cameras need to be at a required height to register everthing. Our Camera steel tubular pole range with mounting heights of up to 15 meters, have been designed as a tapered pole to reduce shaft deflection, to ensure least possible movement for highly accurate and clear vision required for all surveillance and security needs.



Being part of the city landscape, the camera pole varies from different cities. Our camera pole and monitor poles could be customed according to your requests. Meanwhile, we also have professional R&D engineers to design the poles for your reference.



OEM and ODM are acceptable.







H6.8m Camera Steel Tubular Poles , Monitor Galvanised Poles 0



Terms and Conditions



 1.  Price Term: EXW, FOB, CFR or CIF.

  •  The price includes pole shaft, base plate, crossarm and anchor bolt.
  •  Shipping seaport: Shanghai Seaport.
  •  Please provide drawings if you have so that we can calculate the accurate price for you.
  •  We also provide design according to your requests, if you don't have drawings.

 2.  MOQ: One 40FT Container.



 3.  Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.



 4.  Delivery Time:  2 weeks per container after PO/drawing/prepayment confirmed.



 5.  Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients’ requirement.H6.8m Camera Steel Tubular Poles , Monitor Galvanised Poles 1





Please feel free to contact us!
