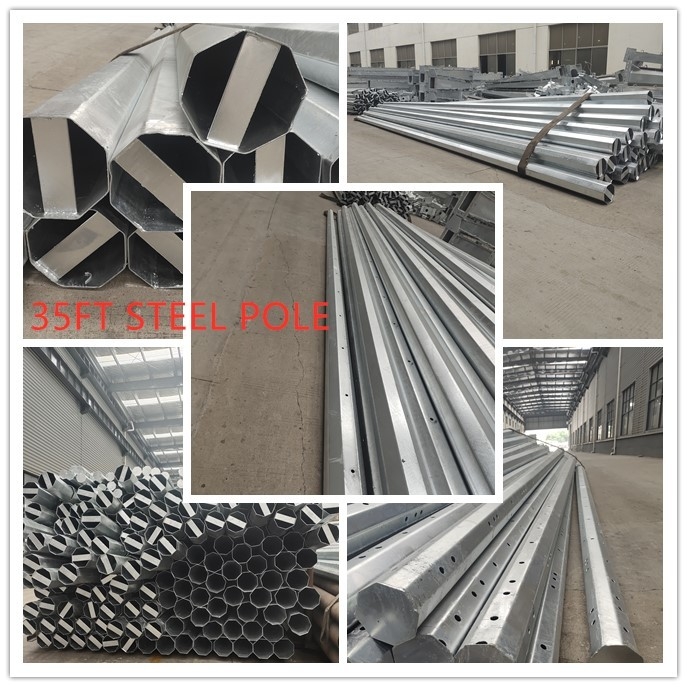

13.8KV Height 35FT Hot Dip Galvanized Steel Tubular Pole
Product Description:
Our compnay could design the practical steel electrical power poles for customers' special use, normally we need customers to provide us some parameter, like as the followings :
- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.
Raw Material
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.
|
China-GB
|
America-ASTM
|
Equivalent
|
|
Q235
|
Grade D
|
SS400,S235JO
|
|
Q345
|
Grade50[345]
|
S355JR
|
|
Q420
|
Grade60[415]
|
S420NL
|
|
Q460
|
Grade65[450]
|
S460NL
|
Product Specification:
|
Products
|
|
|
Voltage Grade
|
|
|
Galvanization
|
|
|
Welding
|
-
According to AWS D 1.1, CO2 welding or submerged arc auto methods
-
No fissure, scar, overlap, layer or other defects
-
If customers need any other requirements of welding, we also can make adjustment ad your request
|
|
Life Period
|
|
|
Surface treatment
|
|
|
Advantages
|
|
Product Test:
JSHG has passed the ISO9001 quality management system. Besides, it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.
NEA Standard Specification:
Octagonal Galvanized Steel Pole 25FT, 30FT, 35FT, 40FT,45FT
|
Height
(ft)
|
Thickness
(mm)
|
Butt Diameter
(mm)
|
Tip Diameter
(mm)
|
Design Load
(kg)
|
Yield Stress
(MPA)
|
Zinc Coating
(microns)
|
| 25 |
2.5 |
152 |
120 |
300 |
345 |
86 |
| 30 |
3.0 |
226 |
127 |
500 |
345 |
86 |
| 35 |
3.0 |
248 |
127 |
500 |
345 |
86 |
| 40 |
3.0 |
317 |
127 |
500 |
345 |
86 |
| 45 |
3.0 |
328 |
127 |
500 |
345 |
86 |
Production Process:
- Raw material test
- Cutting
- Bending
- Welding (longitudinal )
- Dimension verify
- Flange welding
- Hole drilling
- Calibration
- Galvanization or powder coating or Bituminous painting
- Recalibration
- Packages
