| Place of Origin | China |
| Brand Name | JSHG |
| Certification | ISO/CNAS/IAF/CA |
| Model Number | HG-SP-110KV |

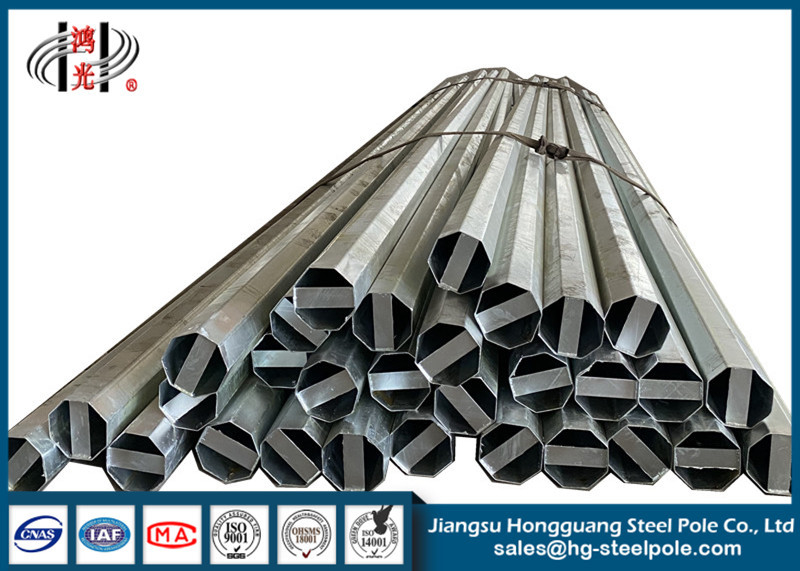

110kv hot dip galvanized octagonal steel electric power poles electric transmission poles
1. Material: Q235, Q345 or SS400 high quality Hot rolled steel or any special request is available.
2. Mounting Height: 3-40M Optional Mounting Height
3. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round
Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine
4. Brackets: Single or double brackets are in the shape and dimension as per customers requirement
5. Base plate: Base plate is square or round and size as customers' requirement
6. Base plate mounted: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
7. Ground mounted: The length buried underground as per customers requirement
8. Anticorrosion methods: Hot dip galvanized steel or hot dip galvanized with Plastic Powder Coating.
9. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered roundGalvanizing: Hot dip galvanization with thickness of 80-100µm average
10. Powder coating: Pure polyester powder painting, color is optional
11. Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance
12. Welding: Welding confirms with international welding standard of CWB
13. Certificate: ISO9001-2015
14. We don't have standard products, so we need customer's drawings and request.
Specifications:
| Height | From 3 m to 25 m |
| Apply in | Highway, freeway, Airport , seaport,plaza,stadium,square,highway,street way etc |
| Shape | Conical, octagonal, square, cylinder |
| Material | Usually Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 |
| Thickness | 1 mm to 30 mm |
| Production Process | Raw material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Product Details
Quality Control Management
JSHG has passed the ISO9001quality management system. Besides,it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.
Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.
