Hot Dip Steel Tubular Pole 10mm Galvanized Metal Conical Electric Power Pole
  • Hot Dip Steel Tubular Pole 10mm Galvanized Metal Conical Electric Power Pole
  • Hot Dip Steel Tubular Pole 10mm Galvanized Metal Conical Electric Power Pole

Hot Dip Steel Tubular Pole 10mm Galvanized Metal Conical Electric Power Pole

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-110KV
Product Details
Voltage Grade:
10-220KV
Welding:
According To AWS D 1.1, CO2 Welding Standard
Shape:
Round / Polygonal / Conical / Tubular / Tapered
Wall Thickness:
2.3-10mm
Application:
Electrical Power Transmission And Distribution Line
Appearance Treatment:
HDG
High Light:

Metal Steel Tubular Pole

,

10mm Hot Dip Steel Tubular Pole

,

Conical Electric Power Pole

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Delivery Time
1 week
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description



110KV Hot Dip Galvanized Metal Conical Electric Power Pole



Specifications:



Products

  • 110KV Hot Dip Galvanized Metal Conical Electric Power Pole

Type

  • Suspension Pole , Strain Pole , Tensile Pole , Angle Pole , Dead-end Pole , etc

Voltage Grade

  • 10-220KV

Shape

  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

Material

  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65 and others equivalent steel material

Wall thickness

  • 2 ~ 6mm

Once Forming

  • 16m Once forming without joint

Welding

  • Welding complies with AWS D1.1 standard.
  • No fissure, scar, overlap, layer or other defects
  • CO2 welding or submerged arc auto methods
  • If customers need any other requirements of welding, we also can make adjustment ad your request
  • Internal and external welding makes the pole more beautiful in shape

Joint

  •  Joint with insert mode, flange mode.

Base plate

  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization

  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

Painting

  • According to clients' request

Life Period

  • More than 25 years, it is according to installing environment

Advantages

  • Short Construction Cycle
  • Less Land Occupation
  • ODM & OEM are available
  • Easy Installation and Maintenance
  • Weather Resistance
  • Low Overall Cost
  • Anti-corrosion
  • Capable to Handle Volume Orders
  • Provide Professional Design by Our Experienced R&D Engineers


Description:


The electric power market of the Phillipines is one of the most important market of our company.

The Hot Dip Galvanized Electrical Power Steel Tubular Poles plays an important role in electrical power transmission and distribution industry. Besides, our electrical steel poles have been tested and approved by the Transmission Pole Tower Testing Station.



In order to meet the increasingly higher demand for steel poles, our company design and produce many kinds of steel poles for the power transmission and distribution system. As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.



Product Details

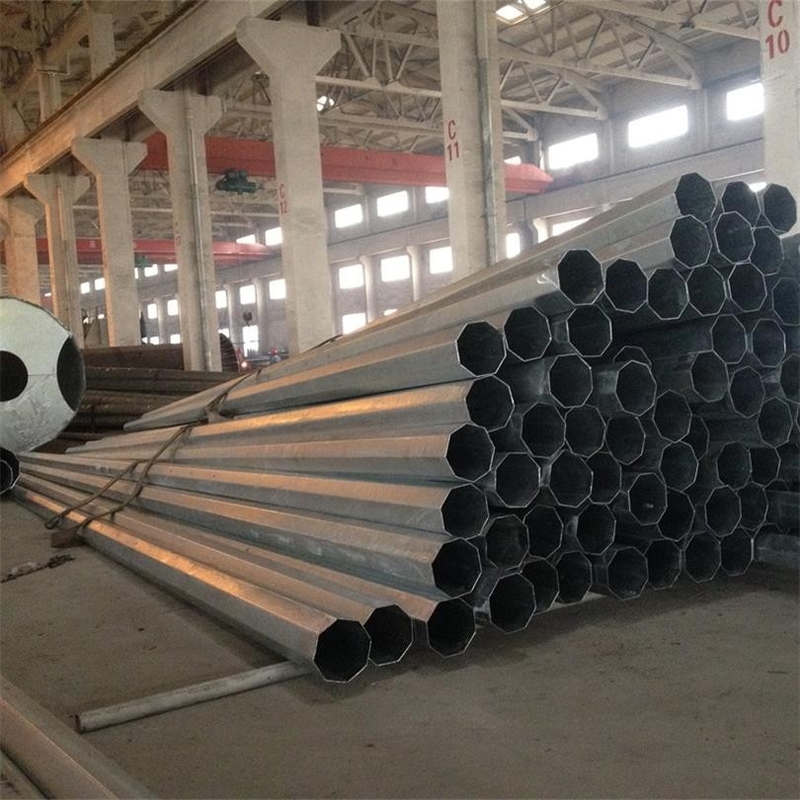

Hot Dip Steel Tubular Pole 10mm Galvanized Metal Conical Electric Power Pole 0



Quality Control Management

JSHG has passed the ISO9001quality management system. Besides,it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.

Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.








Production Process


Raw material (test) → Cutting →bending →Forming Operation →Seam Welding →Fitting Welding→ Welding Inspection→ Pre-assemble for Semi-finished Productss → Galvanization →Straightening→ Preassemble→Packing & Delivery

Hot Dip Steel Tubular Pole 10mm Galvanized Metal Conical Electric Power Pole 1



Hot Dip Steel Tubular Pole 10mm Galvanized Metal Conical Electric Power Pole 2


Our Services

  •   Reply within 24 Working Hours
  •   Factory Direct Sale
  •   Capable to Handle Volume Orders
  •   High-Quality and Low-Price Products
  •   More than 15 Years Design & Manufacture Experience
  •   Provide Professional Design by Our Experienced R&D Engineers
  •   Rich Exporting Experience
  •   ODM, OEM Acceptable
  •   Calling service
  •  Technical Support by E-mail


Please feel free to contact us!


Hot Dip Galvanized Steel Tubular Pole for Electrical Power Transmission and Distribution Line, Outdoor Lighting Project, Telecommunication Industry, Traffic System, Wind Power Project.pdf
