|Place of Origin:||China|
|Minimum Order Quantity:||One 40 HQ Container|
|Packaging Details:||* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.|
|Delivery Time:||2 weeks per container after PO/drawing/prepayment confirmed|
|Payment Terms:||L/C, T/T or Western Union|
|Supply Ability:||3,000 Metric Tons per Month|
|Voltage Grade:||10KV,35KV, 110KV, 220KV||Application:||Transmission Line Project|
|Shape:||Conical / Tubular||Welding:||According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods|
|Painting:||Bitumen Painting||Connection Structure:||Flange Connection|
Q235 power line post,
110KV power line post,
110KV Electric post
The material is in accordance with NF c Standard and NF EN 10149 Standard,it has the following property.
- Yield Strength=355N/mm2
- Toughness remains the same under 20 degrees below zero.
- Galvanization is in accordance with NFA35503 Standard Class 1.
- Component Length:-25mm to 75mm
- Twisting degree:1°per 3 meters length
- Ovalisation:Maximum is 3%
- The average diameter:+/-0.5%
- Slip length:+/-150mm

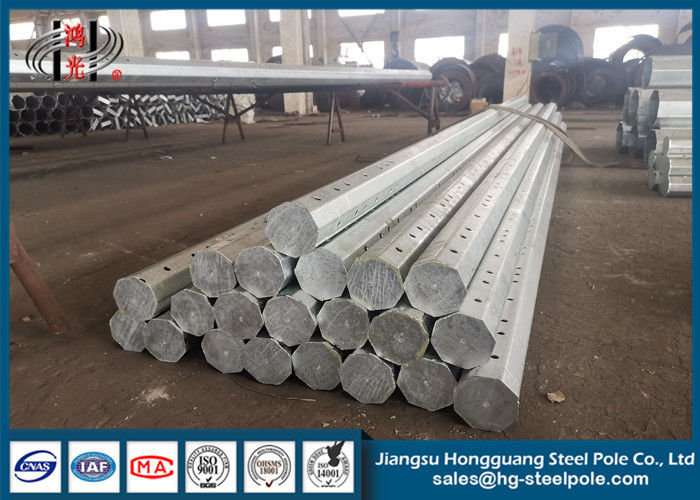

The Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.
But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :
- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.
* Covered by Plastic Wrap or Mat or according to client's requests.
* The Loading Pcs of Each Container could be calculated according to client's specification and data.
