Q345B 50KV Electric Masts Galvanized Steel Pole
  • Q345B 50KV Electric Masts Galvanized Steel Pole
  • Q345B 50KV Electric Masts Galvanized Steel Pole
  • Q345B 50KV Electric Masts Galvanized Steel Pole

Q345B 50KV Electric Masts Galvanized Steel Pole

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-110KV
Product Details
Suit For:
Electricity Distribution
Shape:
Conoid ,Multi-pyramidal,Columniform,polygonal Or Conical
Material:
Q345B/A572
Power:
10 KV ~550 KV
Thickness:
1 Mm To 30 Mm
Steel Pole Height Options:
3.5m~15m
Keyword:
Steel Electric Pole
High Light:

550KV Electric Masts

,

550KV Galvanized steel pole

,

Q345B steel Electric Masts

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Electric Masts Galvanized Power Transmission Line steel pole



Specifications:

Type
35FT Power Distribution Pole For Philippines Project With Octagonal Setion Shape
Suit for
Electricity distribution
Shape
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material
Usually Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490
Power
10 KV ~550 KV
Design Load in Kg
300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles
Insert mode,innerflange mode,face to face joint mode .
Design of pole
Against earthquake of 8 grade
Standard
ISO 9001
Welding
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness
1 mm to 30 mm





Cutting: Cutting the raw material that have meet all the standard required into different length and width. CNC laser cutting is used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC or G-code of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas, leaving an edge with a high-quality surface finish.



Molding: Forming the cut steel plate into the shape (circular or polygonal or other shape ) that as per specified in the drawing. This invention relates to forming devices and more particularly to devices or machines for bending longitudinally rolled sections or strips of metal stock to desired curvilinear shapes.



Welding: After molding, weld the steel plate together. Usually it is longitudinal welds. It adopts A.C.inverter control, with functions of stable running and fast traveling speed; The seam-tracking arc-guide mechanism is three-spindle system to guarantee the alignment without aberrancy; The mainframe and welding machine are intergrated control, with flux auto-recovering system and it is easy to operate with high efficiency.



Galvanization: All poles internally and externally are to be hot-dip galvanized in accordance with requirement mentioned in the relevant drawing or specification. Galvanization standard:IS2629-1985 ,BS729-1971



We produce any dimensions and thicknesses straight round, tapered round, straight square, tapered square etc pole as your demand.

1) The main body pole adopts the technology of the disposable shaping

2) The welding seam is level and smooth
3) The welding of the lightpost is the automatic Asian arc welding
4) The antiseptic disposing of the lamp pole is the hot galvanizing and the surface is smooth and beautiful
5) Both the adjustment of the color and that of the height are alternative.

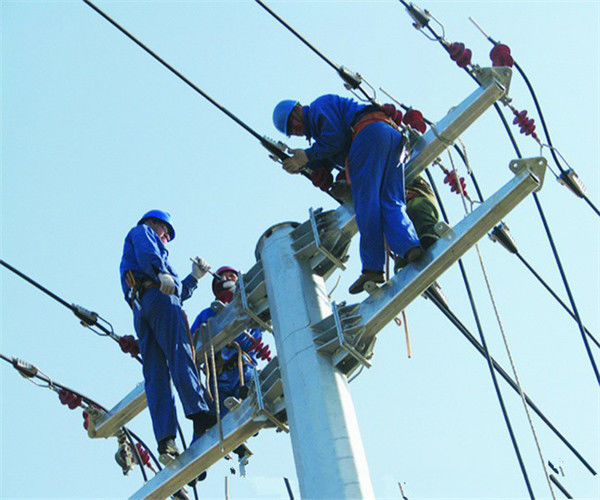

Q345B 50KV Electric Masts Galvanized Steel Pole 0



Engineering and Design Management:

“Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
