| Place of Origin: | China |
| Brand Name: | JSHG |
| Certification: | ISO/CNAS/IAF/CA |
| Model Number: | HG-SP-110KV |
| Minimum Order Quantity: | One 40 HQ Container |
|---|---|
| Price: | negotiation |
| Packaging Details: | * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data. |
| Delivery Time: | 2 weeks per container after PO / drawing / prepayment confirmed |
| Payment Terms: | L/C, T/T or Western Union |
| Supply Ability: | 3,000 Metric Tons per Month |
| Material: | Q235/SS400 | Welding Technique: | Automatic Submerged Arc Welding |
|---|---|---|---|
| Surface Treatment: | Hot Dip Galvanizing And Powder Painting | Anti-wind Capacity: | 36.9m/s |
| Coating Layer Thickness: | ≥100um | Steel Pole Height Options: | 3.5m~15m |
| Keyword: | Steel Electric Pole | ||
| High Light: | 45FT Steel Electric Pole,110kv Steel Electric Pole,45FT high voltage poles |
||

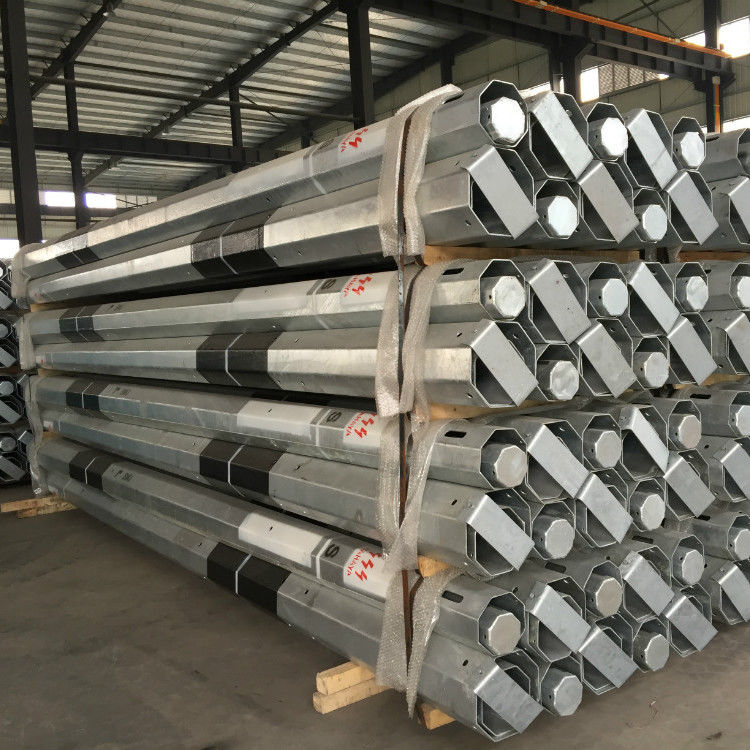

110kv Hot Dip Galvanized Steel Electric Power Pole For Transmission Line 45FT
Specifications:
| Height (m) | Diamention (mm) | Thickness (mm) | Flange size (mm) |
| 6 | 60/140 | 2.75 | 240*240*12 |
| 7 | 60/170 | 3 | 280*280*12 |
| 8 | 70/180 | 3 | 280*280*14 |
| 9 | 70/170 | 3.5 | 300*300*16 |
| 10 | 70/170 | 3.5 | 300*300*16 |
|
Height
|
25FT~70FT
|
|
Suit for
|
Electric Power Transmission and Distribution/ Steel Tower Pole
|
|
Shape
|
Polygonal
|
|
Material
|
Normally :
Q235B/ASTMA36/ENS235JR,Yeild Strength≥235MPa; Q345B/ASTMA572/ENS355J2, Yeild Strength≥345MPa |
|
Power Capacity
|
10kV to 220kV
|
|
Tolerance of the dimension
|
According to client’s requirement
|
|
Surface treatment
|
Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
|
|
Joint of Poles
|
Slip joint, flanged connected
|
|
Standard
|
ISO9001:2008
|
|
Length of per section
|
Within 14M once forming
|
|
Welding Standard
|
AWS(American Welding Society)D 1.1
|
|
Thickness
|
2~30mm
|
|
Production Process
|
Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface
clean-galvanization or power coating /painting-recalibration-packages |
Welding
“Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
