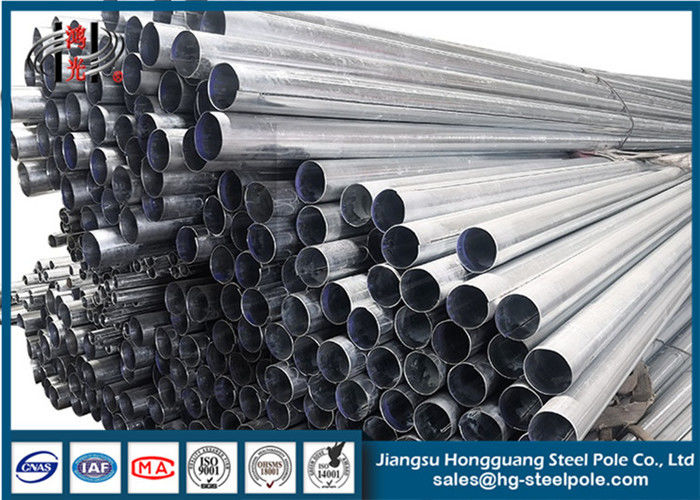

Direct Buried 3.5mm Thick Polygonal 12m Steel Electric Pole Q235
  • Direct Buried 3.5mm Thick Polygonal 12m Steel Electric Pole Q235
  • Direct Buried 3.5mm Thick Polygonal 12m Steel Electric Pole Q235

Direct Buried 3.5mm Thick Polygonal 12m Steel Electric Pole Q235

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-110KV
Product Details
Material:
Q345
Once Forming:
12m
Application:
Electrical Power Transmission Line
Type:
Direct Buried
Shape:
Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc),Tubular, Tapered
Wall Thickness:
3.5mm
Galvanization:
Accordance With Chinese Standard GB/T 13912-2002 And American Standard ASTM A123.
High Light:

12m Steel Electric Pole

,

3.5mm Steel Electric Pole

,

12m electric line pole

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Direct Buried 3.5mm Thick Polygonal 12m Hot Roll Steel Electric Pole



Steel Electric Pole Production Line


Before galvanization, we will check the pole quality during the fabrication process from cutting raw plate, bending/forming, automatic welding to drilling holes. Then after hot dip galvanization, we will check the diameters, galvanization thickness and do the load test according to clients' different requirements and then deliver the poles on time based on the contract.



Product Show:

Steel Pole of National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT, 45FT
Height
(ft)
Thickness
(mm)
Top diameter
(mm)
Butt diameter
(mm)
Design Load
(kgf)
Yield Stress
(MPa)
Zinc Coating
(micron)
25
2.5
120
152
300
345
86
30
3.0
127
226
500
345
86
35
3.0

             127

248
500
345
86
40
3.0
127
317
500
345
86
45
4.0
127
328
750
345
86



Steel Electric Pole Product Description:

Products
  • 3.5mm Thick Polygonal 12m Hot Roll Steel Electric Pole

Application
  • Electrical Power Transmission

Standrad
  • NEA Standard

Painting
  • According to clients' request

Shape
  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

Galvanization
  • Accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Welding
  • Welding of galvanized steel power pole complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • Internal and external welding makes the galvanized steel power pole more beautiful in shape
Export Foreign Country
  • Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc



Steel Electric Pole production Process:

1. Raw materialtest :When purchasing the raw material(steel plate ),on sheet of mill certificate from mill factory must be enclosed.When the raw material arrives at the warehouse ,the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.

2. Cuting :Cuting the raw material that have meet all the standard required into different length and width .



3. Molding :Forming the cutted steel plate into the shape (circular or polygonal)that as per specified in the drawing .


4. Welding :After molding ,weld the steel plate together .Uauslly it is longitudinal welds.


5. Dimension verify :Afer welding ,check the diameter ,length according to the drawing .


6. Welding standard:ASTM A 252-1998 or ASTM A 714-1999


7. Drill:Drill the hole at the right location as requested in the drawing.


8. Calibration:check the straightness and diameter to make sure it meet all the requirement .


9. Deburr: All burrs after drilling or cutting of steels shall be deburred and appropriately chamfered before galvanized


10. Galvanization :All poles internally and externally are to be hot-dip galvanized in accordance with requirement mentioned in the relevant drawing or specification
Galvanization standard:IS2629-1985 ,BS729-1971


11. Recalibration:recheck the straightness and diameter to make sure it meet all the requirement after galvanization.


12. Thread:Thread the parts that needs screw thread ot make sure it can installed successfully at site .


13. Packages: Our poles as normal cover by sea /road -worthy wooden packing material ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data
