ISO 132kv 25FT Zinc Coating High Voltage Metal Electric Pole
  • ISO 132kv 25FT Zinc Coating High Voltage Metal Electric Pole
  • ISO 132kv 25FT Zinc Coating High Voltage Metal Electric Pole

ISO 132kv 25FT Zinc Coating High Voltage Metal Electric Pole

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-110KV
Product Details
Material:
Q235
Height:
25FT
Application:
Electrical Power Transmission Line
Joint:
Overlap Joint
Shape:
Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc),Tubular, Tapered
Wall Thickness:
4mm
Galvanization:
Hot Dip Galvanization Of Substation Structure Is In Accordance With Chinese Standard GB/T 13912-2002 And American Standard ASTM A123.
Keyword:
Steel Electric Pole
High Light:

132kv metal electric pole

,

Polygonal metal electric pole

,

132kv high voltage electric pole

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

ISO 25FT Power Transmission Line Steel Electric Pole

Electric steel pole is a new set up power lines of power equipment in recent years, who are instead of traditional cement column wire rod products.Electric steel pole can be manufactured of polygonal and round steel pipe,and processed by hot dip galvanized. Mainly used for power line erection.Electric steel pole is a new set up power lines of power equipment in recent years, who are instead of traditional cement column wire rod products.Electric steel pole can be manufactured of polygonal and round steel pipe,and processed by hot dip galvanized. Mainly used for power line erection.



Product Show:

Steel Pole of National Electrification Administration (Philippines)
Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT, 45FT
Height
(ft)
Thickness
(mm)
Top diameter
(mm)
Butt diameter
(mm)
Design Load
(kgf)
Yield Stress
(MPa)
Zinc Coating
(micron)
25
2.5
120
152
300
345
86
30
3.0
127
226
500
345
86
35
3.0



127
248
500
345
86
40
3.0
127



317
500
345
86
45
4.0
127
328
750
345
86



Steel Electric Pole Product Description:

Products
  • Octagonal Hot Roll Steel Electric Pole Q345 Q235 Hot Dip Galvanized 15m

Application
  • Electrical Power Transmission

Standrad
  • NEA Standard

Painting
  • According to clients' request

Shape
  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

Galvanization
  • Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Welding
  • Welding of galvanized steel power pole complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • Internal and external welding makes the galvanized steel power pole more beautiful in shape
Export Foreign Country
  • Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc



Key Specification:
1. Material: Q235, Q345 or SS400 high quality Hot rolled steel or any special request is available.
2. Mounting Height: 3-40M Optional Mounting Height
3. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round
Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine
4. Brackets: Single or double brackets are in the shape and dimension as per customers requirement
5. Base plate: Base plate is square or round and size as customers' requirement
6. Base plate mounted: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
7. Ground mounted: The length buried underground as per customers requirement
8. Anticorrosion methods: Hot dip galvanized steel or hot dip galvanized with Plastic Powder Coating.
9. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered roundGalvanizing: Hot dip galvanization with thickness of 80-100μm average
10. Powder coating: Pure polyester powder painting, color is optional
11. Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance
12. Welding: Welding confirms with international welding standard of CWB
13. Certificate: ISO9001-2015

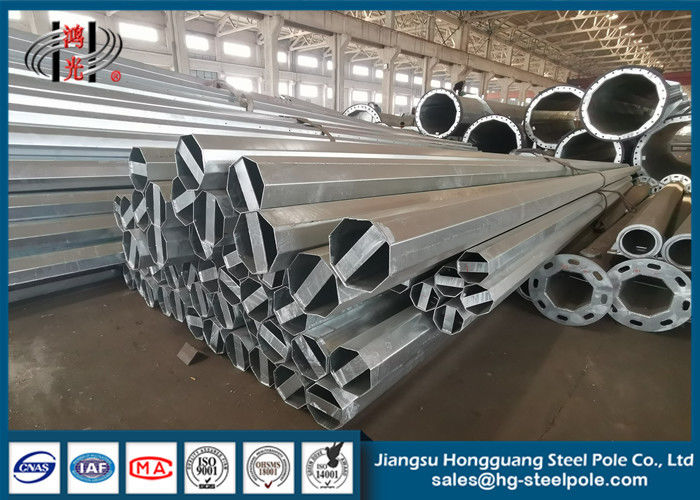

ISO 132kv 25FT Zinc Coating High Voltage Metal Electric Pole 0



Engineering and Design Management:

“Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
