Customized Steel Electric Pole With Base Plate Transmission Lines
  • Customized Steel Electric Pole With Base Plate Transmission Lines
  • Customized Steel Electric Pole With Base Plate Transmission Lines

Customized Steel Electric Pole With Base Plate Transmission Lines

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Application:
Electrical Power Transformation
Shape:
Octagonal, Dodecagonal, Hexadecagonal, Etc,Tubular, Tapered
Material:
GR65
Welding:
Welding Of Substation Structure Complies With AWS D1.1 Standard.
Voltage Grade:
69KV
Once Forming:
16m Once Forming Without Joint
Base Plate:
Base Plate Of Substation Structure Is Square/round/Polygon With Slotted Holes For Anchor Bolt And Dimension As Per Client’s Requirement.
High Light:

electric steel pole

,

electric line pole

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Steel Electric Pole Electric Power Pole with Base Plate for Transmission Lines

Product Description:

The material is in accordance with NF EN 10025 Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.



Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm



Product Specification:

Products
  • Steel Electric Pole Electric Power Pole with Base Plate for Transmission Lines
Application
  • Electrical Power Transformer Substation
Voltage Grade
  • 69KV
Once Forming
  • 16m Once forming without joint
Thickness
  • 3mm,4mm,5mm
Life Period
  • More than 25 years, it is according to installing environment
Joint
  • Joint with insert mode, flange mode.

Advantages

  • Easy Installation and Maintenance

Product Advantages:

1). Short Construction Cycle
Our factory has a professional technical and production team to ensure the completion time of the product.
2). Low Overall Cost
Our factory and raw material factory have long-term cooperation to ensure low cost of products.
3). Weather Resistance
The quality of our products is high quality and resistant to bad weather.
4). Provide Professional Design by Our Experienced R&D Engineers

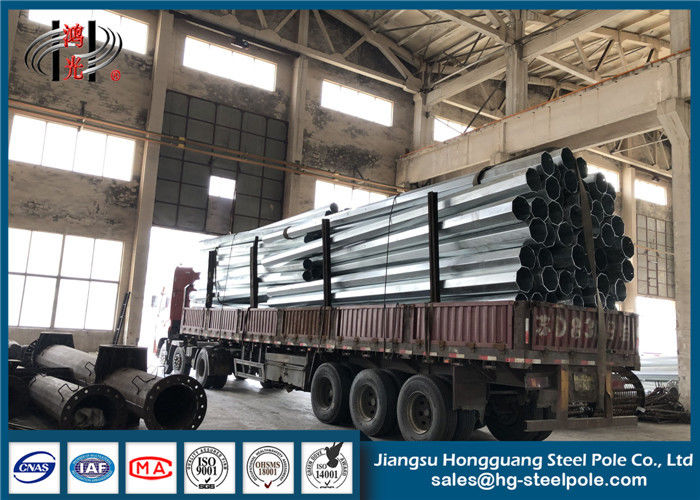

Customized Steel Electric Pole With Base Plate Transmission Lines 0

Application Scope:

Steel electric pole mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

Our Services:

1). Reply within 24 Working Hours
2). Factory Direct Sale
3). More than 15 Years Design & Manufacture Experience
4). Capable to Handle Volume Orders
5). High-Quality and Low-Price Products
6). Provide Professional Design by Our Experienced R&D Engineers
7). Rich Exporting Experience
8). ODM, OEM Acceptable
9). Technical Support by E-mail
10). Calling service

Features:

1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 25mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 69KV to 220kv

9. Easy install and maintenance.
