PROFESSIONAL MANUFACTURER
HIGH QUALITY
 |
| Place of Origin: | China |
| Brand Name: | JSHG |
| Certification: | ISO/CNAS/IAF/CA |
| Model Number: | HG-SP |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | negotiation |
| Packaging Details: | * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data. |
| Delivery Time: | 2 weeks per container after PO/drawing/prepayment confirmed |
| Payment Terms: | L/C, T/T or Western Union |
| Supply Ability: | 3,000 Metric Tons per Month |
| Shape: | Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc),Tubular, Tapered | Thickness: | 3.0mm |
|---|---|---|---|
| Material: | Hot Roll Steel Q355 | Joint: | Joint With Insert Mode, Flange Mode. |
| Voltage Grade: | According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods | Once Forming: | 16m Once Forming Without Joint |
| Advantages: | Anti-corrosion | ||
| High Light: | electric line pole,metal electric pole |
||

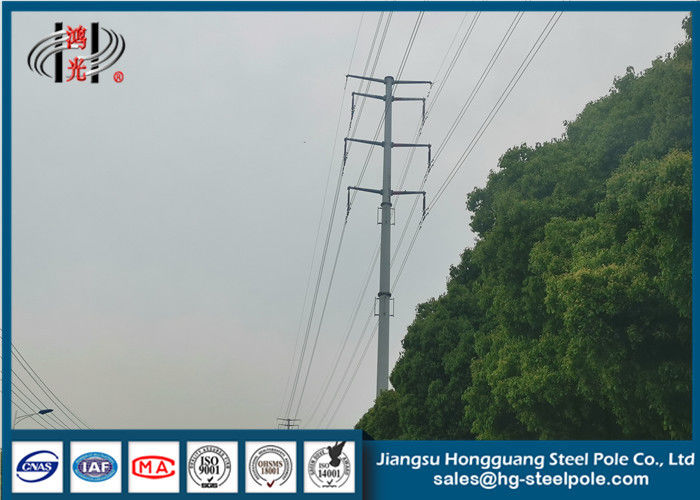

The HDG Electrical Steel Electric Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.
| Products |
|
| Application |
|
| Voltage Grade |
|
| Once Forming |
|
| Thickness |
|
| Welding |
|
| Joint |
|
|
Advantages |
|
1. Short Construction Cycle
2. Low Overall Cost
3. Easy Installation and Maintenance
4. Weather Resistance
5. Anti-corrosion
6. More than 15 Years Design & Manufacture Experience
7. Capable to Handle Volume Orders
8. Provide Professional Design by Our Experienced R&D Engineers
9. Rich Exporting Experience
10. ODM, OEM Acceptable
11. Technical Support by E-mail
Raw material test → Cutting →Molding or bending →Welding(longitudinal )→Dimension verify →Flange welding →Hole drilling→Calibration→ Deburr →Galvanization or powder coating ,painting→Recalibration →Thread →Packages
1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3
3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 16meters once forming( single section)
6. Thickness: from 1mm to 25mm
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. 110KV to 220kv
9. Easy install and maintenance.
