Galvanized Conical Steel Electric Pole With Nameplate 110KV Transmission Line
  • Galvanized Conical Steel Electric Pole With Nameplate 110KV Transmission Line
  • Galvanized Conical Steel Electric Pole With Nameplate 110KV Transmission Line

Galvanized Conical Steel Electric Pole With Nameplate 110KV Transmission Line

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Application:
110KV Transformation Line
Shape:
Polygonal
Painting:
Bitumen Painted
Joint:
Joint With Insert Mode
Welding:
According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Material:
Q235, Q345
Base Plate:
Square/round/Polygon
High Light:

electric line pole

,

metal electric pole

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

110KV Transmission Line Galvanized Conical Steel Electric Pole with Nameplate

Product Description:

The Suspension Pole, Strain Pole, Angle Pole in Hot Dip Galvanized in Hot Dip Galvanization was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.





Manufacture Tolerance:


- Component Length:-25mm to 75mm
- Straightness:2mm/m
- Twisting degree:1°per 3 meters length
- Ovalisation:Maximum is 3%
- The average diameter:+/-0.5%
- Slip length:+/-150mm



Product Advantages:



1). Short Construction Cycle
2). Low Overall Cost
3). Easy Installation and Maintenance
4). Weather Resistance
5). Anti-corrosion
6). More than 15 Years Design & Manufacture Experience
7). Capable to Handle Volume Orders
8). Provide Professional Design by Our Experienced R&D Engineers
9). Rich Exporting Experience
10). ODM, OEM Acceptable
11). Technical Support by E-mail



Product Specification:

Products
  • 110KV Transmission Line Galvanized Conical Steel Electric Pole with Nameplate
Life Period
  • More than 25 years, it is according to installing environment
Voltage Grade
  • 110KV
Shape
  • Octagonal, Polygonal
Thickness
  • 5.0mm
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Joint
  • Joint with Overlap Slip

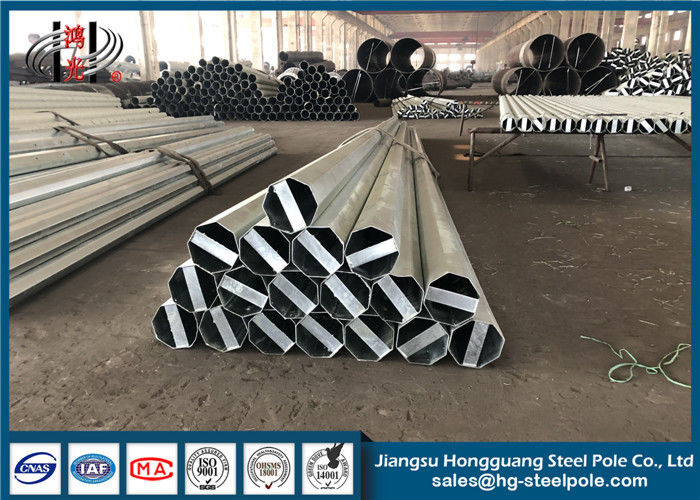

Galvanized Conical Steel Electric Pole With Nameplate 110KV Transmission Line 0



Packaging&Shipping:

Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.

* Covered by Plastic Wrap or Mat or according to client's requests.

* The Loading Pcs of Each Container could be calculated according to client's specification and data.

Manufacturing:

Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.



After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
