|Place of Origin:||China|
|Minimum Order Quantity:||One 40 HQ Container|
|Packaging Details:||* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.|
|Delivery Time:||2 weeks per container after PO/drawing/prepayment confirmed|
|Payment Terms:||L/C, T/T or Western Union|
|Supply Ability:||3,000 Metric Tons per Month|
|Application:||Power Transformation||Shape:||Round / Polygonal / Conical / Tubular,etc|
|Appearance Treatment:||Hot-dip Galvanized / Powder Coated / Painting||Connection Structure:||Overlap/flange Connection|
|Joint:||Joint With Insert Mode, Flange Mode.||Welding:||According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods|
|Once Forming:||16m Once Forming Without Joint||Voltage Grade:||11KV-220KV|
electric line pole,
metal electric pole

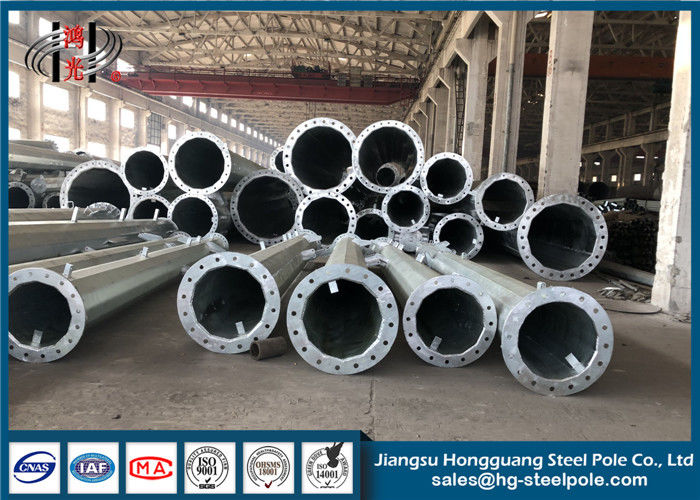

The Suspension Pole, Strain Pole, Angle Pole in Hot Dip Galvanized in Hot Dip Galvanization was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.
A. Management team: We have a professional design team to provide services for customers. Provide design drawings.
B. ISO 9001:2008 certificate provided .
C. QC Inspection: We have an inspector team to inspect the whole production line, and each pole should be inspected in accordance with the drawing, to make sure all poles are passed before delivery.
Steel electric pole mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.
Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.
* Covered by Plastic Wrap or Mat or according to client's requests.
* The Loading Pcs of Each Container could be calculated according to client's specification and data.
Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.
Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.
After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
Jiangsu Hongguang Steel Pole Co., Ltd.
Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
Telphone: +86 510 878 441 56
Fax: +86 510 878 435 28
Trade manager ID: cnhgsteelpole
Company youtube link: https://youtu.be/C9sHcnm3RKI
Please feel free to contact us!
Contact Person: Zoe Tang
