Polygonal Conical Q235 Galvanized Metal Pole With Climbing Rung And Anchor Bolt
  • Polygonal Conical Q235 Galvanized Metal Pole With Climbing Rung And Anchor Bolt
  • Polygonal Conical Q235 Galvanized Metal Pole With Climbing Rung And Anchor Bolt
  • Polygonal Conical Q235 Galvanized Metal Pole With Climbing Rung And Anchor Bolt

Polygonal Conical Q235 Galvanized Metal Pole With Climbing Rung And Anchor Bolt

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP
Product Details
Voltage Grade:
10KV ~ 220KV
Application:
Power Transmission Line
Shape:
Conical, Round, Polygonal, Etc.
Painting:
Bitumen Paint
Certificates:
ISO9001-2008 , AAA Credit Rating, Etc
Joint Of Poles:
Insert Mode,innerflange Mode,face To Face Joint Mode
High Light:

galvanised steel poles

,

mono pole tower

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Delivery Time
1 week
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description



Polygonal Conical Q235 Steel Tubular Pole With Climbing Rung and Anchor Bolt



Product Description:



The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.



Product Specification:



Products
  • Polygonal Conical Q235 Steel Tubular Pole With Climbing Rung and Anchor Bolt
Application
  • Transmission line project
Voltage Grade
  • 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
Once Forming
  • 16m Once forming without joint
Galvanization



  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Shape
  • Round / polygonal / Conical / Tubular
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods

  • No fissure, scar, overlap, layer or other defects

  • If customers need any other requirements of welding, we also can make adjustment ad your request

Joint
  • Joint with insert mode, flange mode.
Surface treatment
  • Hot dip galvanized Following ASTM A 123,
    color polyester power or any other standard by client required
Advantage
  • Weather Resistance

  • Anti-corrosion

  • ODM & OEM are available

  • Capable to Handle Volume Orders

  • Provide Professional Design by Our Experienced R&D Engineers





Application Scope:

Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

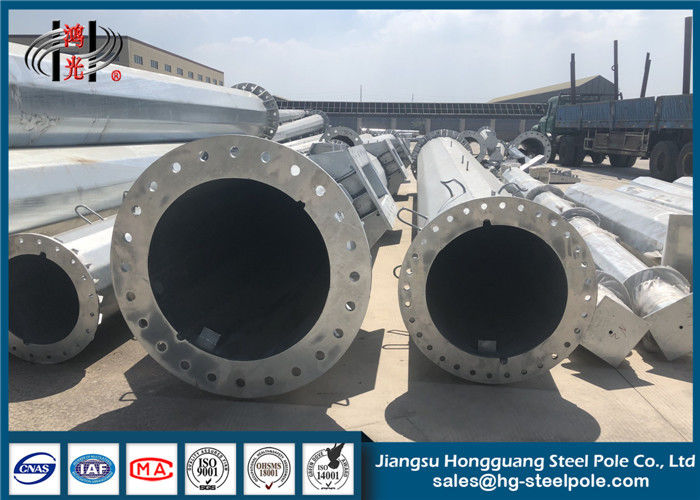

Polygonal Conical Q235 Galvanized Metal Pole With Climbing Rung And Anchor Bolt 0



Packaging&Shipping:

Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.



Production Process



  • Raw material test
  • Cutting
  • Bending
  • Welding (longitudinal )
  • Dimension verify
  • Flange welding
  • Hole drilling
  • Calibration
  • Deburr
  • Galvanization or powder coating or Bituminous painting
  • Recalibration
  • Packages
