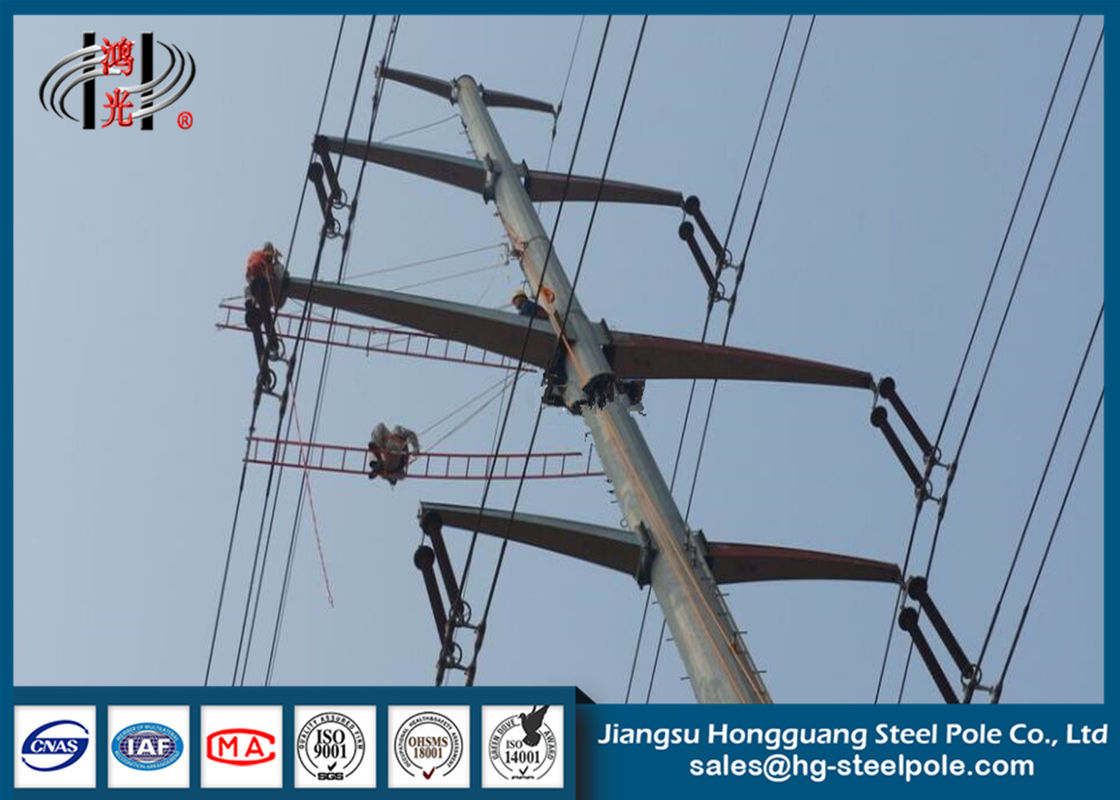

Steel Tubular pole for Electrical Distribution over headline project Q235
· Steel Tubular pole for Electrical Distribution over headline project Q235
|Type||· Suspension Pole, Tensile Pole, Strain Pole , Angle Pole, Dead-end Pole, etc|
|Voltage Grade||· 10KV, 13.8KV,35KV, 66KV, 110KV,132KV, 220KV|
|Shape||· Octagonal, Dodecagonal, Hexadecagonal, etc|
|Material||·Q345B/A572,Min yield strength>=345MPA
Q235B/A36,Min yield strength>=235MPA
|Wall thickness||· 2~30mm|
|Once Forming||· 16m Once forming without joint|
· Welding complies with AWS D1.1 standard.
· CO2 welding or submerged arc auto methods
· No fissure, scar, overlap, layer or other defects
· Internal and external welding makes the pole more beautiful in shape
· If customers need any other requirements of welding, we also can make adjustment ad your request
|Joint||· Overlap, flange mode.|
|Base plate||· square/round/Polygon with slotted holes for anchor bolt|
|Galvanization||· Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.|
|Life Period||· More than 25 years, it is according to installing environment|
|Advantages||· Short construction cycle, less land occupation, low overall cost and easy maintenance.|
As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole have many advantages, such as: weather resistance, anti-corrosion, cost effective, environmentally friendly property, easy installation and maintaince and safety.
JIANGSU HONGGUANG STEEL POLE CO., LTD.
With over 15 Years of Experience/ Capable to Handle Volume Orders
Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various steel structures. We manufacture a variety of products like Electrical Poles and Substation Structures for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telecommunication Monopole Towers for the telecommunication industry; Traffic Poles & Camera Poles & Advertising Structures for transportation Industry and Advertising Industry.
Please feel free to contact us!
