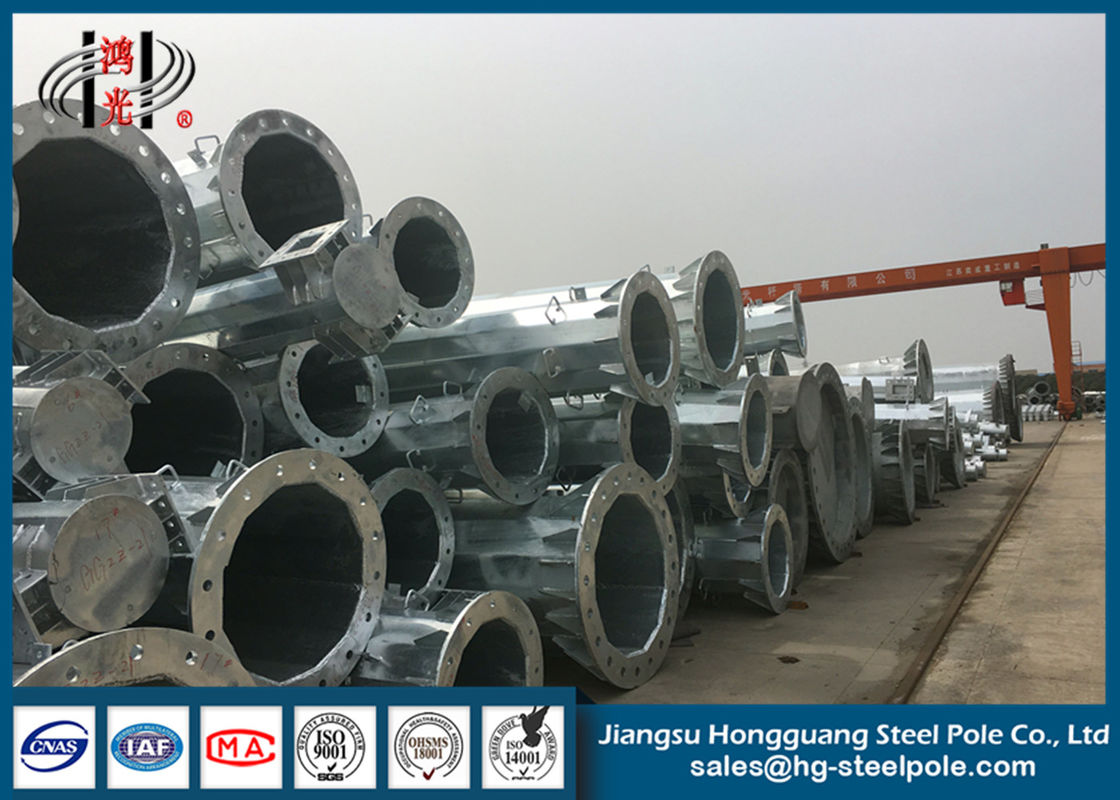

AWS D 1.1 Polygonal Electric Power Poles with Cross Arms for Overhead Project 30m Height

AWS D 1.1 Polygonal Electric Power Poles with Cross Arms for Overhead Project 30m Height

    • AWS D 1.1 Polygonal Electric Power Poles with Cross Arms for Overhead Project 30m Height
    • AWS D 1.1 Polygonal Electric Power Poles with Cross Arms for Overhead Project 30m Height
    • AWS D 1.1 Polygonal Electric Power Poles with Cross Arms for Overhead Project 30m Height
  • AWS D 1.1 Polygonal Electric Power Poles with Cross Arms for Overhead Project 30m Height

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP-69KV

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Voltage Grade: 10-110KV MOQ: One 40HQ
    Shape: Octagonal / Round / Polygonal / Conical / Tubular / Tapered Thickness: 2.3-5mm
    Material: Q235, Q345, Q420, Q460, Gr.50, Gr.65 Appearance Treatment: Hot Dip Galvanized
    Height: 30m

    AWS D 1.1 Polygonal Electric Power Tubular Poles with Cross Arms for Overhead Project



    Specifications:



    Type

    • Electric Power Transmission Pole

    Shape

    • Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

    Material

    • Hot Roll Steel Q235, Q345, ASTM A527 A36, GR50 and others equivalent steel material

    Once Forming

    • 16m Once forming without joint

    Welding



    • CO2 welding or submerged arc auto methods
    • Welding complies with AWS D1.1 standard.
    • No overlap, layer, fissure, scar or other defects
    • Internal and external welding makes the pole more beautiful in shape
    • If customers need any other requirements of welding, we also can make adjustment ad your request

    Joint

    •  Joint with insert mode.

    Base plate

    • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

    Galvanization

    • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

    Life Period

    • More than 25 years, it is according to installing environment

    Advantages

    • Short Construction Cycle
    • ODM & OEM are available
    • Less Land Occupation
    • Easy Installation and Maintenance
    • Low Overall Cost
    • Weather Resistance
    • Anti-corrosion
    • Capable to Handle Volume Orders
    • Provide Professional Design by Our Experienced R&D Engineers


    Description:


    Philippines is one of our major overseas market. Their major type is direct buried pole.

    In order to meet the increasingly higher demand for steel poles, our company design and produce many kinds of steel poles for the power transmission and distribution system. Besides, our electrical steel poles have been tested and approved by the Transmission Pole Tower Testing Station.



    Hot Dip Galvanized Electrical Power Steel Tubular Poles plays an important role in electrical power transmission and distribution industry.As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.



    Material

    we purchase steel plate from famous mill factory with mill certificate issued with stamp and signature.

    AWS D 1.1 Polygonal Electric Power Poles with Cross Arms for Overhead Project 30m Height



    Quality Control Management

    JSHG has passed the ISO9001quality management system. Besides,it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, screen display universal testing machine,ultrasonic detection system, photoelectric emission spectrum analyzer, as well as carbon and sulfur microcomputer analyzer etc.

    Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.





    AWS D 1.1 Polygonal Electric Power Poles with Cross Arms for Overhead Project 30m Height  AWS D 1.1 Polygonal Electric Power Poles with Cross Arms for Overhead Project 30m Height



    Packaging & Shipping



    AWS D 1.1 Polygonal Electric Power Poles with Cross Arms for Overhead Project 30m Height



    AWS D 1.1 Polygonal Electric Power Poles with Cross Arms for Overhead Project 30m Height



    Production Process


    Raw material test → Cutting →Bending →Forming Operation→Seam Welding →Fitting Wealding→Welding Inspection →Pre-assemble for Semi-finished Products → Galvanizing→ Straightening →  Pre-assemble →Packing & Delivery



    Our Services

    •   Factory Direct Sale
    •   More than 15 Years Design & Manufacture Experience
    •   Reply within 24 Working Hours
    •   Capable to Handle Volume Orders
    •   High-Quality and Low-Price Products
    •   Rich Exporting Experience
    •   Provide Professional Design by Our Experienced R&D Engineers
    •   ODM, OEM Acceptable
    •   Technical Support by E-mail
    •   Calling service


    Please feel free to contact us!



    10-500KV Hot Dip Galvanized Electrical Power Steel Tubular Pole for Power Transmission and Distribution Line.pdf
