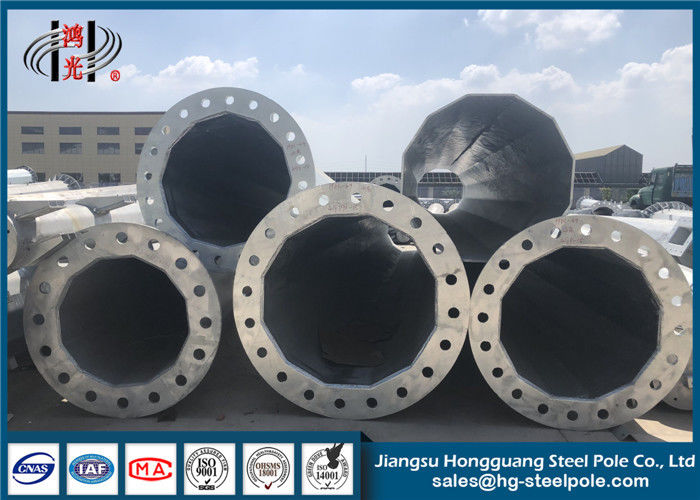

Q235 ISO 9001 Steel Transmission Pole For Transmission Lines And Distribution Line Project

Q235 ISO 9001 Steel Transmission Pole For Transmission Lines And Distribution Line Project

    • Q235 ISO 9001 Steel Transmission Pole For Transmission Lines And Distribution Line Project
    • Q235 ISO 9001 Steel Transmission Pole For Transmission Lines And Distribution Line Project
  • Q235 ISO 9001 Steel Transmission Pole For Transmission Lines And Distribution Line Project

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Voltage Grade: 10~500KV Steel Pole (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV Or Others ) Application: Distribution Line Project
    Shape: Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc) Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
    Painting: According To Clients' Request Appearance Treatment: Hot-dip Galvanized / Painting
    Joint Of Poles: Insert Mode,innerflange Mode,face To Face Joint Mode Wall Thickness: 2.3-18mm


    Q235 ISO 9001 Transmission Steel Tubular Pole for Transmission Lines and Distribution Line Project



    Product Description:

    The Suspension Pole, Strain Pole, Angle Pole in Hot Dip Galvanized in Hot Dip Galvanization was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.



    Product Specification:

    Products

    • Q235 ISO 9001 Transmission Steel Tubular Pole for Transmission Lines and Distribution Line Project

    Application

    • Distribution Line Project

    Voltage Grade

    • 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )

    Once Forming

    • 16m Once forming without joint

    Connection structure



    • Overlap / flange connection

    Shape

    • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)

    Welding

    • According to AWS D 1.1, CO2 welding or submerged arc auto methods

    Joint

    • Joint with insert mode, flange mode.

    Certificate

    • ISO9001-2008

    Painting

    • According to clients' request



    Product Advantages:

    1).Short Construction Cycle
    2).Low Overall Cost
    3).Easy Installation and Maintenance
    4).Weather Resistance
    5).Anti-corrosion
    6).More than 15 Years Design & Manufacture Experience
    7).Capable to Handle Volume Orders
    8).Provide Professional Design by Our Experienced R&D Engineers
    9).Rich Exporting Experience
    10).ODM, OEM Acceptable
    11).Technical Support by E-mail



    Application Scope:

    Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

    Q235 ISO 9001 Steel Transmission Pole For Transmission Lines And Distribution Line Project



    Packaging&Shipping:

    * Covered by Plastic Wrap or Mat or according to client's requests.
    * The Loading Pcs of Each Container could be calculated according to client's specification and data.

    Q235 ISO 9001 Steel Transmission Pole For Transmission Lines And Distribution Line Project



    Company Information:


    JIANGSU HONGGUANG STEEL POLE CO., LTD.
    With over 15 Years of Experience/ Capable to Handle Volume Orders
    Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
    Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.

    “Design and technology,professional and common, software and hardware” is JSHG‘s substation structure design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.



    Features:

    1.We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
    2.Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3
    3.deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.
    4.Packing: Plastic bulble , Mat &Straw Bale or following client required
    5.Length : within 16meters once forming( single section)
    6.Thickness: from 1mm to 25mm
    7.Shape: polygonal(6-side,8side,12-side,16side) round tapered.
    8. 110KV to 220kv
    9.Easy install and maintenance.
