Hot Roll Steel Superior Hop Dip Galvanised Poles / Tubular Steel Tower

Hot Roll Steel Superior Hop Dip Galvanised Poles / Tubular Steel Tower

    • Hot Roll Steel Superior Hop Dip Galvanised Poles / Tubular Steel Tower
    • Hot Roll Steel Superior Hop Dip Galvanised Poles / Tubular Steel Tower
  • Hot Roll Steel Superior Hop Dip Galvanised Poles / Tubular Steel Tower

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Voltage Grade: 110KV Steel Pole Application: Power Transmission And Distribution Line
    Shape: Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc) Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
    Painting: According To Clients' Request Joint Of Poles: Insert Mode,inner Flange Mode,face To Face Joint Mode
    Wall Thickness: 4mm Certificate: ISO9001-2008 , AAA Credit Rating, Etc
    High Light:

    galvanised steel poles

    ,

    mono pole tower

    Hot Roll Steel Superior Hop Dip Galvanized Steel Tubular Pole Tubular Steel Tower

    Product Description:

    The material is in accordance with NF EN 10025 Standard and NF EN 10149 Standard,it has the following property.
    - Yield Strength=355N/mm2
    - Toughness remains the same under 20 degrees below zero.
    - Galvanization is in accordance with NFA35503 Standard Class 1.

    Product Specification:

    Products
    • Hot Roll Steel Superior Hop Dip Galvanized Steel Tubular Pole Tubular Steel Tower
    Application
    • Power transmission and distribution Line
    Voltage Grade
    • 110KV
    Once Forming
    • 16m Once forming without joint
    Connection structure



    • Overlap / flange connection
    Shape
    • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
    Production Process
    • Raw material test → Cutting →Molding or bending →Welding
      (longitudinal )→Dimension verify →Flange welding →Hole drilling
      →Calibration→ Deburr →Galvanization or powder coating ,painting
      →Recalibration →Thread →Packages
    Life Period
    • More than 25 years, it is according to installing environment

    Base plate

    • Base plate of substation structure is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

    Material

    • Hot roll steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, etc.

    Product Advantages:

    1). Short Construction Cycle
    2). Low Overall Cost
    3). Easy Installation and Maintenance
    4). Weather Resistance
    5). Anti-corrosion
    6). More than 15 Years Design & Manufacture Experience
    7). Capable to Handle Volume Orders
    8). Provide Professional Design by Our Experienced R&D Engineers
    9). Rich Exporting Experience
    10). ODM, OEM Acceptable
    11). Technical Support by E-mail

    Application Scope:

    As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel tubular pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.

    Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

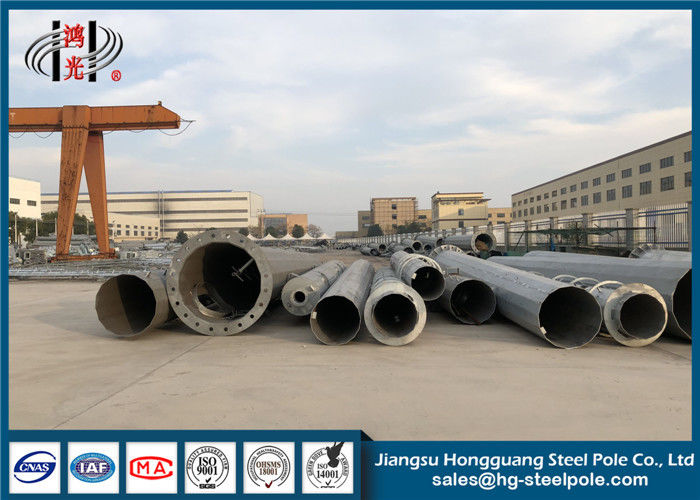

      Hot Roll Steel Superior Hop Dip Galvanised Poles / Tubular Steel Tower 0

    Packaging&Shipping:

    Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.

    Features:

    1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

    2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

    3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

    4. Packing: Plastic bulble , Mat &Straw Bale or following client required

    5. Length : within 16meters once forming( single section)

    6. Thickness: from 1mm to 25mm

    7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

    Hot Roll Steel Superior Hop Dip Galvanised Poles / Tubular Steel Tower 1
