ISO Hot Dip Galvanized Telecommunication Towers 2.3-18mm Wall Thickness
  • ISO Hot Dip Galvanized Telecommunication Towers 2.3-18mm Wall Thickness
  • ISO Hot Dip Galvanized Telecommunication Towers 2.3-18mm Wall Thickness

ISO Hot Dip Galvanized Telecommunication Towers 2.3-18mm Wall Thickness

Place of Origin China
Brand Name JSHG
Model Number HG-SP
Product Details
Certification:
ISO9001:2008
Welding:
Hot Dip Galvanized Customizable Broadcast Telecommunication Towers Signal Pole
Appearance Treatment:
Hot-dip Galvanized / Painting
Applications:
Telecommunication, Broadcasting, Etc
Material:
Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 And Others
Shape:
Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc)
Connection Structure:
Overlap/flange Connection
Wall Thickness:
2.3-18mm
High Light:

communications towers

,

antenna poles towers

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

Hot Dip Galvanized Customizable Broadcast Telecommunication Towers Signal Pole



Product Description:

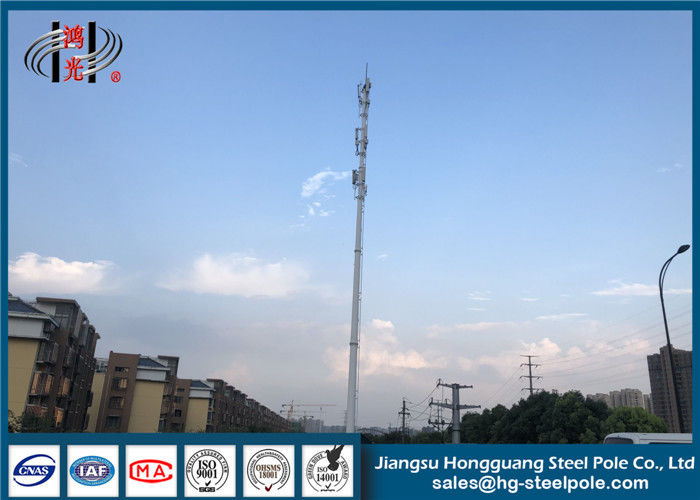

Steel monopole telecommunication tower consists of tower body and platform. There is an opening on the bottom level of tower body and another opening up to the same level with platform. The ladder is fixed to the handrail of platform. Monopole is characterized by the ladder and feeders which are installed inside the tower body. Protected from the wind and rain and other natural environmental destructive factors, it is convenient for maintenance and long-life use.

ISO Hot Dip Galvanized Telecommunication Towers 2.3-18mm Wall Thickness 0



Product Specification:

Products
  • Hot Dip Galvanized Customizable Broadcast Telecommunication Towers Signal Pole
Application
  • Telecommunication, Broadcasting, etc
Material
  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material

Welding
  • Welding of telecommunication tower complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding makes telecommunication tower more beautiful in shape
  • If customers need any other requirements of welding on telecommunication tower , we also can make adjustment ad your request
Wind Speed
  • Against wind pressure of 120Km/h to 180Km/h, according to client’s design.
Painting color
  • ( RAL ) Color card or customized
Base plate
  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client's requirement.
Quality Control
  • According to ISO9001-2008 requirements.
Once Forming
  • 16m Once forming without joint
Life Period
  • More than 25 years, it is according to installing environment

ISO Hot Dip Galvanized Telecommunication Towers 2.3-18mm Wall Thickness 1



Product Advantages:


1).Short Construction Cycle
2).Low Overall Cost
3).Easy Installation and Maintenance
4).Weather Resistance
5).Anti-corrosion
6).More than 15 Years Design & Manufacture Experience
7).Capable to Handle Volume Orders
8).Provide Professional Design by Our Experienced R&D Engineers
9).Rich Exporting Experience
10).ODM, OEM Acceptable
11).Technical Support by E-mail





Application Scope:

The communication tower is composed of steel components such as tower body, platform, lightning rod, ladder, antenna support, etc., and is treated by hot-dip galvanizing and anti-corrosion treatment. It is mainly used for transmission and transmission of microwave, ultrashort wave and wireless network signals.



Packaging&Shipping:

* Covered by Plastic Wrap or Mat or according to client's requests.

* The Loading Pcs of Each Container could be calculated according to client's specification and data.



Company Information:
JIANGSU HONGGUANG STEEL POLE CO., LTD.
With over 15 Years of Experience/ Capable to Handle Volume Orders
Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.



Manufacturing:

Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.



Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.



ISO Hot Dip Galvanized Telecommunication Towers 2.3-18mm Wall Thickness 2
