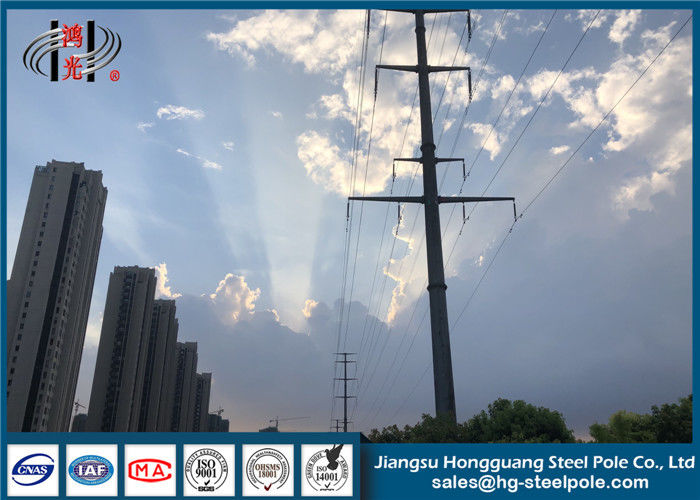

10-500KV Electric Power Pole Transmission Line Tubular Steel Pole Long Life

10-500KV Electric Power Pole Transmission Line Tubular Steel Pole Long Life

    • 10-500KV Electric Power Pole Transmission Line Tubular Steel Pole Long Life
    • 10-500KV Electric Power Pole Transmission Line Tubular Steel Pole Long Life
  • 10-500KV Electric Power Pole Transmission Line Tubular Steel Pole Long Life

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Power Capacity: 10-500KV Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
    Material: Hot Roll Steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, Etc. Certificates: ISO9001-2008 , AAA Credit Rating, Etc
    Welding Standard: AWS(American Welding Society)D 1.1 Wall Thickness: 2.3-18mm
    Life Period: More Than 25 Years, It Is According To Installing Environment

    Hot Dip Galvanized Steel Structure Electric Power Pole Transmission Line Tubular Steel Pole



    Product Description:

    1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc
    2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.
    3) Finish: Hot-dip galvanized in accordance with ASTM A123. Min Zinc Coating 86 microns.
    4) Pole Height: Transmission pole ≥ 15M
    5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
    6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)
    7) Surface hot-dip-galvanized and sometimes with Bituminous Painting as customer's request.
    8) Resistant: against earthquake of 8.8 grade. Wind speed as design.
    9) Quality Standard: ISO9001:2000,AAA credit rating
    10) Easy install and maintenance



    Product Specification:

     Products

    • Hot Dip Galvanized Steel Structure Electric Power Pole Transmission Line Tubular Steel Pole

    Application

    • Transmission line

    Voltage Grade

    • 10KV ~ 500KV

    Production Process

    • Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages

    Length of per section

    • Within 12m once forming without slip joint

    Base plate

    • Base plate of galvanized steel power pole is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

    Tolerance of the dimension

    • According to client’s requirement

    Joint of Poles

    • Insert mode ,inner flange mode ,face to face joint mode .

    Voltage Grade

    • 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )

    Joint of Poles

    • Slip joint, flanged connected



    Product Advantages:

    1).Short Construction Cycle
    2).Less Land Occupation
    3).Low Overall Cost
    4).Easy Installation and Maintenance
    5).Weather Resistance
    6).Anti-corrosion
    7).ODM & OEM are available
    8).Capable to Handle Volume Orders
    9).Provide Professional Design by Our Experienced R&D Engineers



    Application Scope:

    Electric power tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

    10-500KV Electric Power Pole Transmission Line Tubular Steel Pole Long Life

    Packaging&Shipping:

    * Covered by Plastic Wrap or Mat or according to client's requests.
    * The Loading Pcs of Each Container could be calculated according to client's specification and data.



    Company Information:
    10-500KV Electric Power Pole Transmission Line Tubular Steel Pole Long Life
    JIANGSU HONGGUANG STEEL POLE CO., LTD.
    With over 15 Years of Experience/ Capable to Handle Volume Orders
    Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
    Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.
