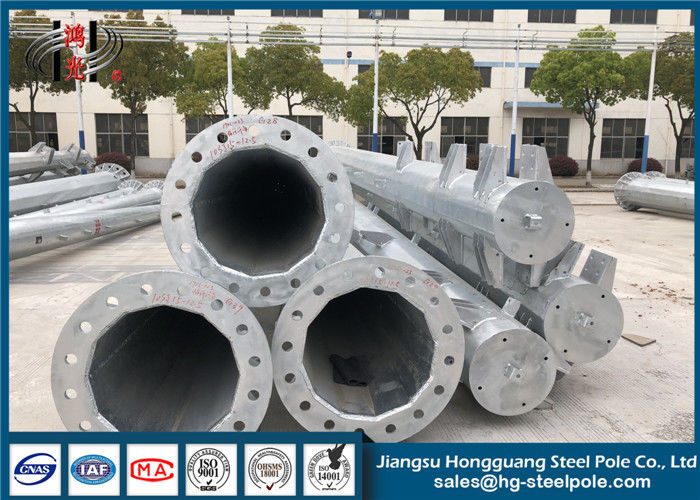

Steel Hot Dip Galvanized Electrical Power Pole For Transmission Line Project

Steel Hot Dip Galvanized Electrical Power Pole For Transmission Line Project

    • Steel Hot Dip Galvanized Electrical Power Pole For Transmission Line Project
    • Steel Hot Dip Galvanized Electrical Power Pole For Transmission Line Project
  • Steel Hot Dip Galvanized Electrical Power Pole For Transmission Line Project

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Voltage Grade: 10-500KV Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
    Material: Hot Roll Steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, Etc. Certificates: ISO9001-2008 , AAA Credit Rating, Etc
    Painting: According To Clients' Request Wall Thickness: 2.3-18mm
    Life Period: More Than 25 Years, It Is According To Installing Environment Shape: Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc)



    Steel Hot Dip Galvanized Electric Post Electrical Power Pole for Transmission Line Project



    Product Description:

    The Low Voltage Single Circuit Electric Steel Power Pole in Hot Dip Galvanization was designed as customer's request. For transmission Line and distribution network use. We have the type with burial type or Base Plate use Anchor Bolts to Install. And exceed 12m the pole will be designed in 2 sections and connection mode use slip joint or flange. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

    The hot-dip galvanization technique could protect steel poles from corrosion for as long as 50 years.As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilized to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.



    Product Specification:

     Products

    • Steel Hot Dip Galvanized Electric Post Electrical Power Pole for Transmission Line Project

    Application

    • Transmission power

    Voltage Grade

    • 10KV ~ 500KV

    Welding

    • Welding of galvanized steel power pole complies with AWS D1.1 standard.
    • CO2 welding or submerged arc auto methods
    • No fissure, scar, overlap, layer or other defects
    • Internal and external welding makes the galvanized steel power pole more beautiful in shape
    • If customers need any other requirements of welding, we also can make adjustment ad your request

    Length of per section

    • Within 12m once forming without slip joint

    Base plate

    • Base plate of galvanized steel power pole is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

    Thickness

    • 2 mm to 30 mm

    Joint of Poles

    • Insert mode ,inner flange mode ,face to face joint mode .

    Voltage Grade

    • 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )

    Certificates

    • ISO9001-2008 , AAA credit rating, etc



    Product Advantages:

    A. Management team: We have a professional design team to provide services for customers. Provide design drawings.

    B. ISO 9001:2008 certificate provided .

    C. QC Inspection: We have an inspector team to inspect the whole production line, and each pole should be inspected in accordance with the drawing, to make sure all poles are passed before delivery.




    Application Scope:

    Electric power tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.



    Packaging&Shipping:

    * Covered by Plastic Wrap or Mat or according to client's requests.

    * The Loading Pcs of Each Container could be calculated according to client's specification and data.



    Company Information:
    Steel Hot Dip Galvanized Electrical Power Pole For Transmission Line Project
    JIANGSU HONGGUANG STEEL POLE CO., LTD.
    With over 15 Years of Experience/ Capable to Handle Volume Orders
    Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
    Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.
