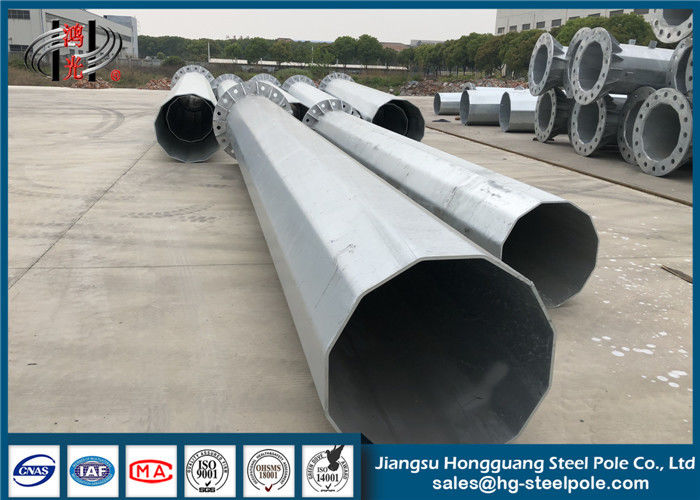

Anti Rust Design Steel Tubular Pole , Hot Dip Galvanized Electrical Power Pole

Anti Rust Design Steel Tubular Pole , Hot Dip Galvanized Electrical Power Pole

    • Anti Rust Design Steel Tubular Pole , Hot Dip Galvanized Electrical Power Pole
    • Anti Rust Design Steel Tubular Pole , Hot Dip Galvanized Electrical Power Pole
  • Anti Rust Design Steel Tubular Pole , Hot Dip Galvanized Electrical Power Pole

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Voltage Grade: 10KV ~ 500KV Application: Power Transmission And Distribution Line
    Shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, Etc Once Forming: 16m Once Forming Without Joint
    Painting: According To Clients' Request Certificates: ISO9001-2008 , AAA Credit Rating, Etc
    Joint Of Poles: Insert Mode,innerflange Mode,face To Face Joint Mode Appearance Treatment: Hot-dip Galvanized / Painting



    Anti-rust Design Load Power Hot Dip Galvanized Electrical Power Pole Steel Tubular Pole



    Product Description:

    1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc
    2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.
    3) Finish: Hot-dip galvanized in accordance with ASTM A123. Min Zinc Coating 86 microns.
    4) Pole Height: Transmission pole ≥ 15M
    5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
    6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)






    Product Specification:

    Products
    • Anti-rust Design Load Power Hot Dip Galvanized Electrical Power Pole Steel Tubular Pole
    Application
    • Transmission line project
    Voltage Grade
    • 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
    Appearance Treatment
    • Hot-dip galvanized / painting
    Galvanization



    • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
    Shape
    • Round / polygonal / Conical / Tubular
    Welding
    • According to AWS D 1.1, CO2 welding or submerged arc auto methods
    Base plate
    • Base plate of galvanized steel power pole is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.
    Surface treatment
    • Hot dip galvanized Following ASTM A 123,
      color polyester power or any other standard by client required
    Painting
    • According to clients' request



    Product Advantages:

    A. Management team: We have a professional design team to provide services for customers. Provide design drawings.
    B. ISO 9001:2008 certificate provided .
    C. QC Inspection: We have an inspector team to inspect the whole production line, and each pole should be inspected in accordance with the drawing, to make sure all poles are passed before delivery.



    Application Scope:

    As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel tubular pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.


    Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

    Anti Rust Design Steel Tubular Pole , Hot Dip Galvanized Electrical Power Pole



    Packaging&Shipping:

    * Covered by Plastic Wrap or Mat or according to client's requests.
    * The Loading Pcs of Each Container could be calculated according to client's specification and data.



    Company Information:

    Anti Rust Design Steel Tubular Pole , Hot Dip Galvanized Electrical Power Pole

    JIANGSU HONGGUANG STEEL POLE CO., LTD.
    With over 15 Years of Experience/ Capable to Handle Volume Orders
    Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
    Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.

    “Design and technology,professional and common, software and hardware” is JSHG‘s substation structure design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.



    Engineering and Design Management:

    “Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
