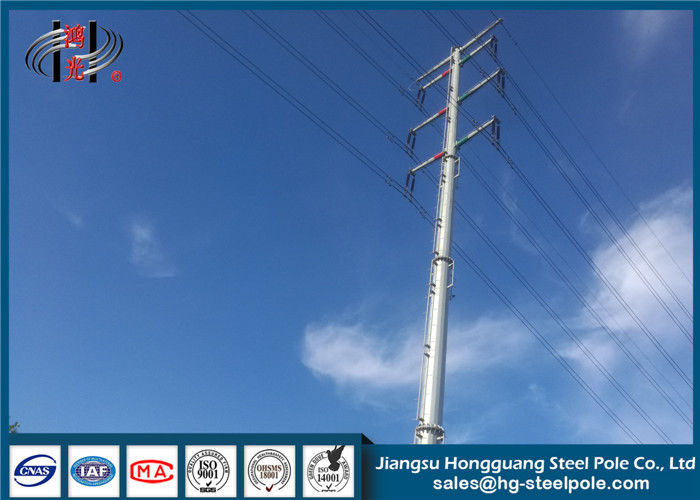

69KV - 220KV Design Load Power Transmission Pole For Overhead Transmission Line Project

69KV - 220KV Design Load Power Transmission Pole For Overhead Transmission Line Project

    • 69KV - 220KV Design Load Power Transmission Pole For Overhead Transmission Line Project
    • 69KV - 220KV Design Load Power Transmission Pole For Overhead Transmission Line Project
    • 69KV - 220KV Design Load Power Transmission Pole For Overhead Transmission Line Project
    • 69KV - 220KV Design Load Power Transmission Pole For Overhead Transmission Line Project
  • 69KV - 220KV Design Load Power Transmission Pole For Overhead Transmission Line Project

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Voltage Grade: 69KV ~ 220KV Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
    Material: Hot Roll Steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, Etc. Certificates: ISO9001-2008 , AAA Credit Rating, Etc
    Connection Structure: Overlap / Flange Connection Certificate: ISO9001-2008
    Wall Thickness: 2.3-18mm Shape: Round / Polygonal / Conical / Tubular

    69KV - 220KV Design Load Power Transmission Pole For Overhead Transmission Line Project

    Product Description:

    Electrical power pole mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.



    Product Specification:

    Products
    • 69KV - 220KV Design Load Power Transmission Pole for Overhead Transmission Line Project
    Application
    • Overhead Transmission Line Project
    Voltage Grade
    • 69KV ~ 220KV
    Welding
    • Welding of substation structure complies with AWS D1.1 standard.
    • CO2 welding or submerged arc auto methods
    • No fissure, scar, overlap, layer or other defects
    • Internal and external welding makes structure more beautiful in shape
    • If customers need any other requirements of welding, we also can make adjustment ad your request
    Quality Standard
    • ISO9001-2008
    Base plate
    • Base plate of galvanized steel power pole is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.
    Galvanization
    • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
    Life Period
    • More than 25 years, it is according to installing environment
    Material
    • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material
    Certificates
    • ISO9001-2008 , AAA credit rating, etc



    Product Advantages:

    The hot-dip galvanization technique could protect steel poles from corrosion for as long as 50 years.As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilized to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.





    Application Scope:

    Electric power tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

    69KV - 220KV Design Load Power Transmission Pole For Overhead Transmission Line Project



    Packaging&Shipping:

    * Covered by Plastic Wrap or Mat or according to client's requests.

    * The Loading Pcs of Each Container could be calculated according to client's specification and data.

    69KV - 220KV Design Load Power Transmission Pole For Overhead Transmission Line Project



    Company Information:

    69KV - 220KV Design Load Power Transmission Pole For Overhead Transmission Line Project
    JIANGSU HONGGUANG STEEL POLE CO., LTD.
    With over 15 Years of Experience/ Capable to Handle Volume Orders
    Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
    Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.



    Engineering and Design Management:

    In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.



    Since the establishment, JSHG have put forward thousands of design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.
