RAL Painted Hot Dip Galvanized Steel Tubular Pole For Distribution Line Project

RAL Painted Hot Dip Galvanized Steel Tubular Pole For Distribution Line Project

  • RAL Painted Hot Dip Galvanized Steel Tubular Pole For Distribution Line Project
  • RAL Painted Hot Dip Galvanized Steel Tubular Pole For Distribution Line Project
RAL Painted Hot Dip Galvanized Steel Tubular Pole For Distribution Line Project
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Delivery Time: 1 week
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Voltage Grade: 10~500KV Steel Pole (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV Or Others ) Application: Distribution Line Project
Shape: Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc) Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Certificate: ISO9001-2008 Appearance Treatment: Hot-dip Galvanized
Joint Of Poles: Insert Mode,innerflange Mode Wall Thickness: 2.3-18mm
High Light:

galvanised steel poles

,

mono pole tower





RAL Painted Hot Dip Galvanized Steel Tubular Pole Coating Octagonal Pole for Distribution Line Project



Product Description:

The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.
But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :
- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.



Product Specification:

Products
  • RAL Painted Hot Dip Galvanized Steel Tubular Pole Coating Octagonal Pole for Distribution Line Project
Application
  • Distribution Line Project
Voltage Grade
  • 10~500KV
Once Forming
  • 16m Once forming without joint
Connection structure



  • Overlap / flange connection
Shape
  • Conical, Round, Polygonal, etc.
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Joint
  • Joint with insert mode, flange mode.
Material
  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material
Painting
  • According to clients' request



Product Advantages:

The Hot Dip Galvanized Electrical Power Steel Tubular Pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station.

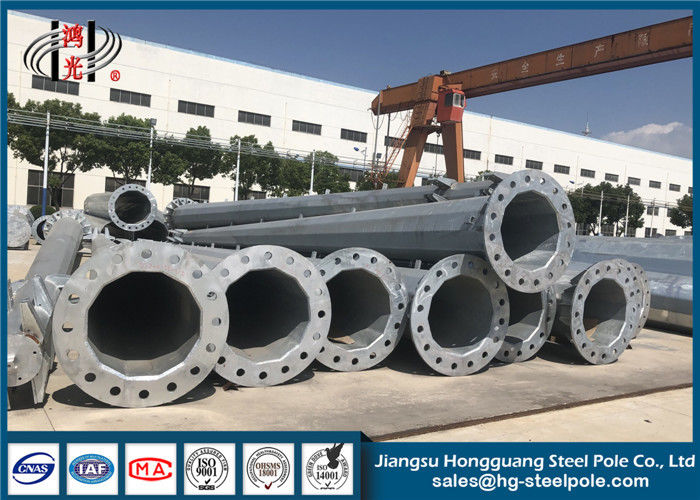

RAL Painted Hot Dip Galvanized Steel Tubular Pole For Distribution Line Project 0



Application Scope:

Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.



Packaging&Shipping:

Our poles as normal are covered by Mat or straw bale at the top and bottom and woods between the poles can avoid the damage of the galvanization on the surface of steel poles, anyway also we can follow clients required , The loading capacity of 20GP 40HC or OT/FR will be calculated basing on the clients’ actual specification and data.

RAL Painted Hot Dip Galvanized Steel Tubular Pole For Distribution Line Project 1



Company Information:


JIANGSU HONGGUANG STEEL POLE CO., LTD.
With over 15 Years of Experience/ Capable to Handle Volume Orders
Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various structures. We manufacture a variety of products like structure and Substation Structure for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.

“Design and technology,professional and common, software and hardware” is JSHG‘s substation structure design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.



Our Services:

1).Reply within 24 Working Hours
2).Factory Direct Sale
3).More than 15 Years Design & Manufacture Experience
4).Capable to Handle Volume Orders
5).High-Quality and Low-Price Products
6).Provide Professional Design by Our Experienced R&D Engineers
7).Rich Exporting Experience
8).ODM, OEM Acceptable
9).Technical Support by E-mail
10).Calling service



Contact Us:

Jiangsu Hongguang Steel Pole Co., Ltd.
Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
Telphone: +86 510 878 441 56
Fax: +86 510 878 435 28
Trade manager ID: cnhgsteelpole
Skype: tangjia870124

Please feel free to contact us!
