Hot Roll Galvanized Hexagon Steel Tubular Pole For Electricity Distribution

Hot Roll Galvanized Hexagon Steel Tubular Pole For Electricity Distribution

  • Hot Roll Galvanized Hexagon Steel Tubular Pole For Electricity Distribution
  • Hot Roll Galvanized Hexagon Steel Tubular Pole For Electricity Distribution
Hot Roll Galvanized Hexagon Steel Tubular Pole For Electricity Distribution
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Delivery Time: 1 week
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Voltage Grade: 13.8KV Steel Pole Application: Electricity Distribution
Shape: Hexagon Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Painting: According To Clients' Request Appearance Treatment: Hot-dip Galvanized / Painting
Wall Thickness: 10mm Certificate: ISO9001-2008
High Light:

galvanised steel poles

,

mono pole tower

Hot Roll Steel Quality Galvanized Hexagon Steel Pole Steel Tubular Pole Electrical Pole

Product Description:

The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

Product Specification:

Products
  • Hot Roll Steel Quality Galvanized Hexagon Steel Pole Steel Tubular Pole Electrical Pole
Application
  • Electricity Distribution
Voltage Grade
  • 10KV
Once Forming
  • 16m Once forming without joint
Connection structure



  • Overlap / flange connection
Shape
  • Hexagon
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Painting
  • According to clients' request

Base plate

  • Base plate of substation structure is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Material

  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material

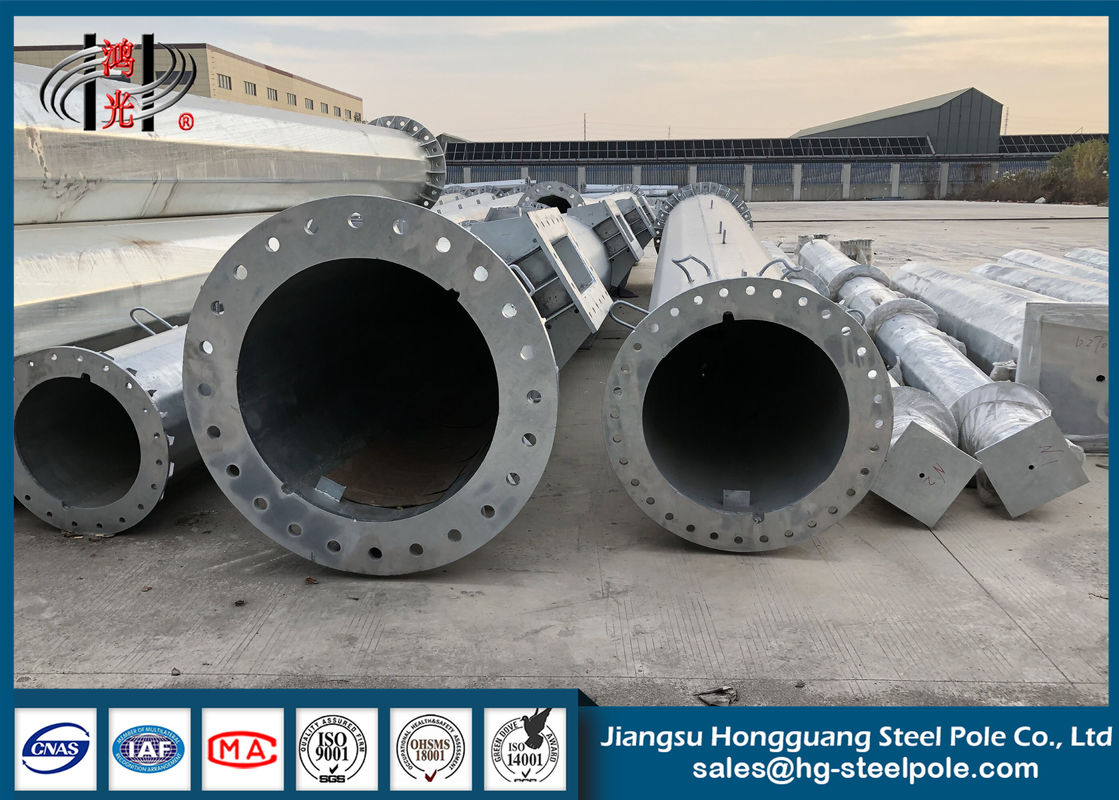

Hot Roll Galvanized Hexagon Steel Tubular Pole For Electricity Distribution 0

Product Advantages:

As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel tubular pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.


Our company has more than 15 years' design & manufacture experence which enable us to handle volume orders with high quality and low cost. In order to provide better service for customers, we promise to reply within 24 Working Hours and technical support by E-mail and calling service."

Hot Roll Galvanized Hexagon Steel Tubular Pole For Electricity Distribution 1

Application Scope:

Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

Packaging&Shipping:

Our poles as normal are covered by Mat or straw bale at the top and bottom and woods between the poles can avoid the damage of the galvanization on the surface of steel poles, anyway also we can follow clients required , The loading capacity of 20GP 40HC or OT/FR will be calculated basing on the clients’ actual specification and data.

Engineering and Design Management:

“Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.



In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.



Since the establishment, JSHG have put forward thousands of design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.
