Durable Stainless Steel Tubular Pole Electrical Post Anti Rust Design Load

Durable Stainless Steel Tubular Pole Electrical Post Anti Rust Design Load

  • Durable Stainless Steel Tubular Pole Electrical Post Anti Rust Design Load
  • Durable Stainless Steel Tubular Pole Electrical Post Anti Rust Design Load
Durable Stainless Steel Tubular Pole Electrical Post Anti Rust Design Load
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Delivery Time: 1 week
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Voltage Grade: 10~500KV Steel Pole (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV Or Others ) Application: Distribution Line Project
Shape: Round / Polygonal / Conical / Tubular Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Painting: According To Clients' Request Connection Structure: Overlap / Flange Connection
Joint Of Poles: Insert Mode,innerflange Mode,face To Face Joint Mode Wall Thickness: 2.3-18mm
High Light:

galvanised steel poles

,

mono pole tower

Anti-rust Design Load Steel Tubular Pole Stainless Steel Pole Electrical Post

Product Description:

The HDG Electrical Steel Tubular Pole was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as the followings :

- Pole top design load
- Where is the position of the load, the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode, use slip joint or flange
- and others can be furthermore discussed when needed.



Product Specification:

Products
  • Anti-rust Design Load Steel Tubular Pole Stainless Steel Pole Electrical Post
Application
  • Power transmission and distribution Line
Voltage Grade
  • 10~500KV
Once Forming
  • 16m Once forming without joint
Shape
  • Round / polygonal / Conical / Tubular
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Joint
  • Joint with insert mode, flange mode.

Painting

  • According to clients' request

Galvanization

  • 15m steel pole is hot dip galvanized in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.



Product Advantages:

A. Management team: We have a professional design team to provide services for customers. Provide design drawings.

B. ISO 9001:2008 certificate provided .

C. QC Inspection: We have an inspector team to inspect the whole production line, and each pole should be inspected in accordance with the drawing, to make sure all poles are passed before delivery.



 Durable Stainless Steel Tubular Pole Electrical Post Anti Rust Design Load 0




Standard Accessories:

- Top Cap
- Butt Plate
- Standard hole on X-X , Y-Y , Z-Z.
- Grounding Nuts & Bolts





Others Standard poles 25FT, 30FT, 35FT, 40FT,45FT



Height

(ft)

Thickness

(mm)

Butt Diameter

(mm)

Tip Diameter

(mm)

Design Load

(kg)

Yield Stress

(MPA)

Zinc Coating

(microns)

25 2.5 152 120 300 345 86
30 3.0 226 127 500 345 86
35 3.0 248 127 500 345 86
40 3.0 317 127 500 345 86
45 3.0 328 127 500 345 86

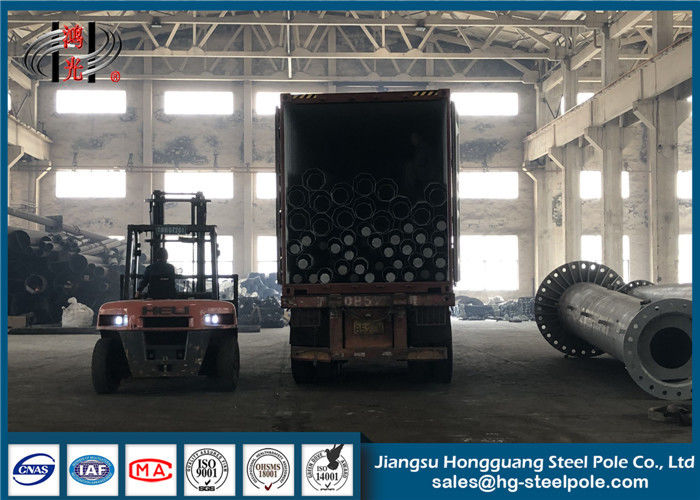

Packaging&Shipping:

* Covered by Plastic Wrap or Mat or according to client's requests.
* The Loading Pcs of Each Container could be calculated according to client's specification and data.

Durable Stainless Steel Tubular Pole Electrical Post Anti Rust Design Load 1



Features:

1.We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2.Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3.deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4.Packing: Plastic bulble , Mat &Straw Bale or following client required

5.Length : within 16meters once forming( single section)

6.Thickness: from 1mm to 25mm

7.Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 110KV to 220kv

9.Easy install and maintenance.
