35FT 3mm Thick Q345 Galvanised Poles 500KG Load Polygonal Transmission

35FT 3mm Thick Q345 Galvanised Poles 500KG Load Polygonal Transmission

  • 35FT 3mm Thick Q345 Galvanised Poles 500KG Load Polygonal Transmission
  • 35FT 3mm Thick Q345 Galvanised Poles 500KG Load Polygonal Transmission
35FT 3mm Thick Q345 Galvanised Poles 500KG Load Polygonal Transmission
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Delivery Time: 1 week
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Voltage Grade: 10KV ~ 500KV Application: Power Transmission And Distribution Line
Shape: Conical, Round, Polygonal, Etc. Once Forming: 16m Once Forming Without Joint
Certificates: ISO9001-2008 , AAA Credit Rating, Etc Joint Of Poles: Insert Mode,innerflange Mode,face To Face Joint Mode
High Light:

galvanised steel poles

,

mono pole tower

35FT 3mm Thick Q345 500KG Load Polygonal Transmission Steel Tubular Pole



Product Description:

The HDG electrical steel tubular pole was designed for Philippines Market which complies with NEA Standard for distribution and transmission Line use. The NEA Standard steel tubular pole is direct buried and connected with slip joint for poles over 12m length.  Re appearance anti-corrosive treatment, the pole is hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.



Product Specification:



Products
  • 35FT 3mm Thick Q345 500KG Load Polygonal Transmission Steel Tubular Pole
Application
  • Transmission line project
Voltage Grade
  • 13.8KV
Galvanization
  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Shape
  • Polygonal / Conical / Tubular
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding makes the pole more beautiful in shape
  • If customers need any other requirements of welding, we also can make adjustment ad your request
Joint
  • Joint with insert mode
Surface treatment
  • Hot dip galvanized Following ASTM A 123,
    color polyester power or any other standard by client required
Painting
  • Bitument painted

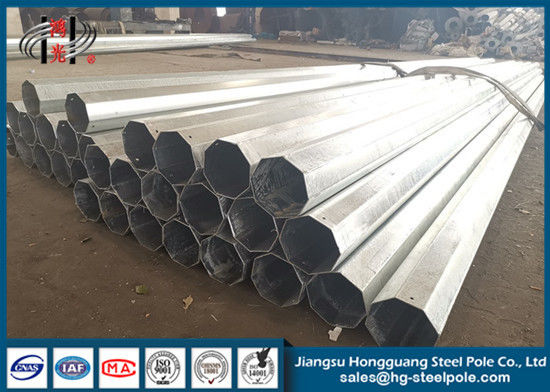

35FT 3mm Thick Q345 Galvanised Poles 500KG Load Polygonal Transmission 0



Product Advantages:



The Hot Dip Galvanized Electrical Power Steel Tubular Pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station.





NEA Standard Specification:



Octagonal Galvanized Steel Pole 25FT, 30FT, 35FT, 40FT,45FT



Height

(ft)

Thickness

(mm)

Butt Diameter

(mm)

Tip Diameter

(mm)

Design Load

(kg)

Yield Stress

(MPA)

Zinc Coating

(microns)

25 2.5 152 120 300 345 86
30 3.0 226 127 500 345 86
35 3.0 248 127 500 345 86
40 3.0 317 127 500 345 86
45 3.0 328 127 500 345 86





Packaging&Shipping:



Normally substation structure are wraped by plastical bags or burlap cloth at the top and bottom, or according to clients requirement.



35FT 3mm Thick Q345 Galvanised Poles 500KG Load Polygonal Transmission 1


FAQ



1. Are you a manufacturer or a trading company?
A:We are the direct factory manufacturer and the trading company.



2. Where is your company located?
A:Our factory is located in Wanshi Industrial Zone,Yixing District, Wuxi City, Jiangsu Province, China(mainland).



3. What are your main products?
A:Our main products are electric poles, street lighting poles, high mast pole, telecommunication tower poles, traffic signal poles, wind generation poles, etc.


4. What's your nearest port?
A: Shanghai Port.



5. What's your payment term?
A: Normally 30% deposit and rest by TT before shipping. Or L/C.
