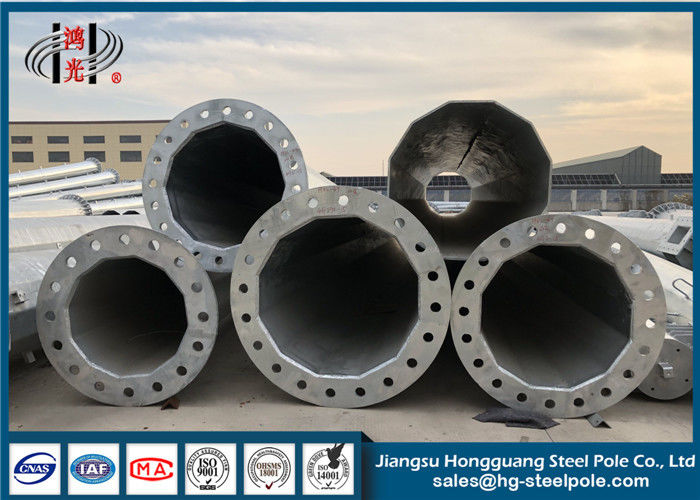

33KV Electric Steel Tubular Pole For Power Transmission , ISO9001-2008 Certificate

33KV Electric Steel Tubular Pole For Power Transmission , ISO9001-2008 Certificate

  • 33KV Electric Steel Tubular Pole For Power Transmission , ISO9001-2008 Certificate
  • 33KV Electric Steel Tubular Pole For Power Transmission , ISO9001-2008 Certificate
  • 33KV Electric Steel Tubular Pole For Power Transmission , ISO9001-2008 Certificate
  • 33KV Electric Steel Tubular Pole For Power Transmission , ISO9001-2008 Certificate
33KV Electric Steel Tubular Pole For Power Transmission , ISO9001-2008 Certificate
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Delivery Time: 1 week
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Voltage Grade: 33KV Application: Power Transmission And Distribution Line
Shape: Round / Polygonal / Conical / Tubular,etc Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Painting: According To Clients' Request Joint Of Poles: Insert Mode,inner Flange Mode,face To Face Joint Mode
Wall Thickness: 2.3mm Certificate: ISO9001-2008
High Light:

galvanised steel poles

,

mono pole tower

33KV Power Transmission Pole Galvanized Steel Pole Electric Steel Tubular Pole

Product Description:

Steel Tubular Poles are non-standard, and normally designed according to its actually project, the affected factor including pole load, wind speed, wire type, etc

The Steel Tubular Poles price is based on its specification, like say different design with different price, normally depend on pole diameter, material, thickness, qty, etc

Product Specification:

Products
  • 33KV Power Transmission Pole Galvanized Steel Pole Electric Steel Tubular Pole
Application
  • Power transmission and distribution Line
Voltage Grade
  • 33KV
Once Forming
  • 16m Once forming without joint
Connection structure



  • Overlap / flange connection
Shape
  • Customizable
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Life Period
  • More than 25 years, it is according to installing environment

Base plate

  • Base plate of substation structure is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Material

  • Hot roll steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, etc.

Product Advantages:

The Hot Dip Galvanized Electrical Power Steel Tubular Pole plays an important role in electrical power transmission and distribution industry. In order to meet the increasingly higher demand for steel tubular pole, our company design and produce many kinds of steel tubular pole for the power transmission and distribution system. Besides, our electrical steel tubular pole have been tested and approved by the Transmission Pole Tower Testing Station.

Application Scope:

As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel tubular pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.

Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

  33KV Electric Steel Tubular Pole For Power Transmission , ISO9001-2008 Certificate 0

Packaging&Shipping:

*  Covered by Plastic Wrap or Mat or according to client's requests.
*  The Loading Pcs of Each Container could be calculated according to client's specification and data.

Manufacturing:

Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.



Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.



After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.

33KV Electric Steel Tubular Pole For Power Transmission , ISO9001-2008 Certificate 1
