220KV Q345 Anti - Corrosive Steel Tubular Pole , Galvanized Light Pole

220KV Q345 Anti - Corrosive Steel Tubular Pole , Galvanized Light Pole

  • 220KV Q345 Anti - Corrosive Steel Tubular Pole , Galvanized Light Pole
  • 220KV Q345 Anti - Corrosive Steel Tubular Pole , Galvanized Light Pole
220KV Q345 Anti - Corrosive Steel Tubular Pole , Galvanized Light Pole
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Delivery Time: 1 week
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Voltage Grade: 10~500KV Steel Pole (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV Or Others ) Application: Distribution Line Project
Shape: Round / Polygonal / Conical / Tubular Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Painting: According To Clients' Request Connection Structure: Overlap / Flange Connection
Joint Of Poles: Insert Mode,innerflange Mode,face To Face Joint Mode Wall Thickness: 2.3-18mm
High Light:

galvanised steel poles

,

mono pole tower

220KV Q345 Anti-corrosive Steel Tubular Pole Electrical Power Pole

Product Description:

1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc

2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.

3) Finish: Hot-dip galvanized in accordance with ASTM A123. Min Zinc Coating 86 microns.

4) Pole Height: Transmission pole ≥ 15M

5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc

6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)



Product Specification:

Products
  • 220KV Q345 Anti-corrosive Steel Tubular Pole Electrical Power Pole
Application
  • Power transmission and distribution Line
Voltage Grade
  • 10~500KV
Once Forming
  • 16m Once forming without joint
Shape
  • Round / polygonal / Conical / Tubular
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Joint
  • Joint with insert mode, flange mode.

Painting

  • According to clients' request

Galvanization

  • 15m steel pole is hot dip galvanized in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.



Product Advantages:

1.Short Construction Cycle
2.Low Overall Cost
3.Easy Installation and Maintenance
4.Weather Resistance
5.Anti-corrosion
6.More than 15 Years Design & Manufacture Experience
7.Capable to Handle Volume Orders
8.Provide Professional Design by Our Experienced R&D Engineers
9.Rich Exporting Experience
10.ODM, OEM Acceptable
11.Technical Support by E-mail

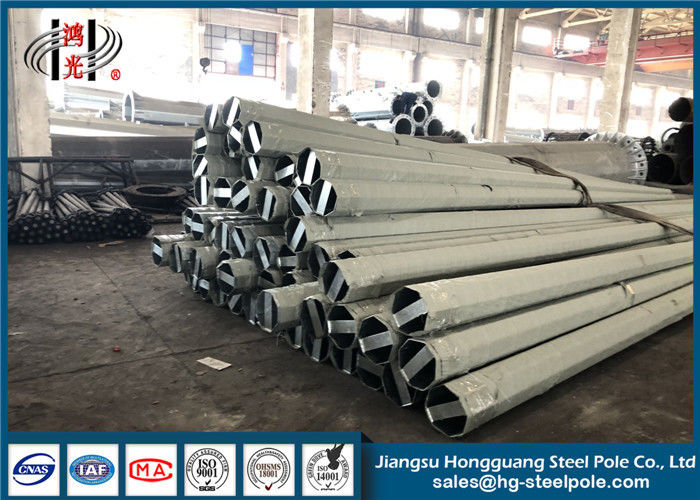

 220KV Q345 Anti - Corrosive Steel Tubular Pole , Galvanized Light Pole 0




Standard Accessories:

- Top Cap
- Butt Plate
- Standard hole on X-X , Y-Y , Z-Z.
- Grounding Nuts & Bolts





Others Standard poles 25FT, 30FT, 35FT, 40FT,45FT



Height

(ft)

Thickness

(mm)

Butt Diameter

(mm)

Tip Diameter

(mm)

Design Load

(kg)

Yield Stress

(MPA)

Zinc Coating

(microns)

25 2.5 152 120 300 345 86
30 3.0 226 127 500 345 86
35 3.0 248 127 500 345 86
40 3.0 317 127 500 345 86
45 3.0 328 127 500 345 86



Packaging&Shipping:

* Covered by Plastic Wrap or Mat or according to client's requests.
* The Loading Pcs of Each Container could be calculated according to client's specification and data.

220KV Q345 Anti - Corrosive Steel Tubular Pole , Galvanized Light Pole 1



Manufacturing:

Raw material: Q235 or Q345 in China. We get the raw material checked in our lab test room. Silicon less than2%. We have carbon and sulfur analyzer to check the elements of the steel sheet. We'll return the steel if they are unqualified. So in this way, we can control the quality of the steel poles from the first beginning.

Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.

After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
