|Place of Origin:||China|
|Minimum Order Quantity:||One 40 HQ Container|
|Delivery Time:||1 week|
|Payment Terms:||L/C, T/T or Western Union|
|Supply Ability:||3,000 Metric Tons per Month|
|Voltage Grade:||10-220KV||Welding:||According To AWS D 1.1, CO2 Welding Standard|
|Shape:||Round / Polygonal / Conical / Tubular / Tapered||Connection Structure:||Flange Connection|
|Application:||Electrical Power Transmission And Distribution Line||Appearance Treatment:||Hot Dip Galvanized|
galvanized steel poles,
galvanised steel poles

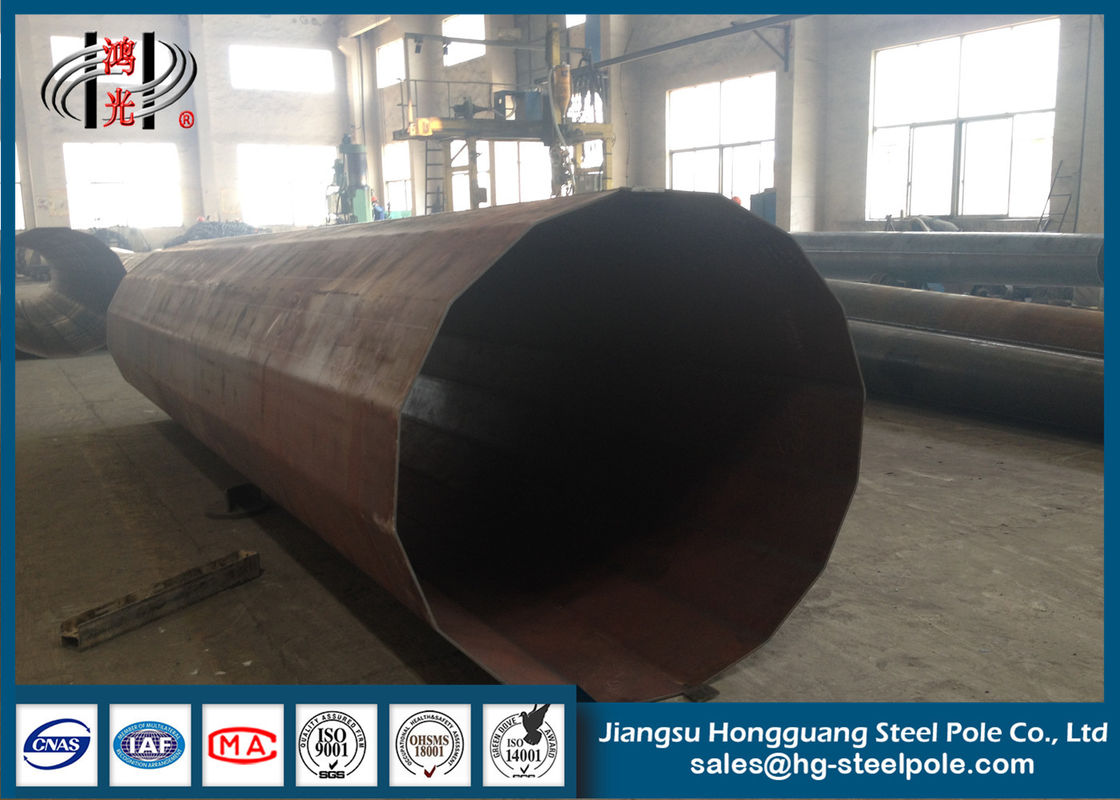

Philippines Direct Burial Steel Tubular Pole 800daN for Transmission Line Project
|Products||· Philippines Direct Burial Steel Tubular Pole 800daN for Transmission Line Project|
|Type||· Suspension Pole, Tensile Pole, Strain Pole , Angle Pole, Dead-end Pole, etc|
|Voltage Grade||· 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )|
|Shape||· Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered|
|Material||·Q345B/A572,Min yield strength>=345MPA
Q235B/A36,Min yield strength>=235MPA
|Wall thickness||· 2~30mm|
|Once Forming||· 16m Once forming without joint|
· Welding complies with AWS D1.1 standard.
· CO2 welding or submerged arc auto methods
· No fissure, scar, overlap, layer or other defects
· Internal and external welding makes the pole more beautiful in shape
· If customers need any other requirements of welding, we also can make adjustment ad your request
|Joint||· Joint with insert mode, flange mode.|
|Base plate||· Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.|
|Galvanization||· Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.|
|Painting||· According to clients' request|
|Life Period||· More than 25 years, it is according to installing environment|
|Advantages||· Short construction cycle, less land occupation, low overall cost and easy maintenance.|
Steel tubular pole have been widely applied in the electrical power transmsion line and distribution industry.
As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole have many advantages, such as: weather resistance, anti-corrosion, cost effective, environmentally friendly property, easy installation and maintaince and safety.
JIANGSU HONGGUANG STEEL POLE CO., LTD.
With over 15 Years of Experience/ Capable to Handle Volume Orders
Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various steel structures. We manufacture a variety of products like Electrical Poles and Substation Structures for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telecommunication Monopole Towers for the telecommunication industry; Traffic Poles & Camera Poles & Advertising Structures for transportation Industry and Advertising Industry.
