Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm

Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm

Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm

Product Details:

Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP-35KV

Payment & Shipping Terms:

Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Packaging Details: Covered by Plastic Wrap or Mat or according to client's requests.
Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Height: 6~60m Welding: According To AWS D 1.1, CO2 Welding Standard
Delivery Time: 2 Weeks Per Container After PO/drawing/prepayment Confirmed Connection Structure: Overlap / Flangeconnection
Joint: Joint With Insert Mode, Flange Mode Wall Thickness: 3-10mm



Octagonal Steel Utility Pole for telecommunication system Q235 3-12mm



Specifications:



Products

  • Octagonal Steel Utility Pole for telecommunication system Q235 3-12mm

Application

  • Telecommunication, broadcasting, etc

Shape

  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagon, etc)
  Height
  • 7 ~ 30m

Material

  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65 and others equivalent steel material

Once Forming

  • 16m Once forming without joint

Welding

  • Welding complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding makes the pole more beautiful in shape
  • If customers need any other requirements of welding, we also can make adjustment ad your request

Joint

  •  Joint with insert mode, flange mode.

Base plate

  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization

  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

Painting

  • According to clients' request

Life Period

  • More than 25 years, it is according to installing environment
 Advantages
  • Short Construction Cycle
  • ODM & OEM are available
  • Less Land Occupation
  • Low Overall Cost
  • Provide Professional Design by Our Experienced R&D Engineers
  • Easy Installation and Maintenance
  • Weather Resistance
  • Anti-corrosion
  • Capable to Handle Volume Orders


Description:



Our steel utility monopole is manufactured by the most advanced production equipments including CNC plate production line, digital controlled drill (Max working aperture is φ80mm), CNC hydraulic bending machine which adopted LVD technology from Belgium and longitudinal welding machine from Lincoln Electric Company. Regarding corrosion resistance measure, we adopt hot dip galvanization technique which ensures service life as long as 50 years. Moreover, all steel utility monopole towers will be trail assembled before delivery which promises the smooth operation on installation site.

The new modelsteel utility monopole has many advantages. It can be powder coated with different colors according to client’s requirement which not only beautify the environment but also prevent the pole from corrosion. What is more, telecommunication monopole tower occupies less land and needs short construction cycle which greatly reduces construction cost, but its easy installation and maintenance shows strong practicability.



Product Details

Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm

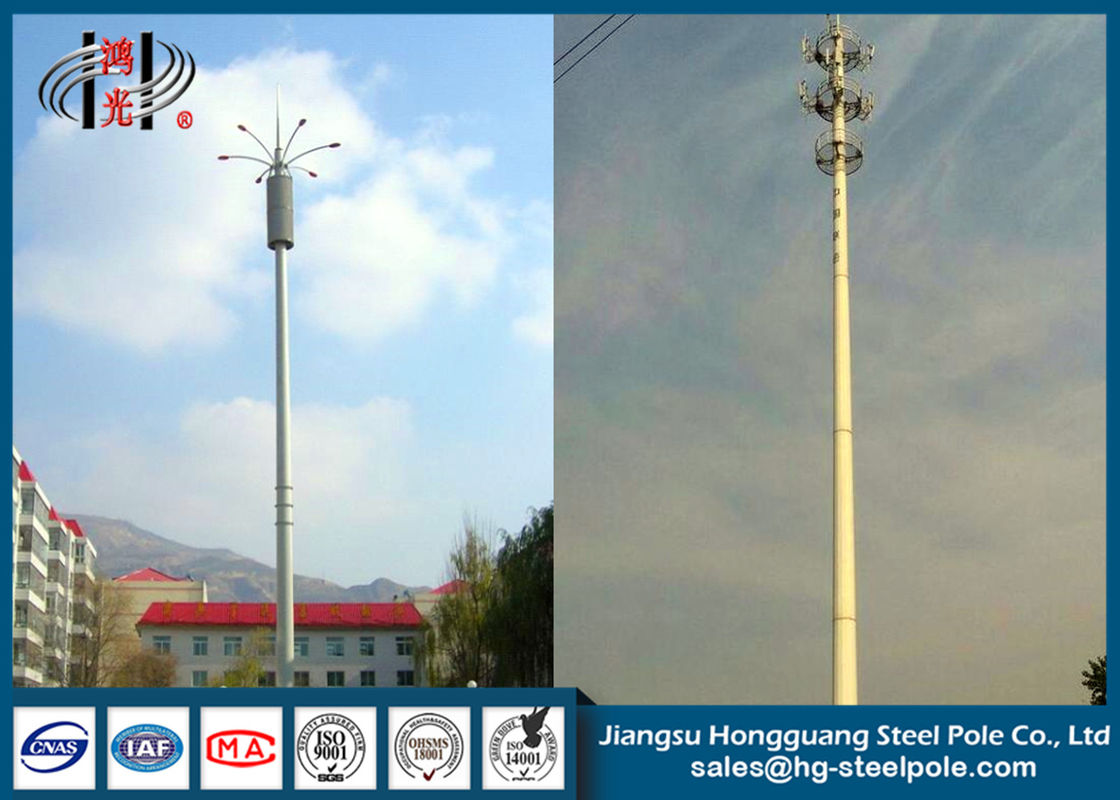

Installation Site



Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm




Production Process Flow Chart



Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm  Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm



Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm  Octagonal Steel Utility Poles For Telecommunication System Q235 3-12mm



Terms and Conditions



1. Price Term: EXW, FOB, CFR or CIF.

The price includes pole shaft, base plate, cross arm and anchor bolt.

Shipping seaport: Shanghai Seaport.

Please provide drawings if you have so that we can calculate the accurate price for you.

We also provide design according to your requests, if you don't have drawings.



2. MOQ: One 40FT Container.



3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.



4. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.



5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients requirement.


Please feel free to contact us!


Hot Dip Galvanized Utility Steel Tubular Pole for Electrical Power Transmission and Distribution Line, Telecommunication System.pdf
