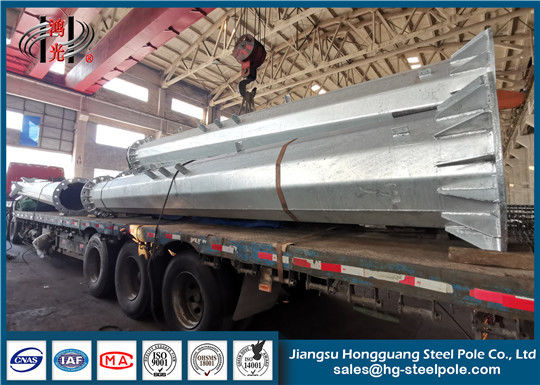

Direct Buried Steel Electrical Pole For Power Distribution Equipment Sheet Metal Fabrication

Direct Buried Steel Electrical Pole For Power Distribution Equipment Sheet Metal Fabrication

    • Direct Buried Steel Electrical Pole For Power Distribution Equipment Sheet Metal Fabrication
    • Direct Buried Steel Electrical Pole For Power Distribution Equipment Sheet Metal Fabrication
  • Direct Buried Steel Electrical Pole For Power Distribution Equipment Sheet Metal Fabrication

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Application: Electrical Power Transformer Substation Shape: Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, Etc),Tubular, Tapered
    Thickness: 3.0mm Material: Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55,etc
    Once Forming: 16m Once Forming Without Joint Packing: Plastic Waven Wrap For Painting Section
    Welding: Welding Of Substation Structure Complies With AWS D1.1 Standard. Life Period: More Than 25 Years, It Is According To Installing Environment

    Direct Buried Steel Electrical Pole for Transmission Lines Sheet Metal Fabrication for Power Distribution Equipment

    Product Description:

    Steel Electric Pole are non-standard, and normally designed according to its actually project, the affected factor including pole load, wind speed, wire type, etc

    The Steel Electric Pole price is based on its specification, like say different design with different price, normally depend on pole diameter, material, thickness, qty, etc



    Product Specification:

    Products
    • Direct Buried Steel Electrical Pole for Transmission Lines Sheet Metal Fabrication for Power Distribution Equipment
    Application
    • Electrical Power Transformer Substation
    Voltage Grade
    • 11KV-220KV
    Once Forming
    • 16m Once forming without joint
    Thickness
    • 3mm
    Welding
    • According to AWS D 1.1, CO2 welding or submerged arc auto methods
    Joint
    • Joint with insert mode, flange mode.

    Advantages

    • Easy Installation and Maintenance

    Product Advantages:

    A. Management team: We have a professional design team to provide services for customers. Provide design drawings.

    B. ISO 9001:2008 certificate provided .

    C. QC Inspection: We have an inspector team to inspect the whole production line, and each pole should be inspected in accordance with the drawing, to make sure all poles are passed before delivery.

    Direct Buried Steel Electrical Pole For Power Distribution Equipment Sheet Metal Fabrication

    Application Scope:

    Steel electric pole mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

    Packaging&Shipping:

    Our poles as normal are covered by Mat or straw bale at the top and bottom and woods between the poles can avoid the damage of the galvanization on the surface of steel poles, anyway also we can follow clients required , The loading capacity of 20GP 40HC or OT/FR will be calculated basing on the clients’ actual specification and data.


    Product process:

    All of our material are purchased from famous factory to assure the high quality.

    A factory certificate issued by the factory with stamp and signature must be provided before unloading the material in our factory , otherwise we have rights to refuse.
    Before put into production , all the material must be passed the chemical and physical analysis to make sure that they have met the requested strength and component.
    Inspection

    To assure our products qualified , we take steps as follows :

    1. Management team : We have employed the experienced senior experts to take charge of the whole management ,especially the technical management and quality management .

    2.Introducing ISO management :We are aware of ISO 9001:2008 certificate .

    3.QC Inspection :It is our company policy that all the finished products should be inspected by our specialized QC in every manufacture step and before each shipment

    Design and Detail

    Lofting and designing software :We have transmission power pole designing software which can help us design all kinds of steel poles ,at the same time ,the TMA and LMA are adopted by us to design the drawing accurately

    Project

    We have completed many big and important projects all over the world and win the trust from our clients.
