Q420 H35m RAL Painted Tubular Steel Flood Light Pole With Lifting System

Q420 H35m RAL Painted Tubular Steel Flood Light Pole With Lifting System

    • Q420 H35m RAL Painted Tubular Steel Flood Light Pole With Lifting System
    • Q420 H35m RAL Painted Tubular Steel Flood Light Pole With Lifting System
  • Q420 H35m RAL Painted Tubular Steel Flood Light Pole With Lifting System

    Product Details:

    Place of Origin: China
    Brand Name: JSHG
    Certification: ISO/CNAS/IAF/CA
    Model Number: HG-SP

    Payment & Shipping Terms:

    Minimum Order Quantity: One 40 HQ Container
    Price: negotiation
    Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
    Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
    Payment Terms: L/C, T/T or Western Union
    Supply Ability: 3,000 Metric Tons per Month
    Contact Now
    Detailed Product Description
    Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods Material: Q420
    Name: High Mast Pole Height: 35m
    Shape: Round MOQ: 1 Set

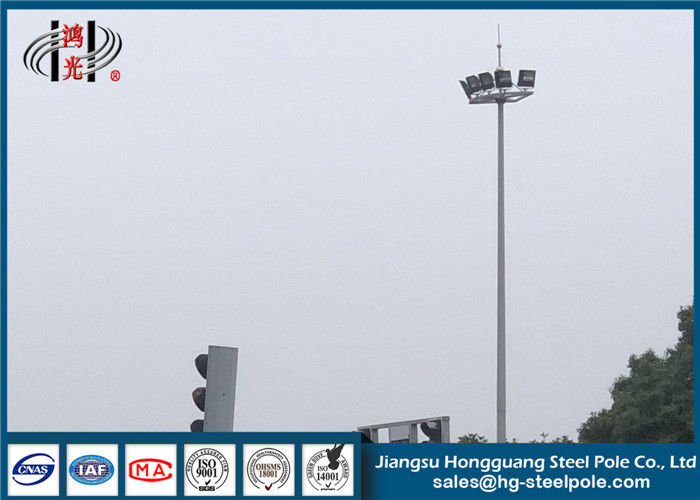

    H35m RAL Painted Tubular Steel Flood Light Pole with Lifting System Q420



    Product Specification:



    Products

    • H35m RAL Painted Tubular Steel Flood Light Pole with Lifting System Q420

    Application

    • Seaport, AirPort, Parking Lot, Stadium, Garden, etc.

    Material

    •  Q235, Minimum Yield Strength :235 MPa

    • Q345, Minimum Yield Strength :345 MPa

    Shape

    • Conical, Round,Octagonal, Tubular, Tapered

    Wind design

    • 30m/s

    Export Experiences

    • Philippines , Malaysia , Pakistan , Russia , UK , Australia , Ghana , Angola , Tanzania , Slovakia , New Zealand , Sierra Leone , Bangladesh , Maxico , Nigeria , Republic of the Congo , etc,

    Appearance Treatment

    • Hot-dip galvanized / Powder Coated

    Welding Technique

    • Automatic submerged arc welding

    Production Process

    Flow Chat

    • Raw material test→ Cutting →Bending →Forming Operation→Seam Welding → Fittings Welding → Welding Inspection(UT/RT) →Pre-assemble for Semi-finished Products →Galvanizing (Measure Zin-Coating) → Straightening→ Pre-assemble for Finished Products → Packing &Delivery

    Life Period

    • More than 25 years, it is according to installing environment

    Once Forming

    • 16m Once forming without joint



    Product Description:

    We could design and produce different kinds of custom tapered and polygonal high mast light pole according to customers' requirements. All high mast light poles are hot dip galvanized and could be powder coated and painted as per customers’ requests which allows more than 25 years' life period.
    The high mast light pole have different types, we can install all the lights in one direction or install in a circle direction. Also, it can use the lifting system or fixed ladder, We can design it as your request.

     The raising-and-lowering system is the core part of the raising-and-lowering galvanized steel high mast flood lighting pole so that guarantees the safety and reliability of operating.The raising-and-lowering system mainly consists of lighting rod, closed mast-top assembly, latching mechanism, crown, steering assembly, bumper, cables, winch, motor, lighting control cabinet, raising-and-lowering control cabinet and so on.


    Q420 H35m RAL Painted Tubular Steel Flood Light Pole With Lifting System



    Product Advantage:

    • Low Overall Cost
    • Easy Installation and Maintenance
    • Weather Resistance
    • Anti-corrosion
    • ODM & OEM are available
    • Capable to Handle Volume Orders
    • Provide Professional Design by Our Experienced R&D Engineers


    Trade terms:


    1. Price Term: EXW, FOB, CIF. Our price includes pole shaft, base plate, cross arm and anchor Bolt. Shipping seaport: Shanghai Seaport.
    2. Minimum Order Quantity: 1 sets.
    3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment.
    4. Package: Plastic paper .
    5. Parts Design Service Period: 20 years.


    Q420 H35m RAL Painted Tubular Steel Flood Light Pole With Lifting System
