Q345 Hot Dip Galvanized Steel Poles , Transmission Line Pole 4.0mm Thickness

Q345 Hot Dip Galvanized Steel Poles , Transmission Line Pole 4.0mm Thickness

  • Q345 Hot Dip Galvanized Steel Poles , Transmission Line Pole 4.0mm Thickness
  • Q345 Hot Dip Galvanized Steel Poles , Transmission Line Pole 4.0mm Thickness
Q345 Hot Dip Galvanized Steel Poles , Transmission Line Pole 4.0mm Thickness
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Application: Power Transformation Painting: 66KV
Appearance Treatment: Hot-dip Galvanized Connection Structure: Overlap/flange Connection
Joint: Joint With Flange Mode. Shape: Conical, Round, Polygonal,etc.
Once Forming: 16m Once Forming Without Joint Thickness: 4.0mm
High Light:

electric line pole

,

metal electric pole

Q345 Hot Dip Galvanized Steel Electric Pole Steel Power Pole Sheet Metal Fabrication Electrical Poles

Product Description:

The Suspension Pole, Strain Pole, Angle Pole in Hot Dip Galvanized in Hot Dip Galvanization was designed as customer's request. For Distribution and Transmission Line use. And with Base Plate use Anchor Bolts to Install. Sections with 2 and use flange to connect each segment. The hot dip galvanized in accordance with ASTM 123 and the zinc coating at least 86 microns.

Q345 Hot Dip Galvanized Steel Poles , Transmission Line Pole 4.0mm Thickness 0

Product Specification:

Products
  • Q345 Hot Dip Galvanized Steel Electric Pole Steel Power Pole Sheet Metal Fabrication Electrical Poles
Application
  • Power Transformation
Voltage Grade
  • 66KV
Once Forming
  • 16m Once forming without joint
Thickness
  • 4.0mm
Welding
  • According to AWS D 1.1, CO2 welding or submerged arc auto methods
Base plate
  • Base plate of substation structure is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization

  • Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

Product Advantages:

1). Short Construction Cycle
2). Low Overall Cost
3). Easy Installation and Maintenance
4). Weather Resistance
5). Anti-corrosion
6). More than 15 Years Design & Manufacture Experience
7). Capable to Handle Volume Orders
8). Provide Professional Design by Our Experienced R&D Engineers
9). Rich Exporting Experience



Application Scope:

Steel electric pole mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.

Packaging&Shipping:

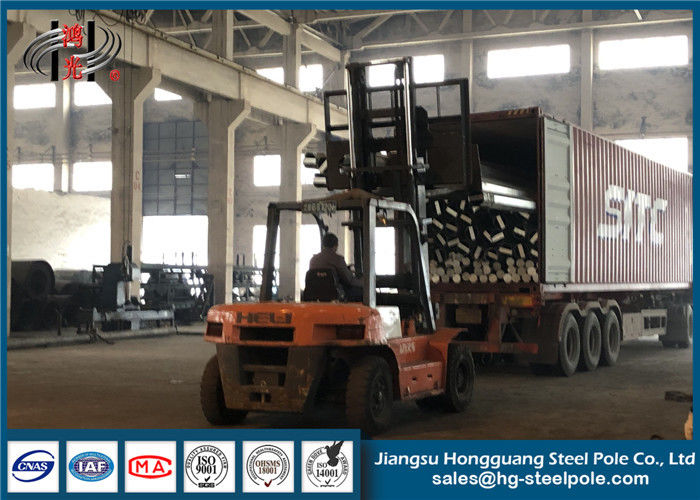

Our poles as normal are covered by Mat or straw bale at the top and bottom and woods between the poles can avoid the damage of the galvanization on the surface of steel poles, anyway also we can follow clients required , The loading capacity of 20GP 40HC or OT/FR will be calculated basing on the clients’ actual specification and data.

Features:

1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 25mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 110KV to 220kv

9. Easy install and maintenance.
