Powder Painting 69kv 45FT SS400 High Tension Electric Power Pole

Powder Painting 69kv 45FT SS400 High Tension Electric Power Pole

  • Powder Painting 69kv 45FT SS400 High Tension Electric Power  Pole
Powder Painting 69kv 45FT SS400 High Tension Electric Power  Pole
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP-110KV
Payment & Shipping Terms:
Minimum Order Quantity: One 40 HQ Container
Price: negotiation
Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time: 2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Material: Q235/SS400 Welding Technique: Automatic Submerged Arc Welding
Surface Treatment: Hot Dip Galvanizing And Powder Painting Anti-wind Capacity: 36.9m/s
Coating Layer Thickness: ≥100um Steel Pole Height Options: 3.5m~15m
Keyword: Steel Electric Pole
High Light:

SS400 high tension electric pole

,

45FT high tension electric pole

,

69kv electrical power pole

69kv 45FT SS400 Steel Electric Pole For Transmission Line

  • Material: High-quality steel Q235/SS400 from BAOSTEEL Group
  • Welding Technique: Automatic submerged arc welding
  • Surface Treatment: Hot-dip galvanizing and powder painting
  • Welding Standard: GB11345 Grade II
  • The thickness of Zinc Coating:≥ 86um
  • Adhesive Force of Zinc Coating: GB2694-88
  • Anti-wind Capacity: 36.9m/s
  • Anti-corrosion Lifetime: ≥20 years
  • Coating Layer Thickness: ≥100um
  • Adhesive force: GB9286-880 Hardness ≥2H
  • Steel Pole Height Options:3.5m~15m
  • Street Lighting Poles Type Options: Conical, polygonal





Specifications:

Height (m) Diamention (mm) Thickness (mm) Flange size (mm)
6 60/140 2.75 240*240*12
7 60/170 3 280*280*12
8 70/180 3 280*280*14
9 70/170 3.5 300*300*16
10 70/170 3.5 300*300*16



Height
25FT~70FT
Suit for
Electric Power Transmission and Distribution/ Steel Tower Pole
Shape
Polygonal
Material
Normally :
Q235B/ASTMA36/ENS235JR,Yeild Strength≥235MPa;
Q345B/ASTMA572/ENS355J2, Yeild Strength≥345MPa
Power Capacity
10kV to 220kV
Tolerance of the dimension
According to client’s requirement
Surface treatment
Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
Joint of Poles
Slip joint, flanged connected
Standard
ISO9001:2008
Length of per section
Within 14M once forming
Welding Standard
AWS(American Welding Society)D 1.1
Thickness
2~30mm
Production Process
Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface
clean-galvanization or power coating /painting-recalibration-packages



Welding

  1. Welding complies with AWS D1.1 standard.
  2. CO2 welding or submerged arc auto methods
  3. No fissure, scar, overlap, layer or other defects
  4. Internal and external welding makes the pole more beautiful in shape
  5. If customers need any other requirements of welding, we also can make adjustment ad your request

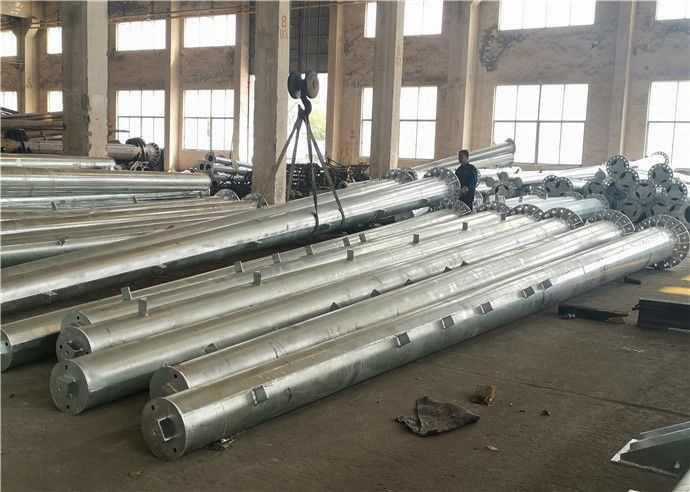

Powder Painting 69kv 45FT SS400 High Tension Electric Power  Pole 0



Engineering and Design Management:

“Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
