Distribution Equipment Electrical Galvanized Steel Pole With Bitumen Painted

Distribution Equipment Electrical Galvanized Steel Pole With Bitumen Painted

  • Distribution Equipment Electrical Galvanized Steel Pole With Bitumen Painted
  • Distribution Equipment Electrical Galvanized Steel Pole With Bitumen Painted
Distribution Equipment Electrical Galvanized Steel Pole With Bitumen Painted
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Application: Distribution Line Shape: Polygonal
Appearance Treatment: Hot-dip Galvanized Mark: Nameplate
Voltage: 10KV Life Period: More Than 25 Years, It Is According To Installing Environment
High Light:

galvanised steel pole

,

hot dip galvanized pole

Distribution Equipment Electrical Galvanized Steel Pole With Bitumen Painted



Product Description:






Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with the best quality.



After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.





1. Steel materials conform to Q235, Q345 , Q460, etc


2. Welding: Welding complies with CSA and AWS, AWS D1.1 standard. The welders have got corresponding
certificate after testing and inspection.

3. Finish: Hot-dip galvanized in accordance with ASTM A123.

4. Pole Height: 20M

5. Pole Shape: Polygonal Tapered

6. Type: Straight Pole, Tensile Pole, Turn Pole (Double-loop corner pole, Single or double loops/circuit pole,
single or double tensile/terminal/straight pole, etc)


7. Resistant: Against earthquake of 8.8 grade. Wind speed as design.


8. Quality Standard: ISO9001:2008, AAA credit rating, etc

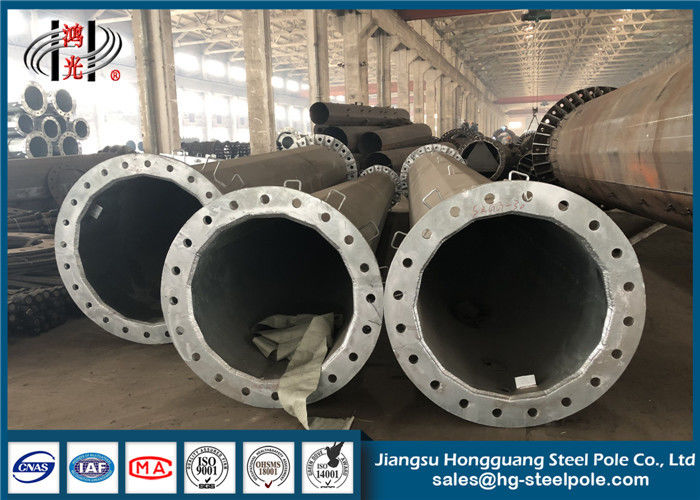

Distribution Equipment Electrical Galvanized Steel Pole With Bitumen Painted 0



Pole Accessories:





1. Pole Shaft
2. Top Cap
3. Base Plate
4. Butt Strip Plate
5. CrossArm
6. Anchor Bolts
7. Grounding Nut & Bolts
8. Name Plate
9. Climbing Rungs
10. Template
11. Bituminous Painting if needed



Product Specification:



Products
  • Distribution Equipment Electrical Galvanized Steel Pole With Bitumen Painted
Welding
  • Welding of galvanized steel power pole complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • Internal and external welding makes the galvanized steel power pole more beautiful in shape

Base plate

  • Base plate of substation structure is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.



Material Test:


1. All of our materials are purchased from famous mill factory to assure the quality.


2. A mill certificate issued by the mill factory with stamp and signature must be provided before unloading the material in our factory;


3. Before putting into production, all the material must pass the chemical and physical analysis to make sure that they have met the requested strength and components.
