Conical Hot Dip Galvanized Steel Pole ISO9001 Standard Q345 35FT

Conical Hot Dip Galvanized Steel Pole ISO9001 Standard Q345 35FT

  • Conical Hot Dip Galvanized Steel Pole ISO9001 Standard Q345 35FT
  • Conical Hot Dip Galvanized Steel Pole ISO9001 Standard Q345 35FT
Conical Hot Dip Galvanized Steel Pole ISO9001 Standard Q345 35FT
Product Details:
Place of Origin: China
Brand Name: JSHG
Certification: ISO/CNAS/IAF/CA
Model Number: HG-SP
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed
Payment Terms: L/C, T/T or Western Union
Supply Ability: 3,000 Metric Tons per Month
Contact Now
Detailed Product Description
Material: Q345 Q235 Q460 Shape: Octagonal
Appearance Treatment: Hot Dip Galvanized Connection Structure: Overlap Connection
Certificate: ISO9001-2008 Life Period: More Than 25 Years, It Is According To Installing Environment
High Light:

hot dip galvanized pole

,

galvanized light pole

Conical Hot Dip Galvanized Steel Pole ISO9001 Standard Q345 35FT



Product Description:



Material:
we just only choose qualified & famous steel manufacturer's products to make sure our product's quality. Any material was found the defects,then all the rest materials which purchased together with it will be refused and forbidden to be receipt by the warehouse.





Welding:
we welding the steel poles with auto submerged-arc welding and auto welding with perfect welding line and good quality,we strickly control the test of the welding by the flaw testing with ultrasonic crack detection to make sure there is no crack,undercut,slag inclusion,hole vent for the welding.



Product Specification:



Products
  • Conical Hot Dip Galvanized Steel Pole ISO9001 Standard Q345 35FT
Application
  • Electrical Power Transformer Substation
Product Process
  • Raw material test → Cutting→Bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages



Once Forming
  • 11.9m Once forming without joint
Advantage
  • Short Construction Cycle
  • Less Land Occupation
  • Low Overall Cost
  • Easy Installation and Maintenance
  • Weather Resistance
  • Anti-corrosion

Shape

  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered





NEA Standard poles 25FT, 30FT, 35FT, 40FT,45FT:



Height

(ft)

Thickness

(mm)

Butt Diameter

(mm)

Tip Diameter

(mm)

Design Load

(kg)

Yield Stress

(MPA)

Zinc Coating

(microns)

25 2.5 152 120 300 345 86
30 3.0 226 127 500 345 86
35 3.0 248 127 500 345 86
40 3.0 317 127 500 345 86
45 3.0 328 127 500 345 86

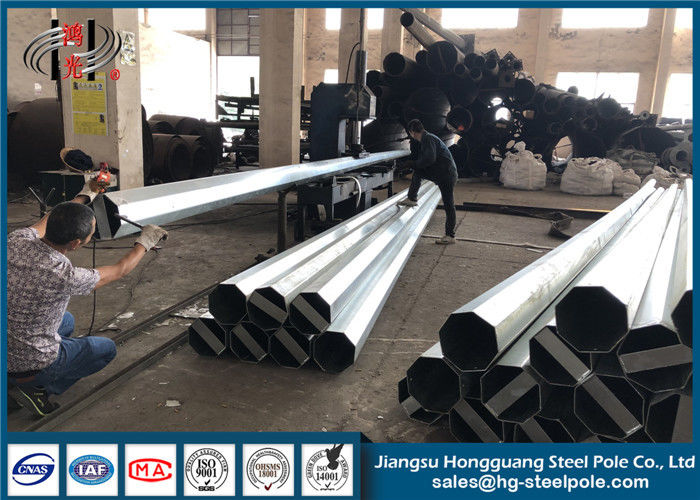

Conical Hot Dip Galvanized Steel Pole ISO9001 Standard Q345 35FT 0



Pole Accessories:





1. Pole Shaft
2. Top Cap
3. Base Plate
4. Butt Strip Plate
5. CrossArm
6. Anchor Bolts
7. Grounding Nut & Bolts
8. Name Plate
9. Climbing Rungs
10. Template
11. Bituminous Painting if needed





Contact Us:

Jiangsu Hongguang Steel Pole Co., Ltd.
Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212
Telphone: +86 510 878 441 56
Fax: +86 510 878 435 28
Trade manager ID: cnhgsteelpole
Skype: tangjia870124

Company youtube link: https://youtu.be/C9sHcnm3RKI

Please feel free to contact us!
