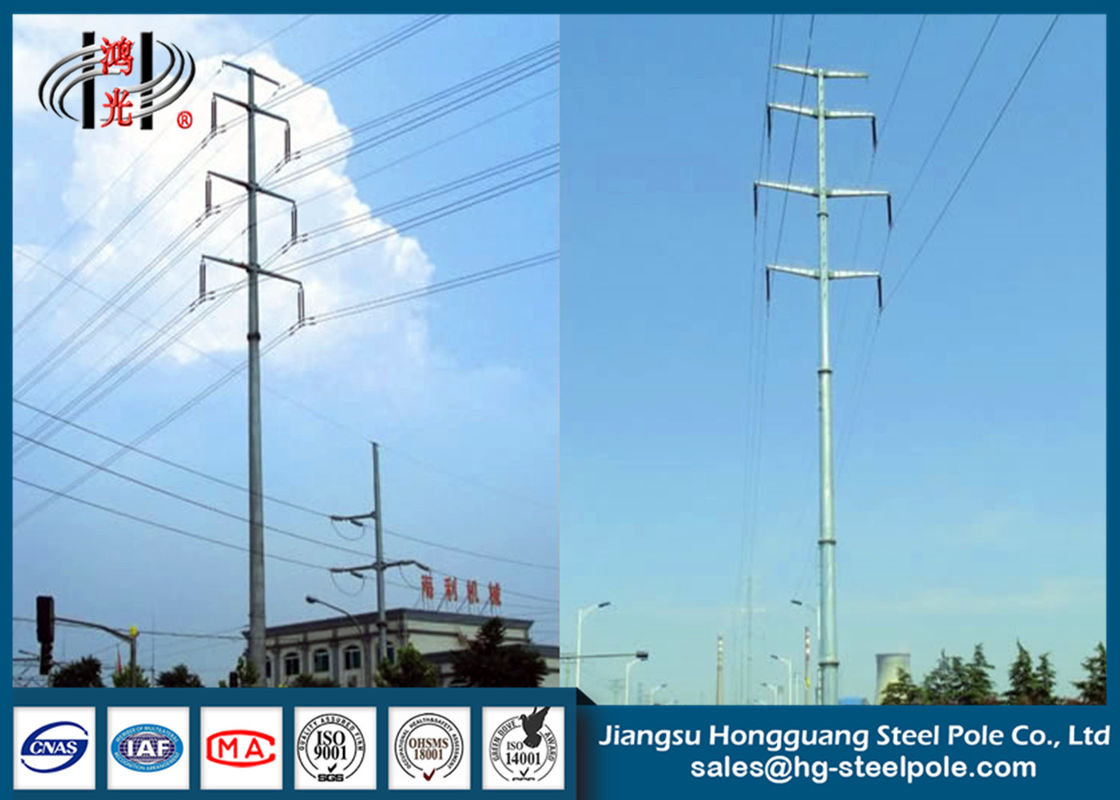

H50m Q345 Hot Dip Galvanized Power High Voltage Pole with Cross Arms
  • H50m Q345 Hot Dip Galvanized Power High Voltage Pole with Cross Arms

H50m Q345 Hot Dip Galvanized Power High Voltage Pole with Cross Arms

Place of Origin China
Brand Name JSHG
Certification ISO/CNAS/IAF/CA
Model Number HG-SP-110KV
Product Details
Application:
Electrical Power Transmission And Distribution Line
Appearance Treatment:
Hot-dip Galvanized / Painting
Material:
Hot Roll Steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, Etc.
Wall Thickness:
2~30mm
Galvanization:
Chinese Standard GB/T 13912-2002 And American Standard ASTM A123
Life Period:
More Than 25 Years
High Light:

electrical power poles

,

electrical transmission poles

Payment & Shipping Terms
Minimum Order Quantity
One 40 HQ Container
Price
negotiation
Packaging Details
* Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.
Delivery Time
2 weeks per container after PO / drawing / prepayment confirmed
Payment Terms
L/C, T/T or Western Union
Supply Ability
3,000 Metric Tons per Month
Product Description

H50m Q345 Hot Dip Galvanized Power High Voltage Pole with Cross Arms

Specifications:

Application

  • Electrical Power transmission and distribution line

Type

  • Suspension Pole, Tensile Pole, Strain Pole , Angle Pole, Dead-end Pole, etc.

Voltage Grade

  • 10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )

Shape

  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

Material

  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material

Once Forming

  • 16m Once forming without joint

Welding

  • Welding complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding makes the pole more beautiful in shape
  • If customers need any other requirements of welding, we also can make adjustment ad your request

Joint

  •  Joint with insert mode, flange mode.

Base plate

  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization

  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

Advantages

  • Short Construction Cycle
  • Less Land Occupation
  • Low Overall Cost
  • Easy Installation and Maintenance
  • Weather Resistance
  • Anti-corrosion
  • ODM & OEM are available
  • Capable to Handle Volume Orders
  • Provide Professional Design by Our Experienced R&D Engineers



Description:

Our steel poles, being manufactured from steel sheet that has been subjected to hydraulic pression and longitudinal welding, has a tapered tubular structure with a multilateral cross section. To achieve a proper height, steel poles can be assembled by insert mode or flange mode at the installation site.

The hot dip galvanization technique could protect steel pole from corrosion for as long as 50 years.


As an alternative to the traditional wood and concrete poles, our hot dip galvanized steel pole could be utilize to bear the conductors and electric distribution equipment, power transmission equipment, cables, etc.


Quality Control Management



H50m Q345 Hot Dip Galvanized Power High Voltage Pole with Cross Arms 0

H50m Q345 Hot Dip Galvanized Power High Voltage Pole with Cross Arms 1


JSHG has passed the ISO9001 quality management system. Besides, it processes professional physical and chemical inspection lab and is equipped with X-ray detection system, ultrasonic detection system, screen display universal testing machine, photoelectric emission spectrum analyzer, as well as carbon
and sulfur microcomputer analyzer etc.
Meanwhile, it has formed a scientific and strict quality management system, which effectively and strictly guarantees the quality control of products form raw material to finished products.

Engineering and Design Management



H50m Q345 Hot Dip Galvanized Power High Voltage Pole with Cross Arms 2

“Design and technology,professional and common, software and hardware” is JSHG‘s design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.
In the R&D Department, there are many experienced senior research & design staff and rigid development network, which ensure our design proposals meet customer demand, even exceed their expectations.



Since the establishment, JSHG have put forward thousands of conical pole design proposals covering several industries and fields, such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and strong technical support and service assurance.



Installation Site:



H50m Q345 Hot Dip Galvanized Power High Voltage Pole with Cross Arms 3

Packaging & Shipping:



H50m Q345 Hot Dip Galvanized Power High Voltage Pole with Cross Arms 4



Terms and Conditions:


1.  Price Term: EXW, FOB, CFR or CIF.

  • The price includes pole shaft, base plate, cross arm and anchor bolt.
  • Shipping seaport: Shanghai Seaport.
  • Please provide drawings if you have so that we can calculate the accurate price for you.
  • We also provide design according to your requests, if you don't have drawings.

 2.  MOQ: One 40FT Container.
 3.  Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
 4.  Delivery Time:  2 weeks per container after PO/drawing/prepayment confirmed.
 5.  Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients’ requirement.

 Our Services

  • Reply within 24 Working Hours
  • Factory Direct Sale
  • More than 15 Years Design & Manufacture Experience
  • Capable to Handle Volume Orders
  • High-Quality and Low-Price Products
  • Provide Professional Design by Our Experienced R&D Engineers
  • Rich Exporting Experience
  • ODM, OEM Acceptable
  • Technical Support by E-mail
  • Calling service
